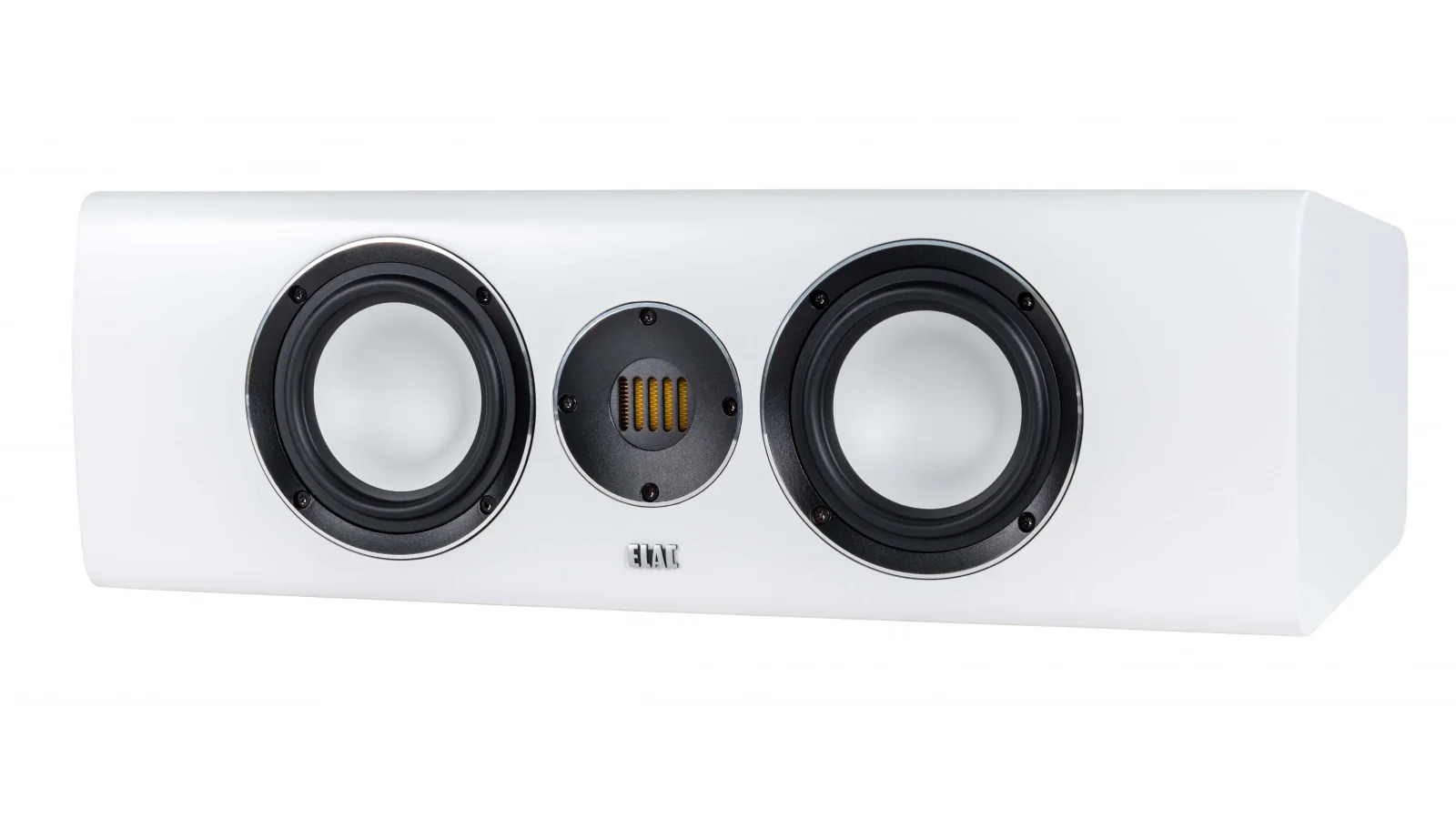

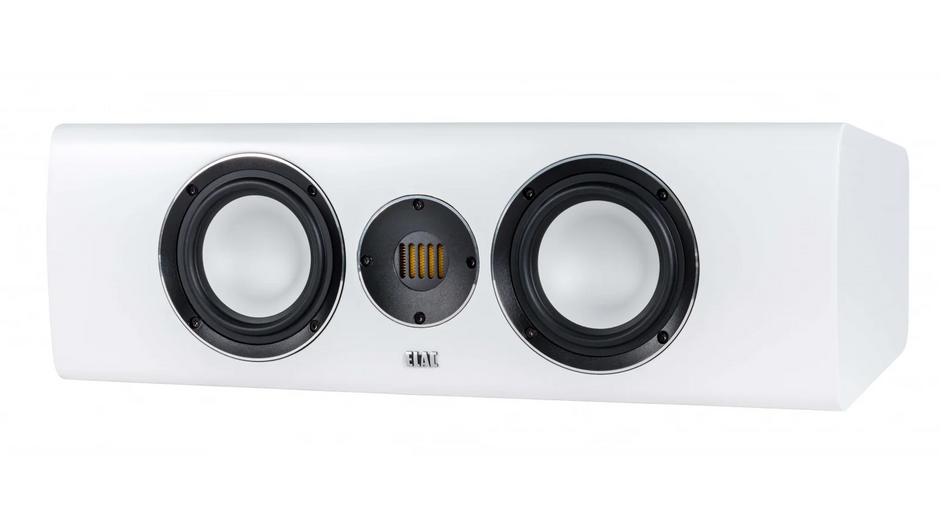

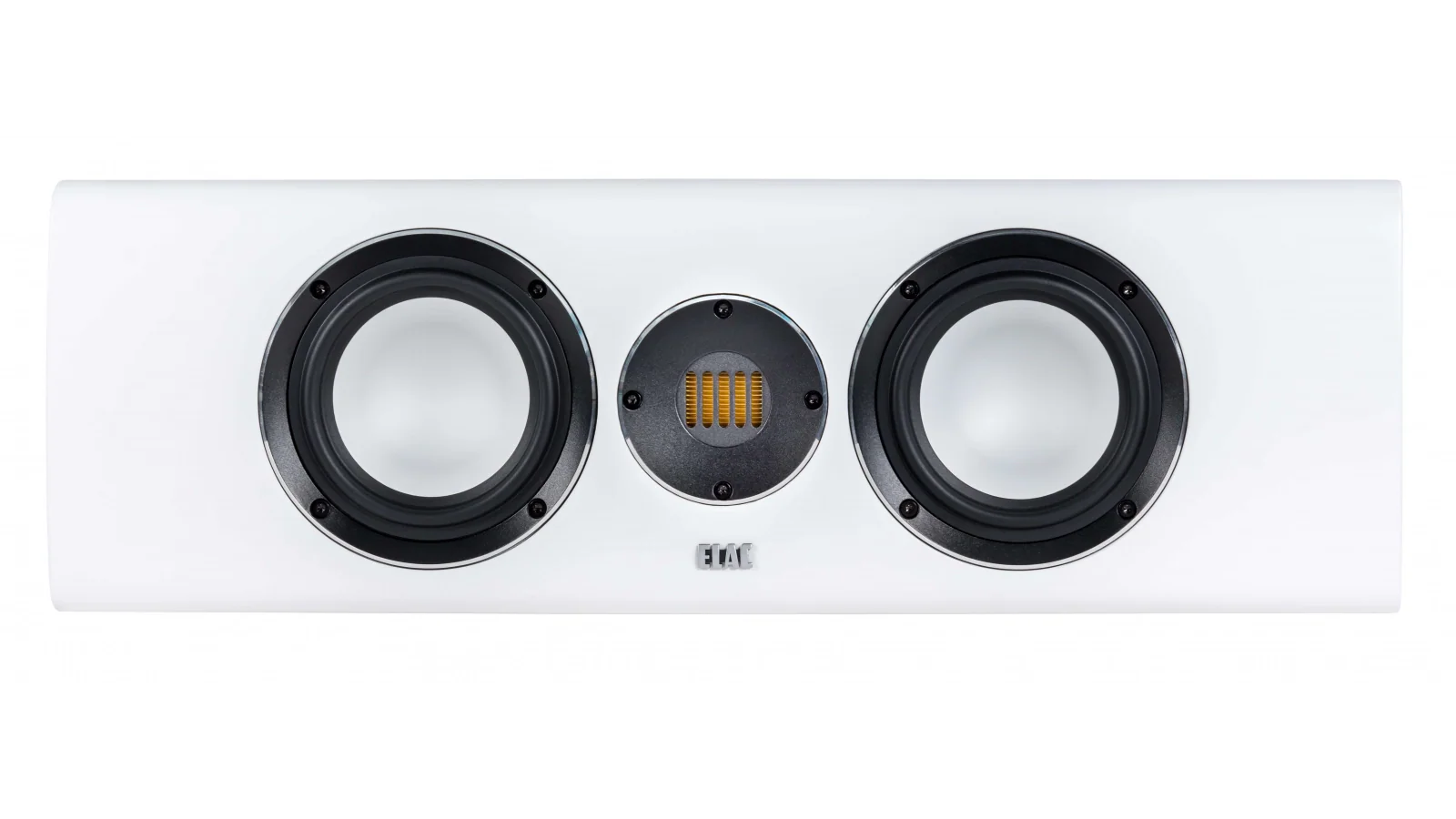

Elac 5.25" Carina Center Channel - Satin White, Each

Product Details

Welcome to a new dimension of dialogue clarity and audio precision with the ELAC Carina Center Speaker featuring the remarkable JET tweeter. Designed to excel in delivering crisp, articulate dialogue, this center speaker takes center stage in home theater setups. The JET tweeter, renowned for its precision and fidelity, ensures that every spoken word is conveyed with exceptional detail and nuance. Elevate your cinematic experience with the ELAC Carina Center Speaker, where cutting-edge technology meets acoustic excellence, creating a focal point for dialogue performance that brings your favorite movies and TV shows to life with unparalleled clarity and authenticity.

JET Air Motion Transformer Tweeter

Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.

Compound Curvature Aluminum Woofer

To complement the prowess of the JET tweeter and ensure a smooth shift from the woofer, an innovative compound curvature cone has been engineered. Its purpose is to effectively manage cone breakup, extending it far beyond the woofer's operating range. Further enhancing the speaker's capabilities, a sizeable voice coil and an oversized vented pole piece magnet have been integrated, delivering exceptional bass dynamics and a robust, powerful performance.

Acoustically Optimized Cabinets

Each Carina enclosure undergoes meticulous engineering, featuring sturdy MDF outer walls and an elegant satin painted finishes. Strategically positioned internal bracing enhances the cabinet's structural integrity, minimizing vibrations that could otherwise distort the sound and introduce unwanted coloration.

Features

Carina

Design Goals

Our goal was to build on the success of the Elac 240 series We wanted a that maintain our heritage, with a modern contemporary design yet unmistakably Elac. Our key objectives were :
• Develop new driver designs to offer differentiation
• Give some shape and add material to beautify
• Use die cast baskets with diamond cut but remove rectangular metal around driver
• Use JET Technology
• Maintain a family look
• Preserve the traditional look but modernize it

Carina

Results

We have taken our 240 series and reimagined it, bringing a modern contemporary design inspired by the Life of Sound! The simple, yet striking Carina Series, offers more than just remarkable sound.

A refined design, yet traditionally Elac

Carina

The Benefits

• Aluminum woofer with extended frequency range
• Jet Folded Ribbon Tweeter offering wide dynamic range

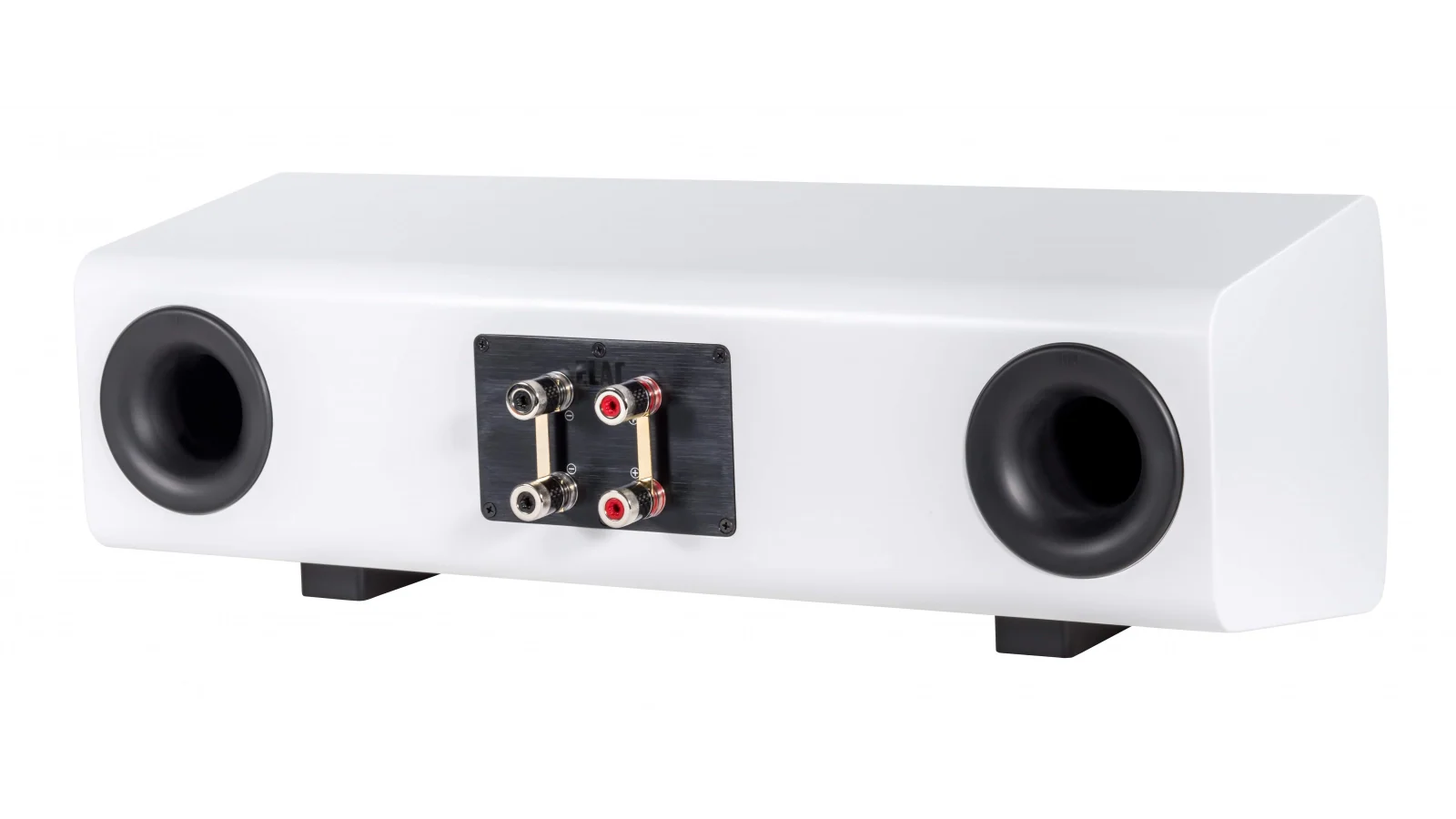

• Bi-wiring configuration to enhance midrange
• Die cast bottom plate with integrated double flanged down-firing bass port
• Convex baffle shape reducing reflections

Aluminum Woofer

Compound Curvature Cone

Utilizing a single piece cone construction with compound curvature, the cone has been optimized for extended response and pure piston operation throughout its operating range, to seamlessly blend with the JET tweeter. A rigid cast chassis supports an oversize magnet with large vented pole piece to maximize drive force, minimize non-linearity and provide increased power handling and dynamic impact.

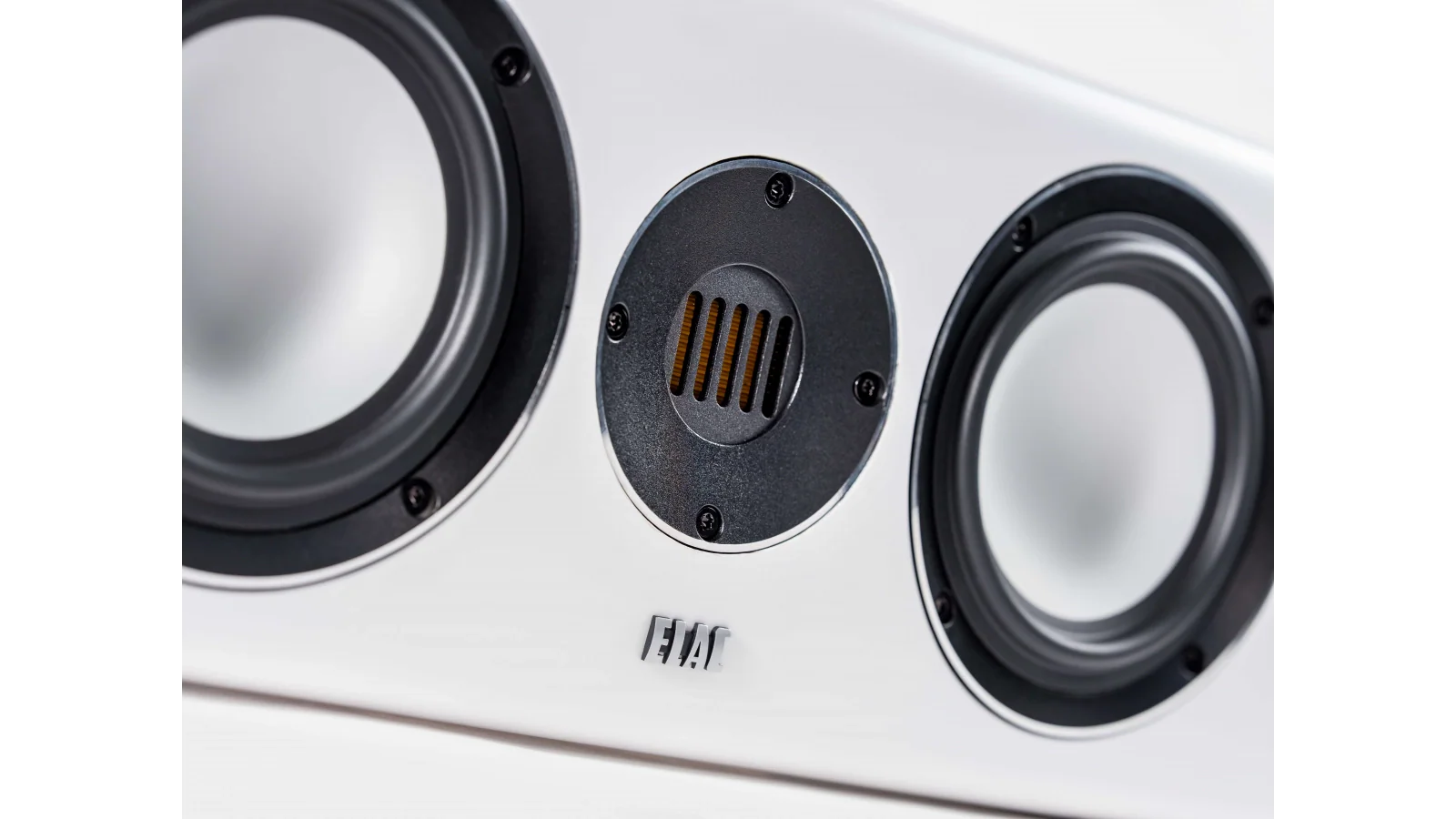

Air Motion Tweeter

JET

Delivering true high-definition sound, ELACs JET tweeters have been at the forefront of tweeter performance, providing extended high frequency response, wide directivity and high efficiency for lightning-fast response and wide dynamic range.

Downward Firing

Port

The die cast double flanged super silent bass reflex port on Carina faces downwards, exiting the bottom of the speaker cabinet to be redirected outwards, minimizing vent noise and allowing for a more flexible speaker placement.

Floor standing models have rear and down firing ports to deliver incredible low end extension

Downloads

Spec Sheet
