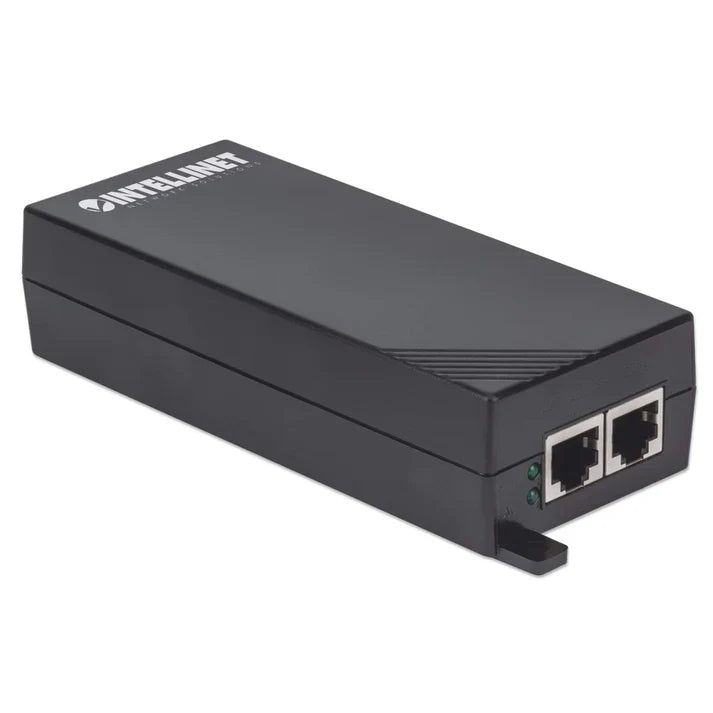

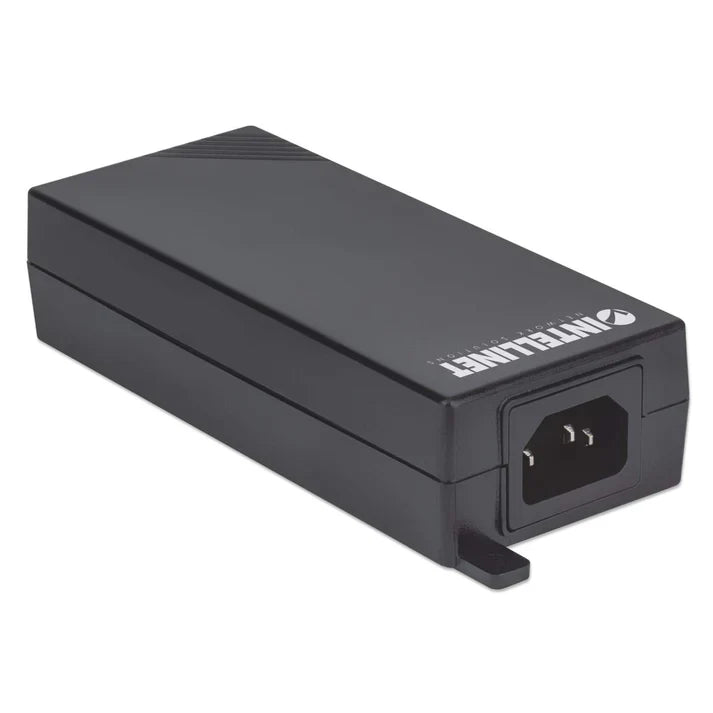

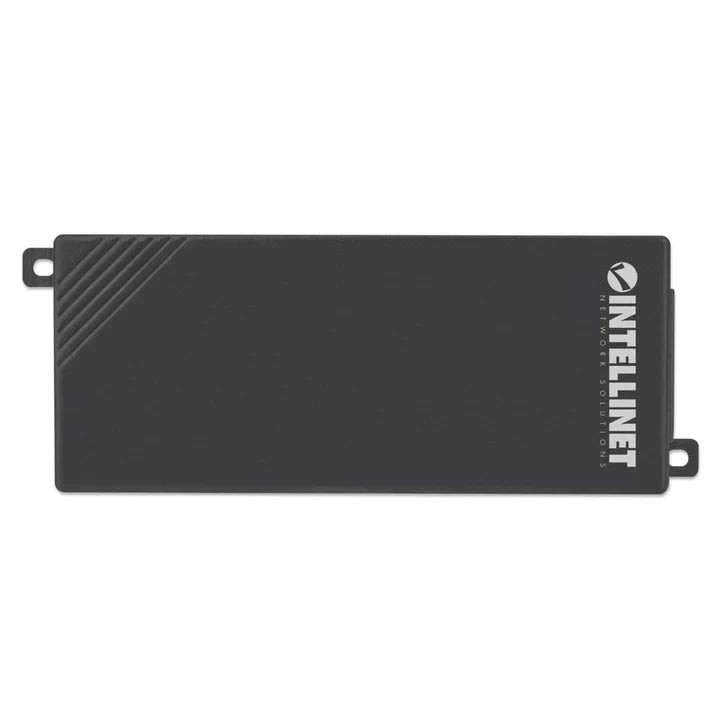

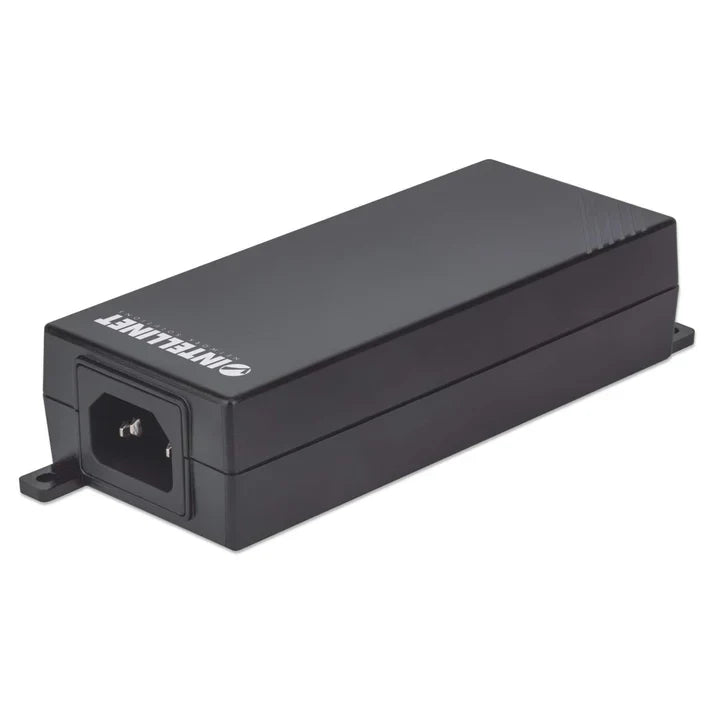

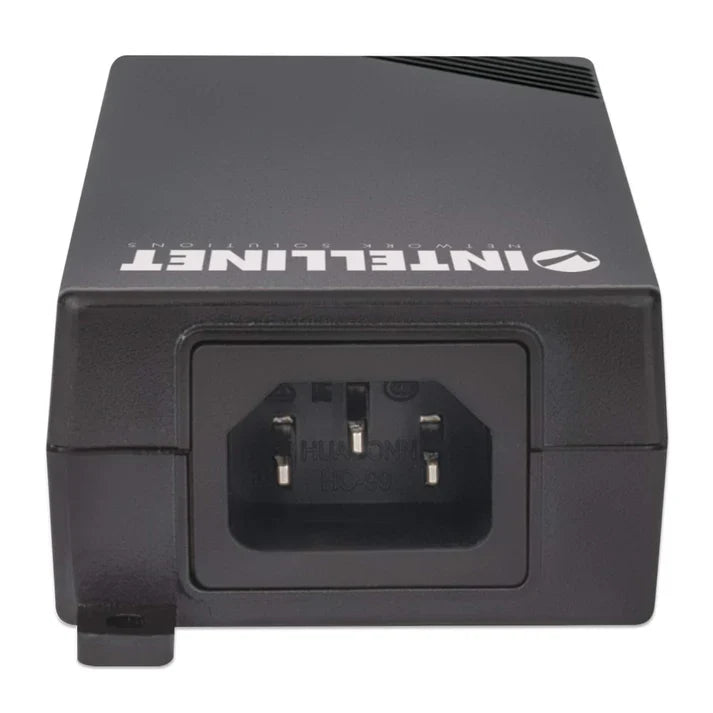

Intellinet 561518 Gigabit High-Power PoE+ Injector

Intellinet 561518 Gigabit High-Power PoE+ Injector

Product Details

1 x 30 W Port, IEEE 802.3at/af Compliant, Plastic Housing

Provide both power and data to a Powered Device (PD) using existing Cat5 cable and this PoE Injector.

The Intellinet Network Solutions Gigabit High-Power PoE+ Injector lets you connect your IEEE 802.3af/at-compliant product to a non-PoE LAN switch port. The Power over Ethernet Injector can power and supply a network connection to a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered PD. This injector has an output power rating up to 30 watts. That's enough for even power-hungry PoE devices.

Reduce Wiring Costs.

There's no need to run AC power lines to get your PD set up and ready to do what it's supposed to. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.

Protect Your Equipment.

Once DC power is connected to your networked equipment through the Cat5e/6 cabling, the Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages.

Features

• Saves time and money by delivering data and power via existing network cables
• IEEE 802.3at compliant (PoE+)
• Power output up to 30 watts
• Distance support: up to 100 m (328 ft.)
• Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras and more)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• Internal power supply
• Fanless design ideal for silent operation
• Fully NDAA-compliant
• Three-year warranty

Downloads

Spec Sheet
