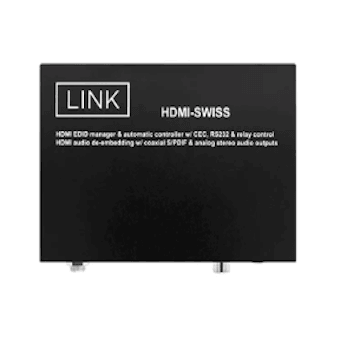

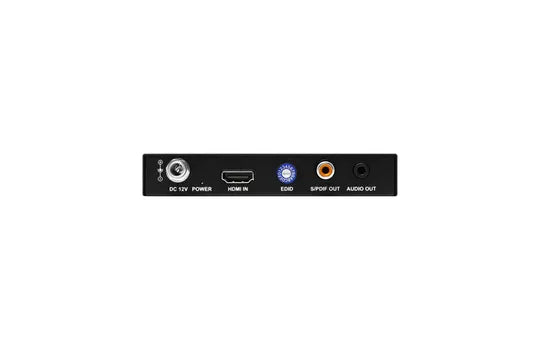

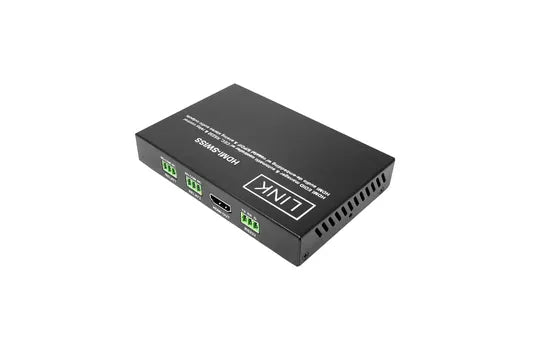

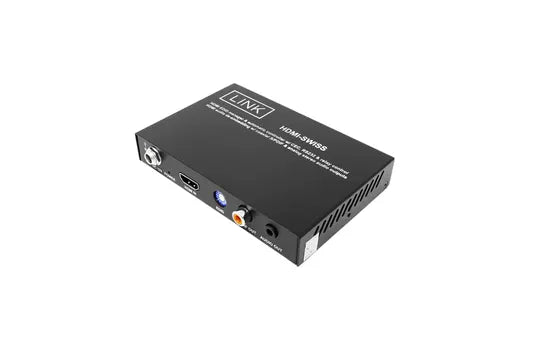

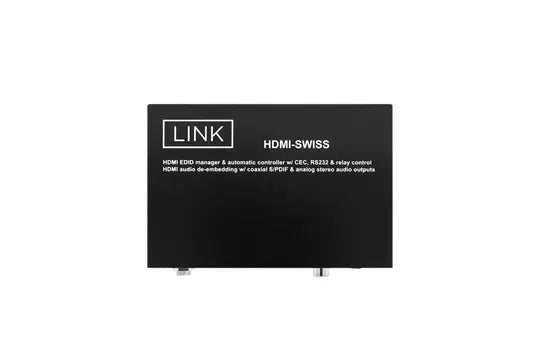

LINK HDMI-SWISS is an HDMI In-line Controller, with resolutions up to 4K@60Hz (chroma sub-sampling 4:4:4 8-bit only) and HDCP 2.2. It features de-embedded audio distribution system. And its rotary EDID switch has 15 EDID presets and can help negotiate the HDMI handshake in certain situations. It also could automatically trigger CEC command to turn on or off TV with CEC support, pre-loaded RS232 commands to power on or standby projector, and relay control to turn on or off projection screen.
Feature
- Support video source up to 4K@60Hz 4:4:4 8-bit and HDCP 2.2.
- HDMI audio de-embedded out with Digital Coaxial and Analog Stereo.
- Rotary switch for EDID Management with 15 EDID presets.
- Built in CEC controller from HDMI out.
- Built in RS232 controller, to pre-load and store RS232 command of synced device.
- Built in RELAY control to automatically turn Projector Screen ON/OFF, by detecting input signal status.
