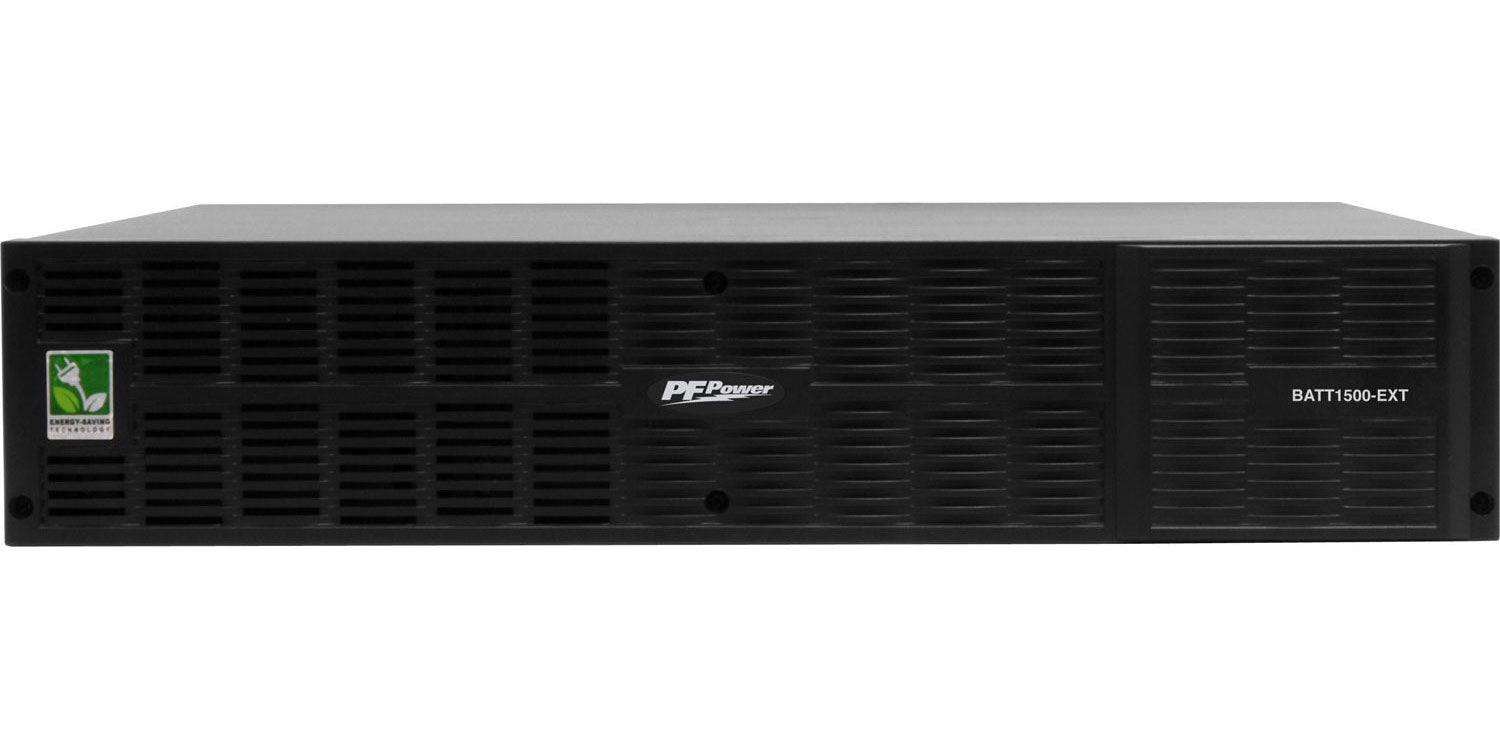

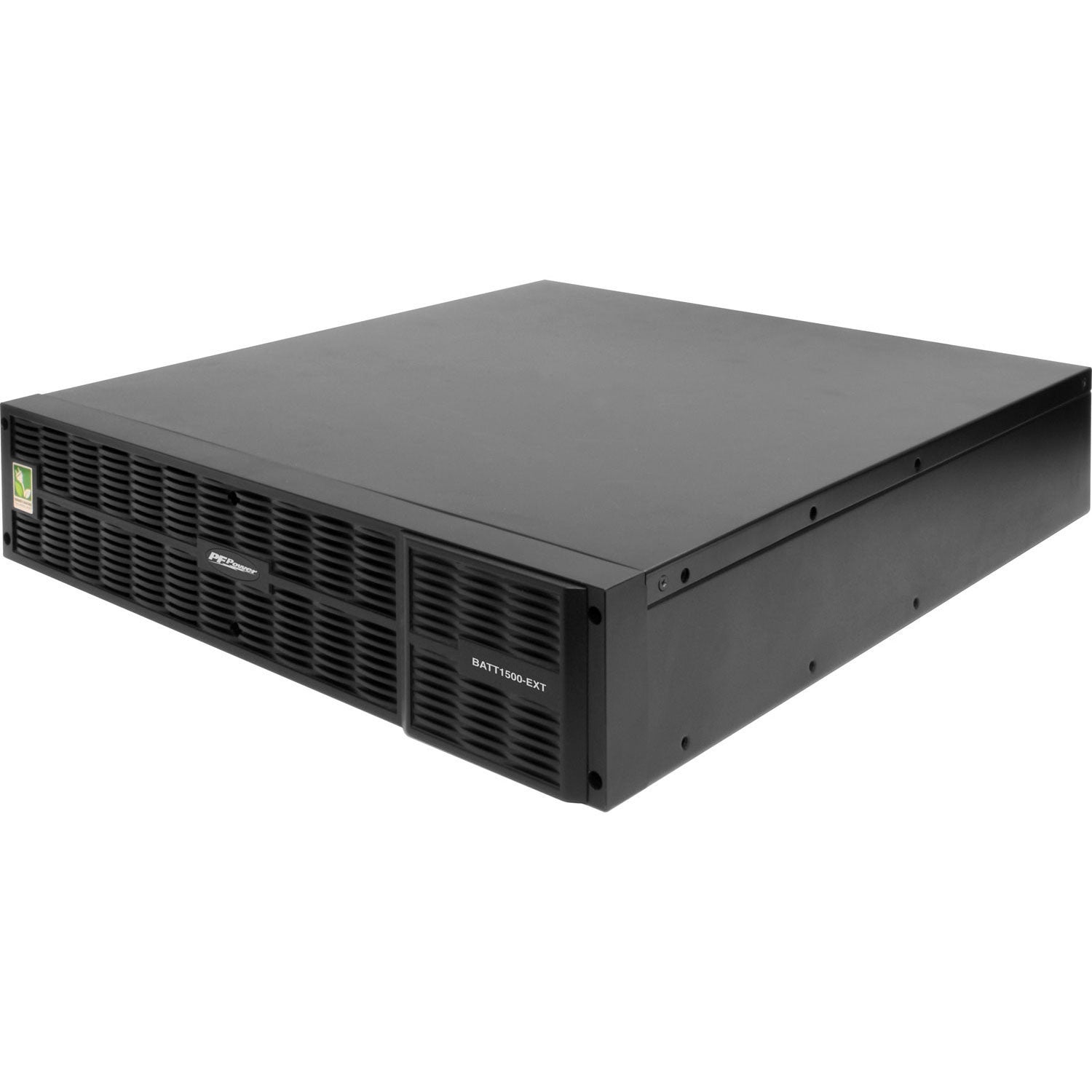

Panamax BATT1500-EXT Battery Extension Pack For F1500-UPS and MB1500

Product Details

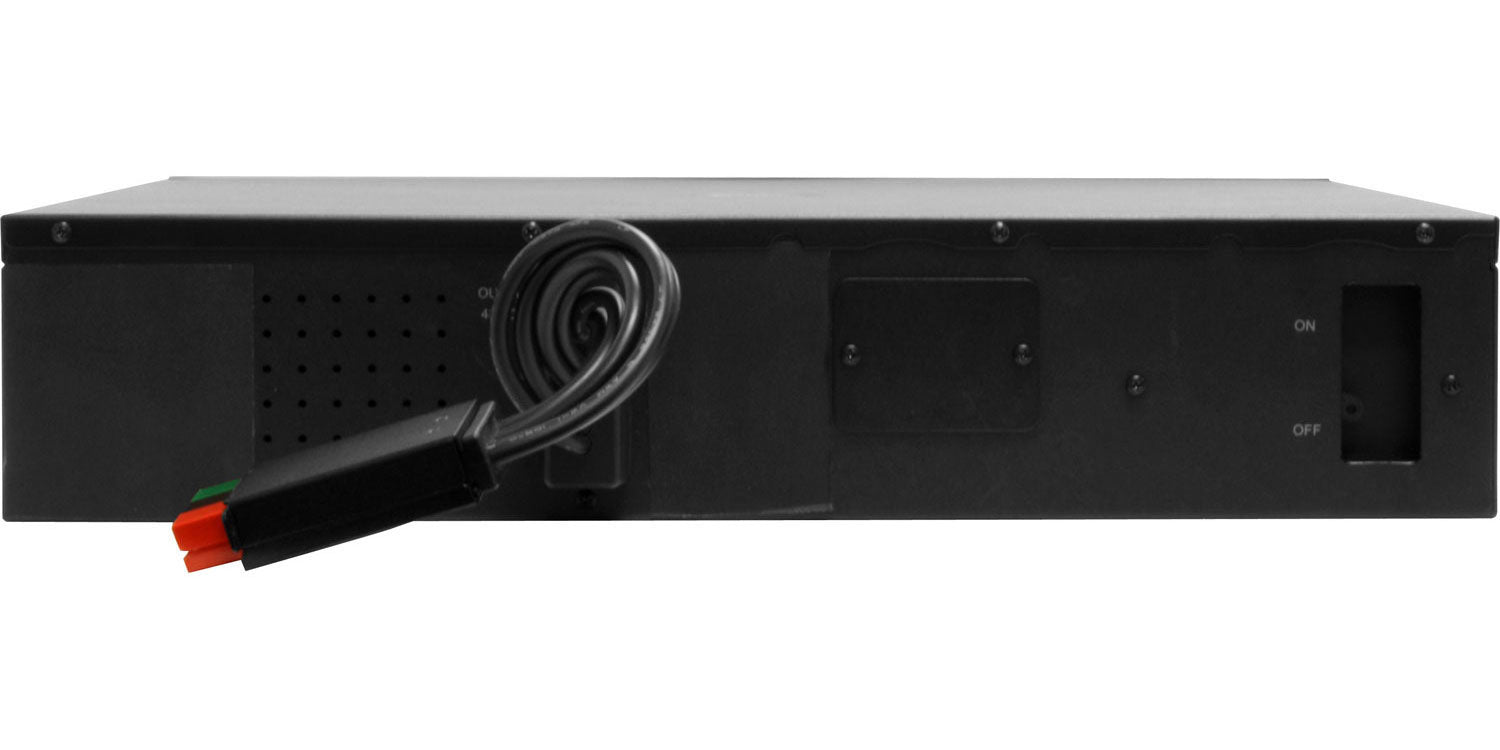

These 2U packs esthetically match the UPS’s, and can similarly be rack or tower mounted. The heavy gauge power cord is adapted with plug-n-play DC connectors for easy installation. The all metal enclosure safely houses the 8 (eight) 12V 9Ah batteries which are connected via 2 strings of 4 in serial.

Features

• Form Factor – 2U configuration supports both rack and tower mounting.
• Metal Housing – Rigid metal construction allows for placement in areas with a demanding environment.
• Power On/Off Switch – Local power switch for manual reset & control.
• Back-panel fuse – User replaceable fuse which is easily accessed from the rear panel

Specifications

User Replaceable: Yes
Typical Recharge Time: 8 hours
Replacement Battery: BB Battery – HR9-12
Hot Swappable <: Yes
Battery Type: Sealed lead acid
Battery Size: 12V/9AH
Battery Quantity: 8
Storage Temperature: 5°F to 113°F / 15°C to 45°C
Maximum Storage Elevation: 50,000 ft. / 15,000 m
Maximum Operating Elevation: 10,000 ft / 3,000 m
