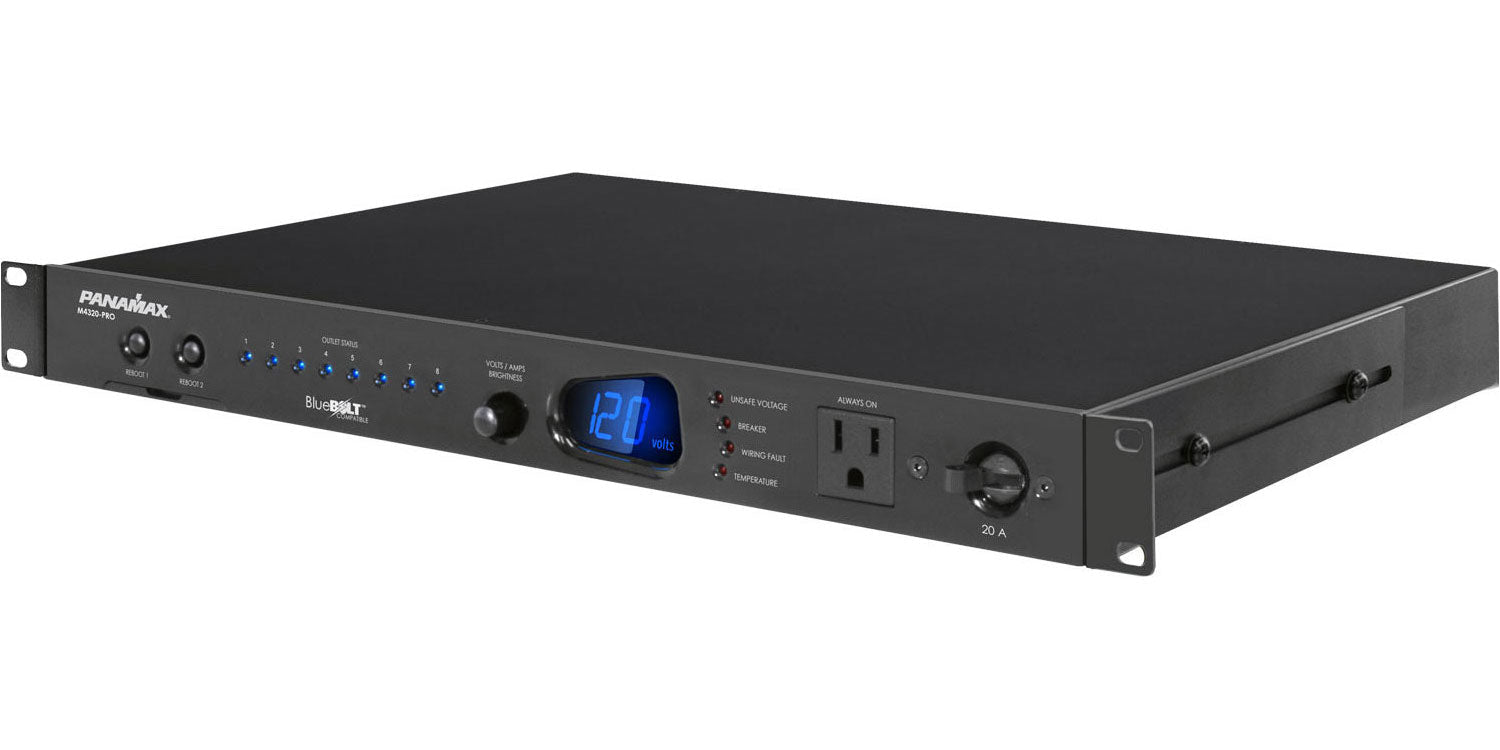

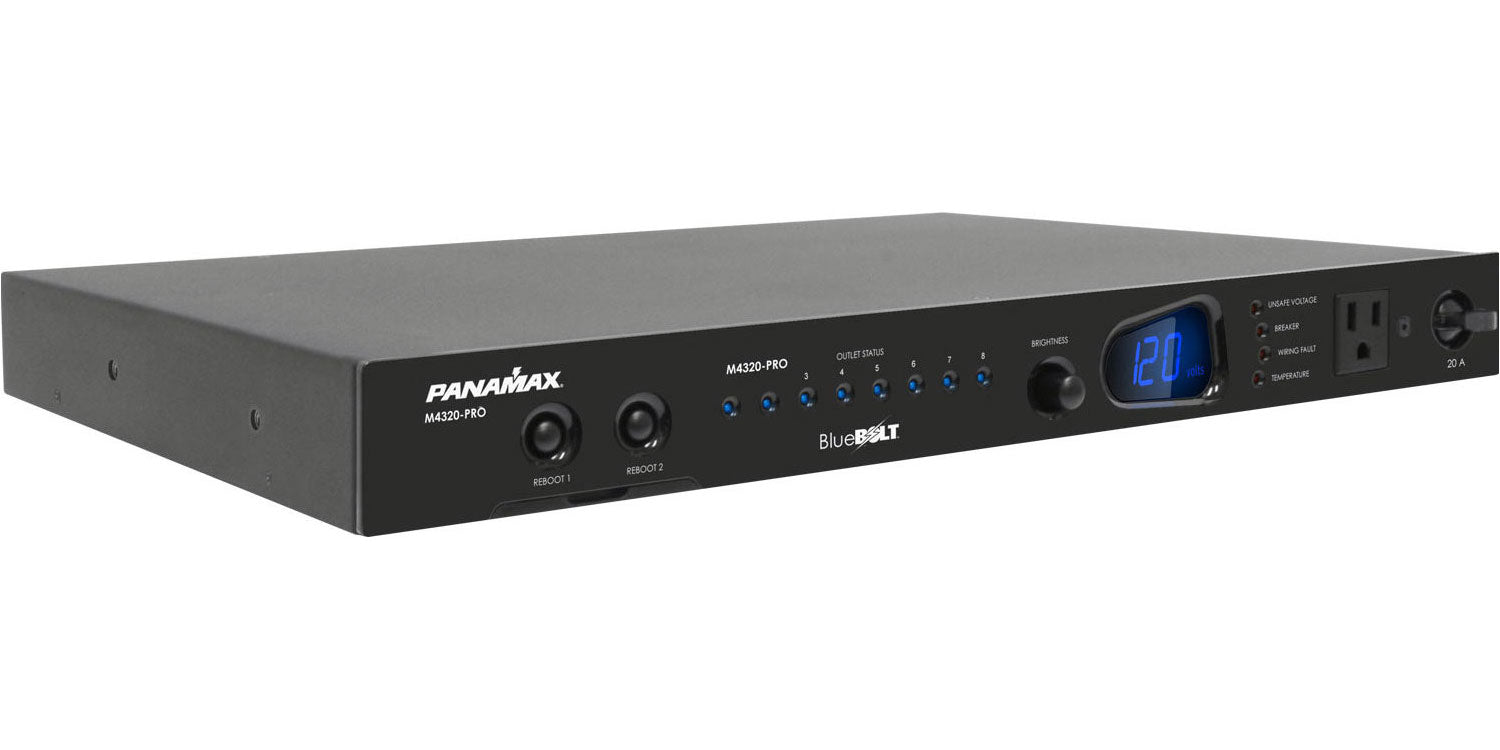

Panamax M4320-PRO 1 RU 20 AMP 8 BlueBOLT Programmable Outlets w/Auto Reset, 10Ft IEC Cord

Product Details

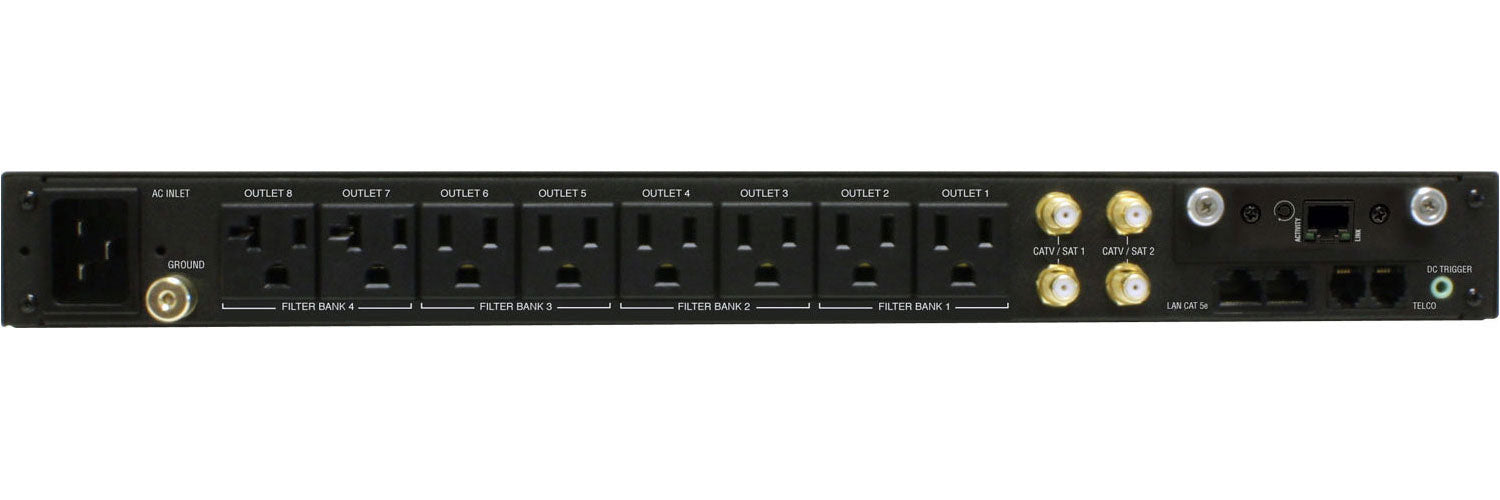

The M4320-PRO features Panamax™ revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Panamax: uncompromised AC protection and purification. Outlets: all rear panel outlets are separately controlled. They are grouped into four (4) filter-isolated banks. BlueBOLT™ is included, providing secure, hosted IP system control and monitoring for the M4320-PRO

Features

Power Management with Control System Interactive Functionality.

• 20 Amp Capacity M4320-PRO
• 8 Individually Controllable Rear Panel Outlets
• Fully Programmable
• TCP/IP (BlueBOLT™) Installed
• Linear Filtration with 3 Isolated LiFT Filter Banks, 76db (5 kHz – 250 kHz), 46 db (250 kHz – 1 MHz)
• One Isolated Filter Bank for High Current Devices, 60db (5 kHz – 450 kHz), 46 db (450 kHz – 1 MHz)
• Front Panel Circuit Breaker
• Removable Front Rack Ears
• 12 Volt Input Triggering
• Detachable 10 ft. Power Cord – 20A plug
• AVM & Protect-or-Disconnect Circuitry

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Single Pulse Energy Dissipation: 2700 Joules
Peak Impulse Current: 135,000 Amps
LAN – Wires Protected: 8-Wires
LAN – Compatibility: 10/100/1000 BASE-T
LAN – Clamping Level: 60 ± 5V
Coax – Shielded: Yes
Coax – Insertion Loss: < 0.5 dB
Coax – HD 1080 i/p Ready: Yes
Coax – Frequency Range: 0 MHz – 2.2 GHz
Coax – Connections: Female “F”, Gold Plated
Coax – Clamping Level: 75V
Coax – Bidirectional: Yes
