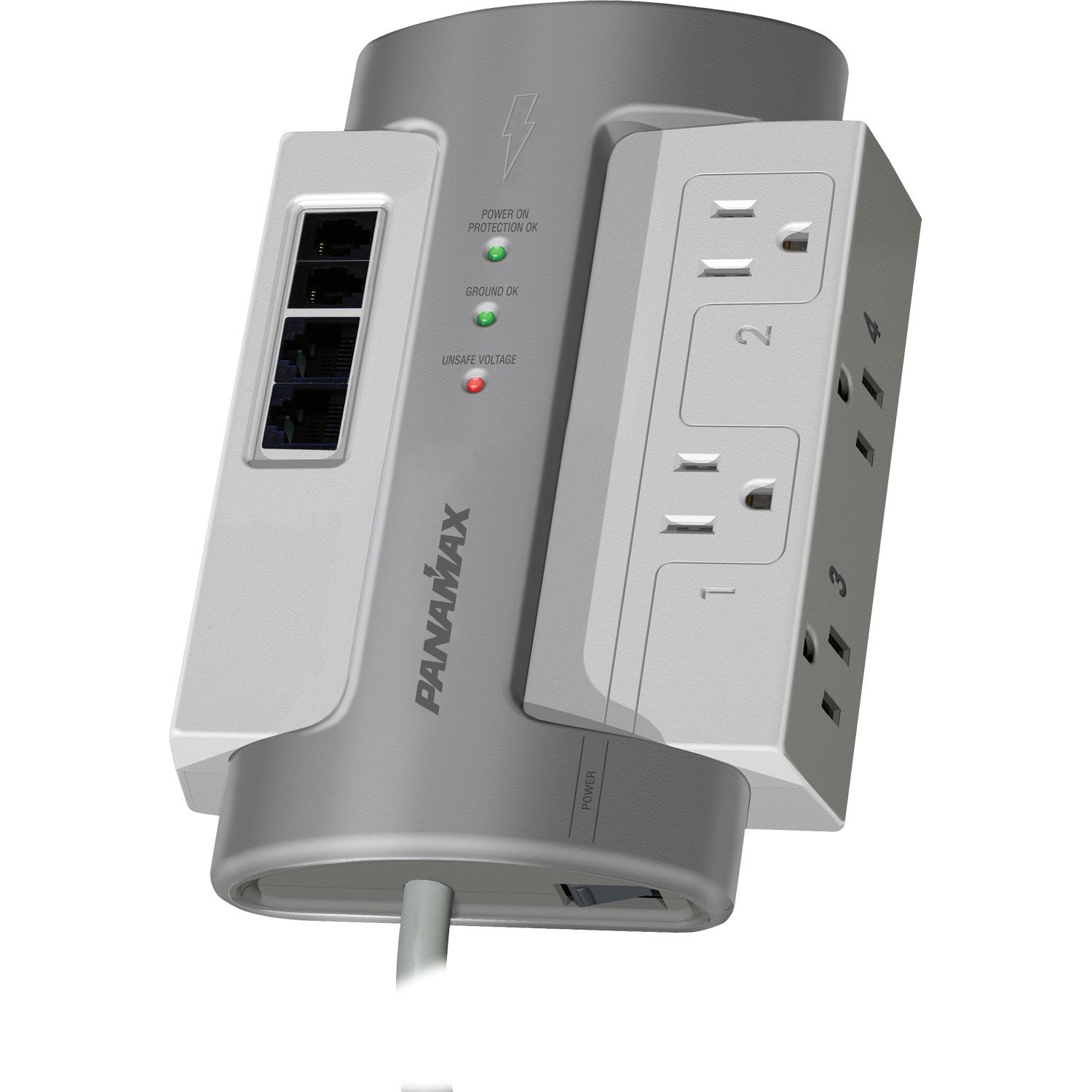

Panamax M4LT-EX Max 4 Tel and Data

Product Details

Noise Filtration/Surge Protection for All Home/Office Equipment

Features

• RJ-11 Phone line IN/OUT connectors.
• RJ-45 CAT5e IN/OUT LAN connectors.
• Power indicator LEDs.
• Four (4) protected AC receptacles with tranformer spacing
• Exceeds UL Safety Standards
• Solid-State Telephone Line Protection
• Compatibility 10/100/1000 BASE-T (CAT 5e)
• Includes DSL Phone Line Splitter
• Four AC Outlets with Transformer Spacing
• Accepts Add-on Signal Line Modules to Accomodate System Expansion

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1650 Joules
Response Time: 1ns
Peak Impulse Current: 52,000 Amps
Patented Power Management Circuit: Yes

LAN Protection
Wires Protected: Pins 1-8
Suppression Modes: Differential & Common Ground
Connectors: RJ-45
Compatability: 10/100/1000 BASE-T (CAT 5e)
Clamping Level: 62V

Telco Protection
Wires Protected: 2 wire, 1 pair (3,4)
Suppression Modes: Metallic & Longitudinal
Fuseless/Auto-Resettable: Yes
Connectors: RJ-11
Clamping Level: 260V
Capacitance: 30 pf (approx.)
