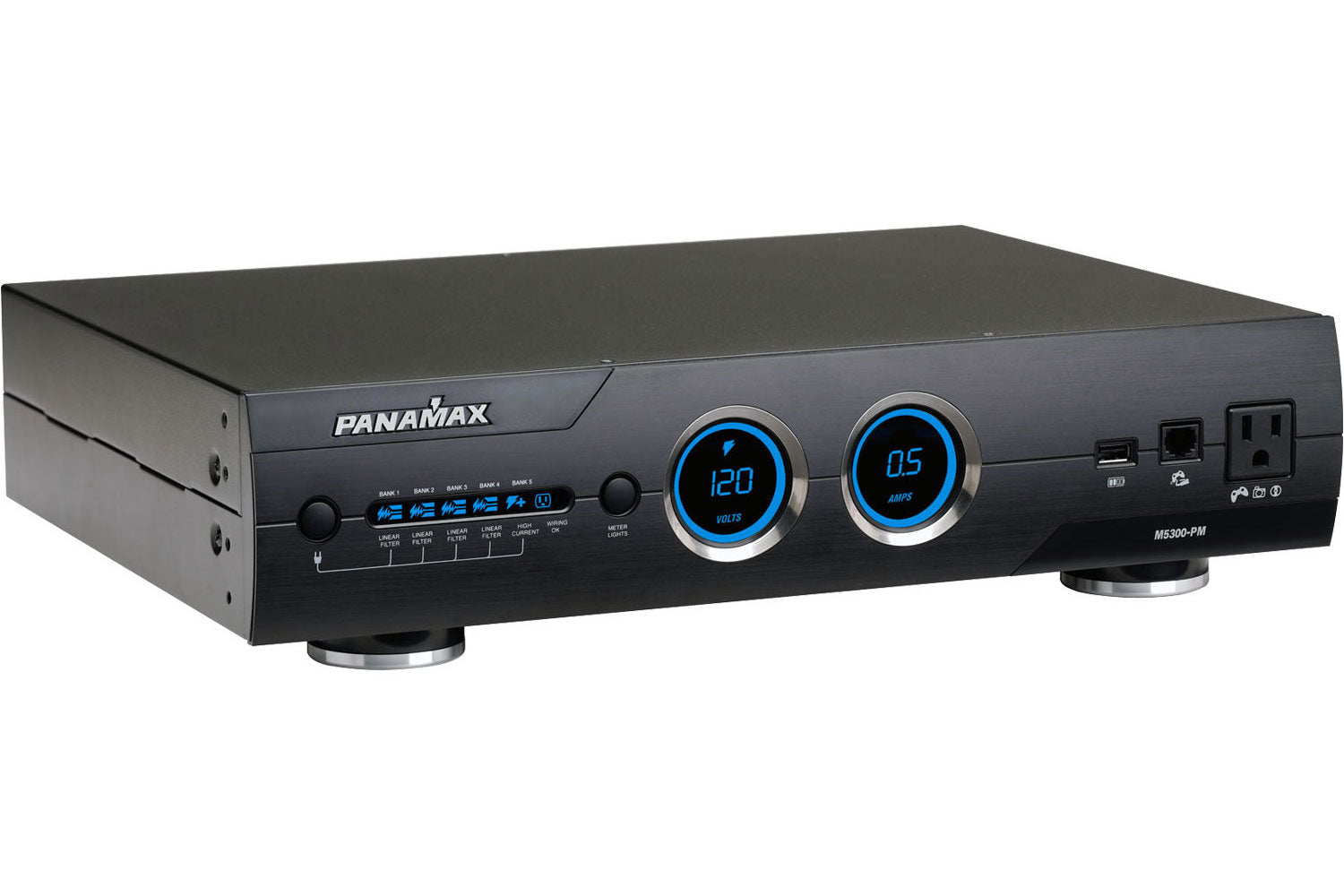

Panamax M5300-PM Max 5300 Power Management, 2RU, 11 Outlets

Product Details

Improves Picture and Sound Quality

Level 4 Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

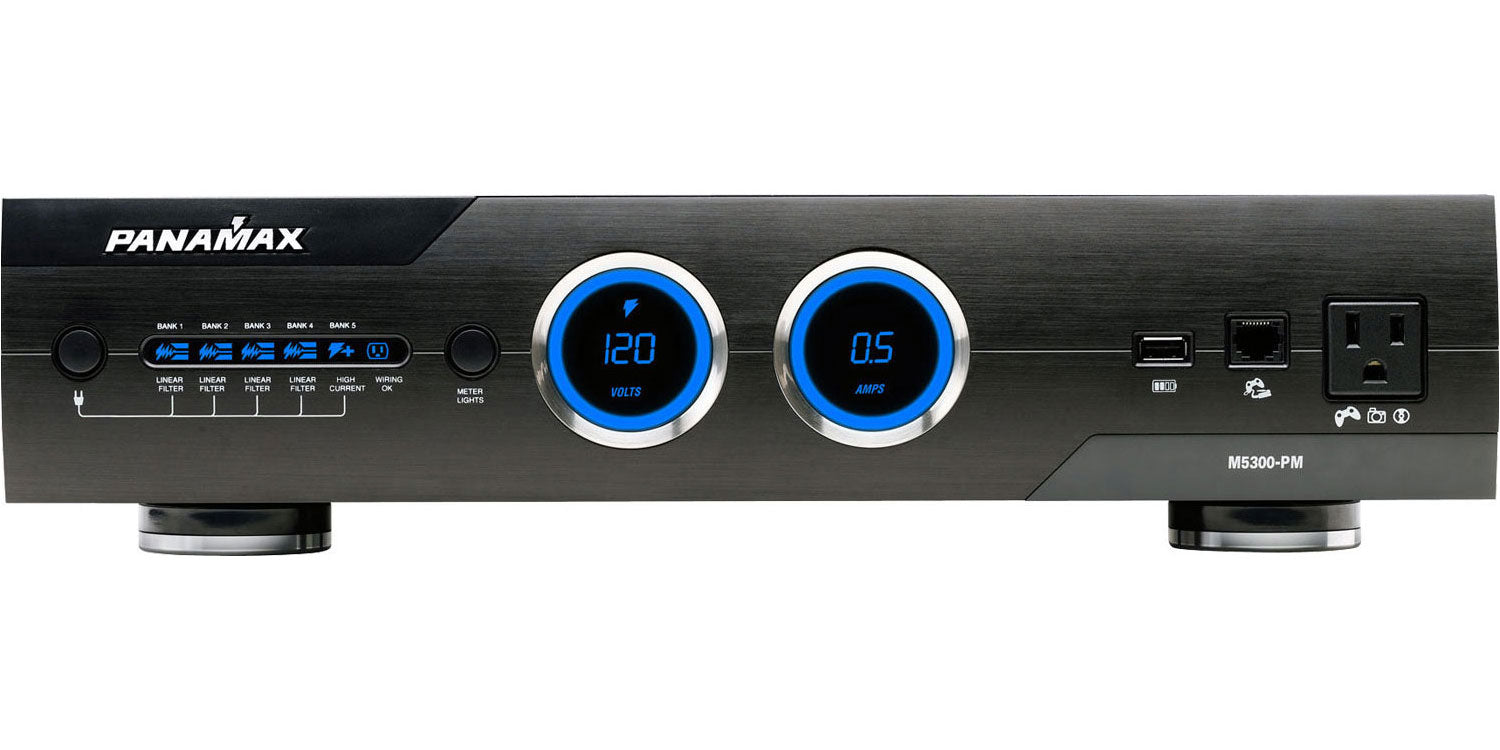

Monitors Incoming Line Voltage and Provides a Visual Indication of Power Level

Panamax™ patent pending AVM circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing red lightning bolt will be displayed in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Reduces Cross-Contamination Between Components

The M5300-PM is designed to provide noise isolation between 5 isolated outlet banks (including 1 bank with 2 high current outlets) so that any noise created by an A/V component cannot contaminate the power going to equipment plugged into another outlet bank

Features

Clean Power Level 4

Improves picture and sound quality by eliminating noise across the entire AC bandwidth. 40% more efficient at eliminating noise than Clean Power Level 3.

AVM (Automatic Voltage Monitoring)

Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.

High Current Outlets

2 outlets for equipment with high power demands (Amps/Subwoofers).

USB Charger

1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.

Gaming LAN Port

Easy access to LAN port on front panel. Perfect for online gaming.

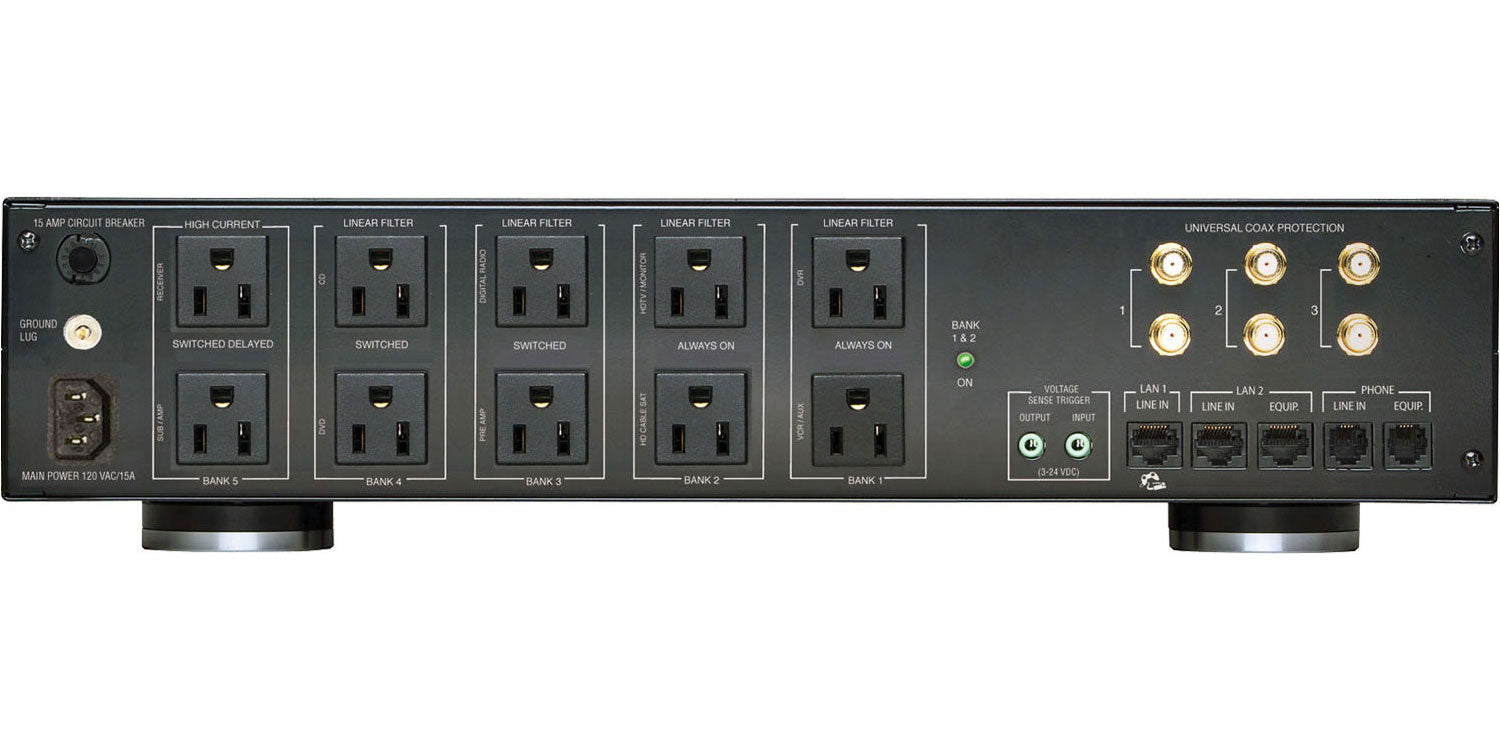

5 Isolated Outlet Banks

Isolating outlet banks from one another prevents noise contamination between components.

12 Volt Trigger

Allows source equipment to activate or deactivate the switched outlets on the M5300-PM.

Power Sequencing

Guards against blown fuses and potentially damaging speaker thump by automatically powering outlets on and off in sequence.

11 Outlets

5 Always On, 4 Switched, 2 Switched High Current.

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Single Pulse Energy Dissipation: 2125 Joules
Peak Impulse Current: 72,000 Amps
LAN – Wires Protected: 8-Wires
LAN – Compatibility: 10/100bT
LAN – Clamping Level: 60V ± 5V
Coax – Shielded: Yes
Coax – Insertion Loss: < 0.5 dB
Coax – HD 1080 i/p Ready: Yes
Coax – Frequency Range: 0 MHz – 2.2 GHz
Coax – Connections: Female ñFî, Gold Plated
Coax – Clamping Level: 75V
Coax – Bidirectional : Yes
