Panamax M5400-PM Max 5400 Power Management w/ Voltage Regulation, 2RU, 11 Outlets

Product Details

Voltage Regulation

Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.

Improves Picture and Sound Quality

Level 4+ Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

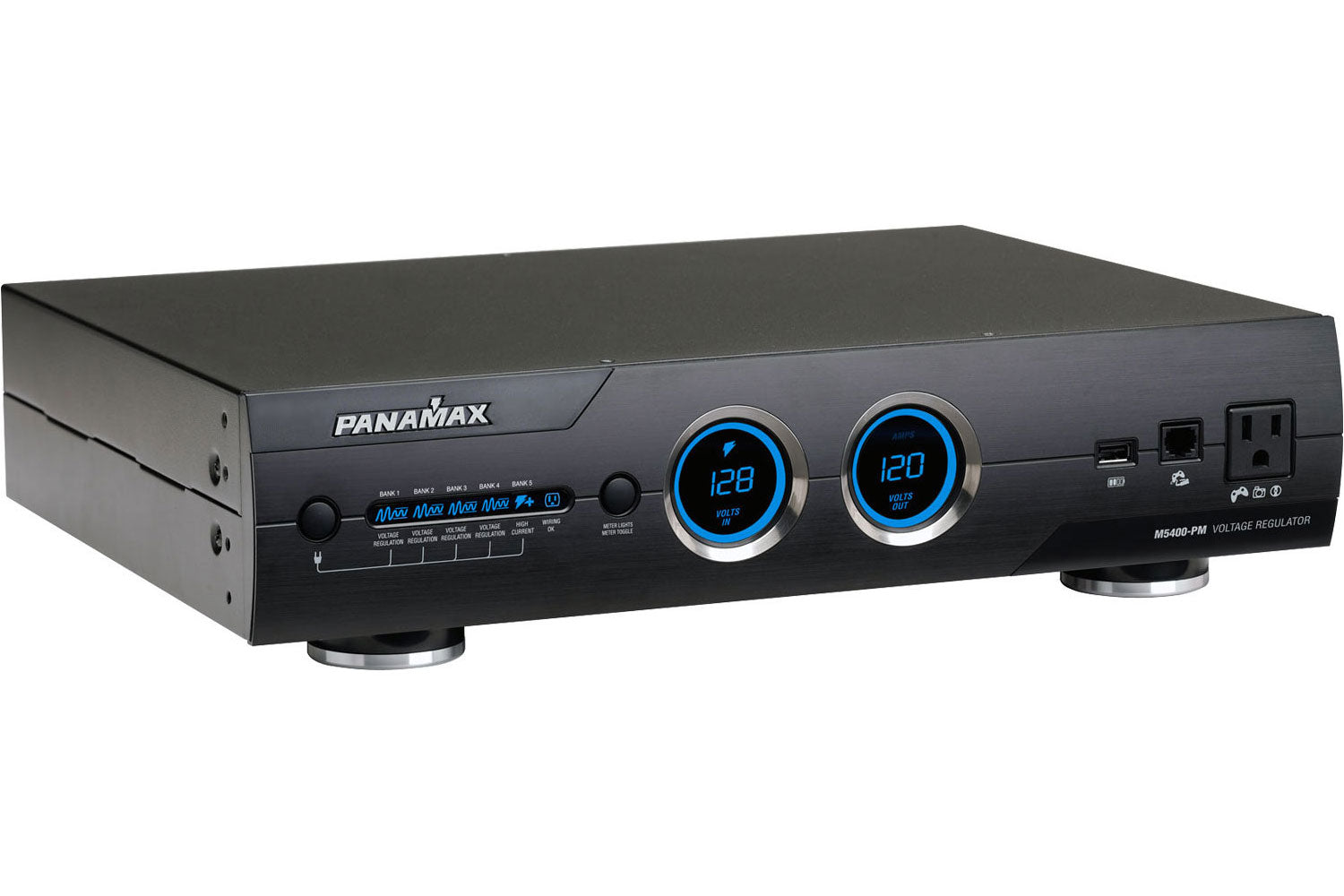

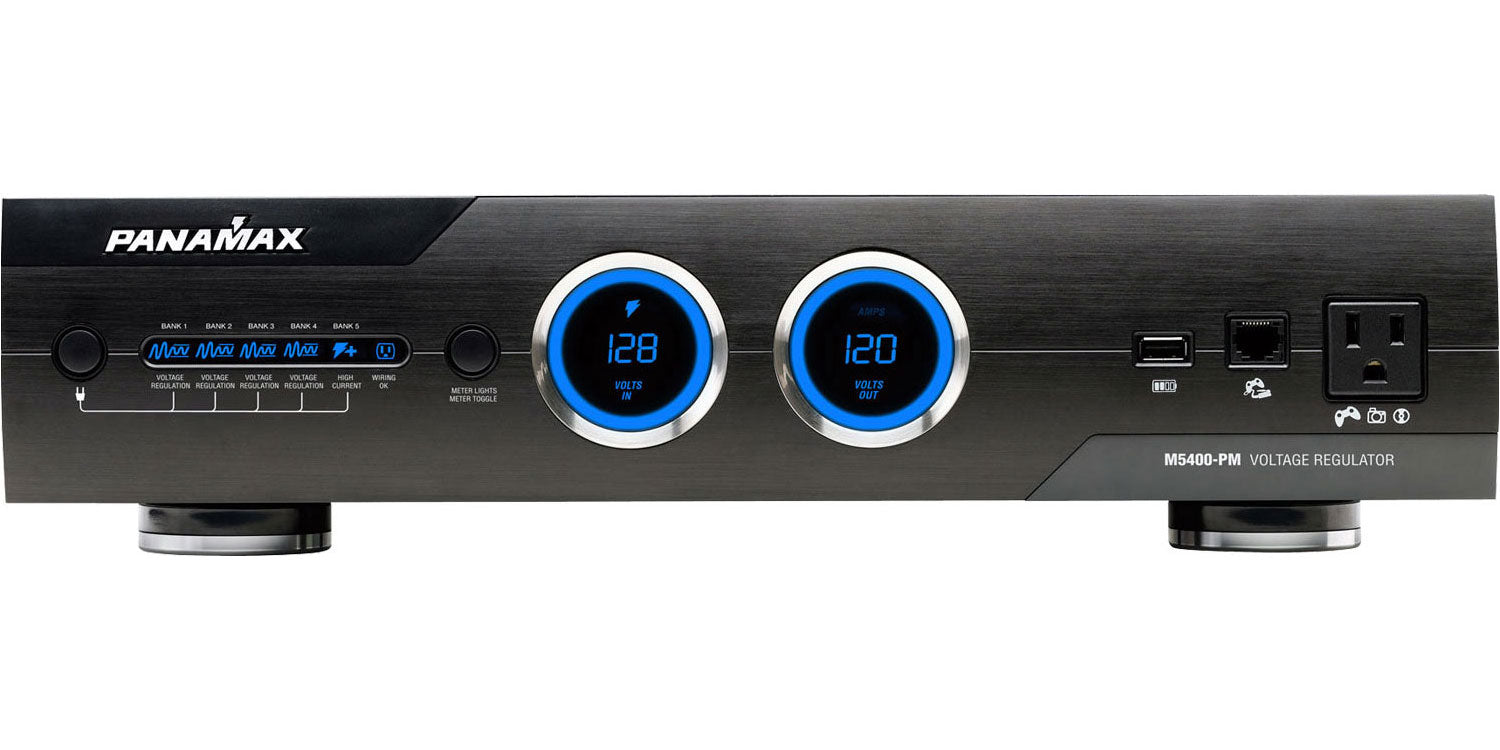

Monitors Incoming Line Voltage and Provides a Visual Indication of Power Level

Panamax™ patent pending AVM circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing lightning bolt will be displayed in red in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Reduces Cross-Contamination Between Components

The M5400-PM is designed to provide noise isolation between five isolated outlet banks including two high current outlets so that any noise created by an A/V component can not contaminate the power going to equipment plugged into another outlet bank.

Features

Clean Power Level 4+

Panamax PM family™ highest level of power filtration plus voltage regulation ensure components receive a consistent level of clean power. Improves picture and sound quality by eliminating noise across the entire AC bandwidth.

Voltage Regulation

Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.

AVM (Automatic Voltage Monitoring)

Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.

High Current Outlets

2 outlets for equipment with high power demands (Amps/Subwoofers).

USB Charger

1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.

Gaming LAN Port

Easy access to LAN port on front panel. Perfect for online gaming.

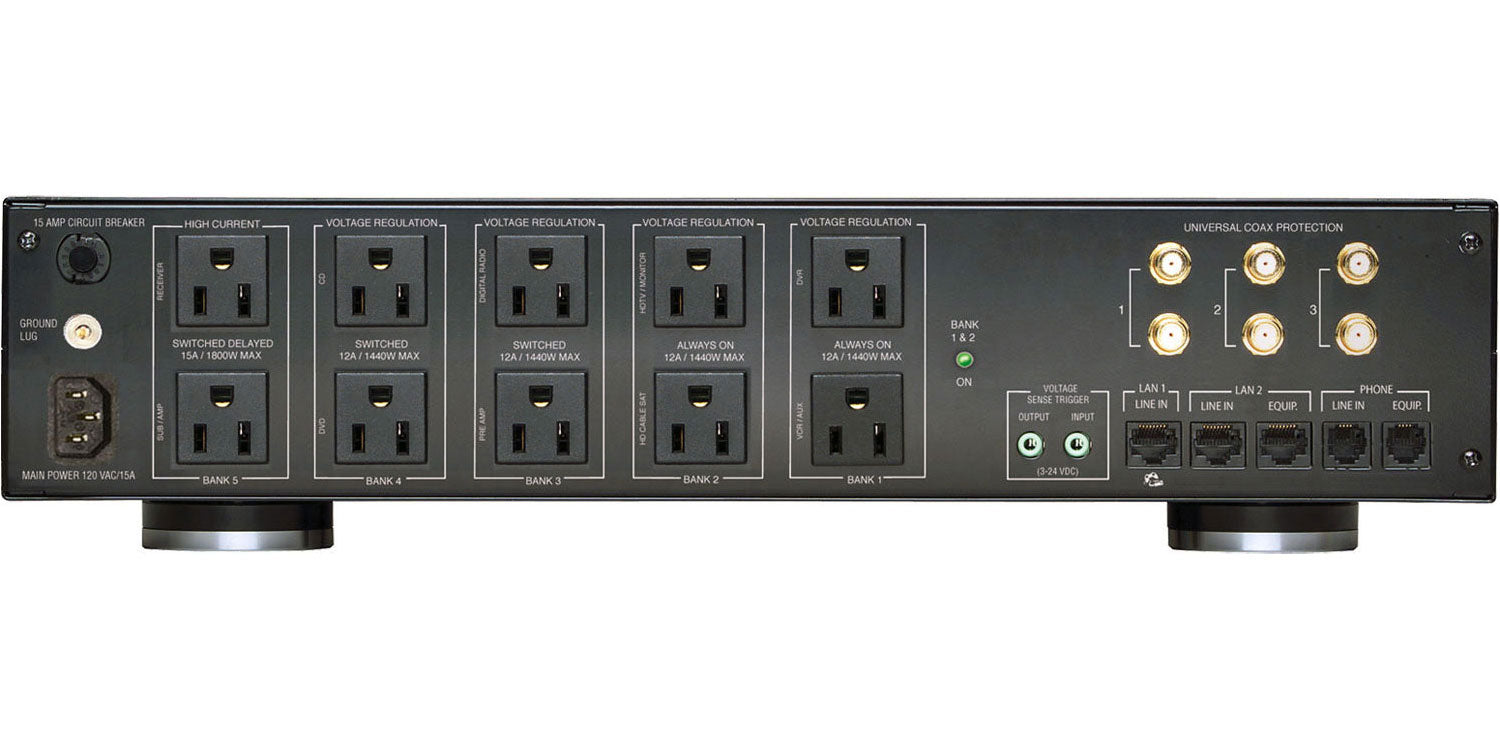

5 Isolated Outlet Banks

Isolating outlet banks from one another prevents noise contamination between components.

12 Volt Trigger

Allows source equipment to activate or deactivate the switched outlets on the M5400-PM.

Power Sequencing

Guards against blown fuses and potentially damaging speaker thump by automatically powering outlets on and off in sequence.

11 Outlets

5 Always On, 4 Switched, 2 Switched High Current.

Specifications

UL1449 Suppression Rating: 330V
Peak Impulse Current: 72,000 A
Energy Dissipation: 2125 Joules
LAN Circuits -Wires Protected: 8-Wires
LAN Circuits – Connectors: RJ-45
LAN Circuits – Compatibility: 10/100bT
LAN Circuits – Clamping Level: 52V
USB Circuit – Power Delivery: 500 mA @ 5VDC
USB Circuit – Jacks: USB-A
Telco Protection – Wires Protected: 2-Wire, Pins 4 & 5
Telco Protection – Suppression Modes: Metallic & Longitudinal
Telco Protection – Fuseless/Auto-resetting: Yes
Telco Protection – Connectors: RJ-11
Telco Protection – Clamping Level: 260V
Telco Protection – Capacitance: 30pf (approx.)
Universal Coax Protection – Shielded: Yes
Coax Protection – Insertion Loss: < 0.5 dB
Coax Protection – HD 1080 i/p Ready: Yes
Coax Protection – Frequency Range: 0 MHz – 2.2 GHz
Coax Protection – Connections: Female “F”, Gold Plated
Coax Protection – Clamping Level: 75V
Coax Protection -Bidirectional: Yes
