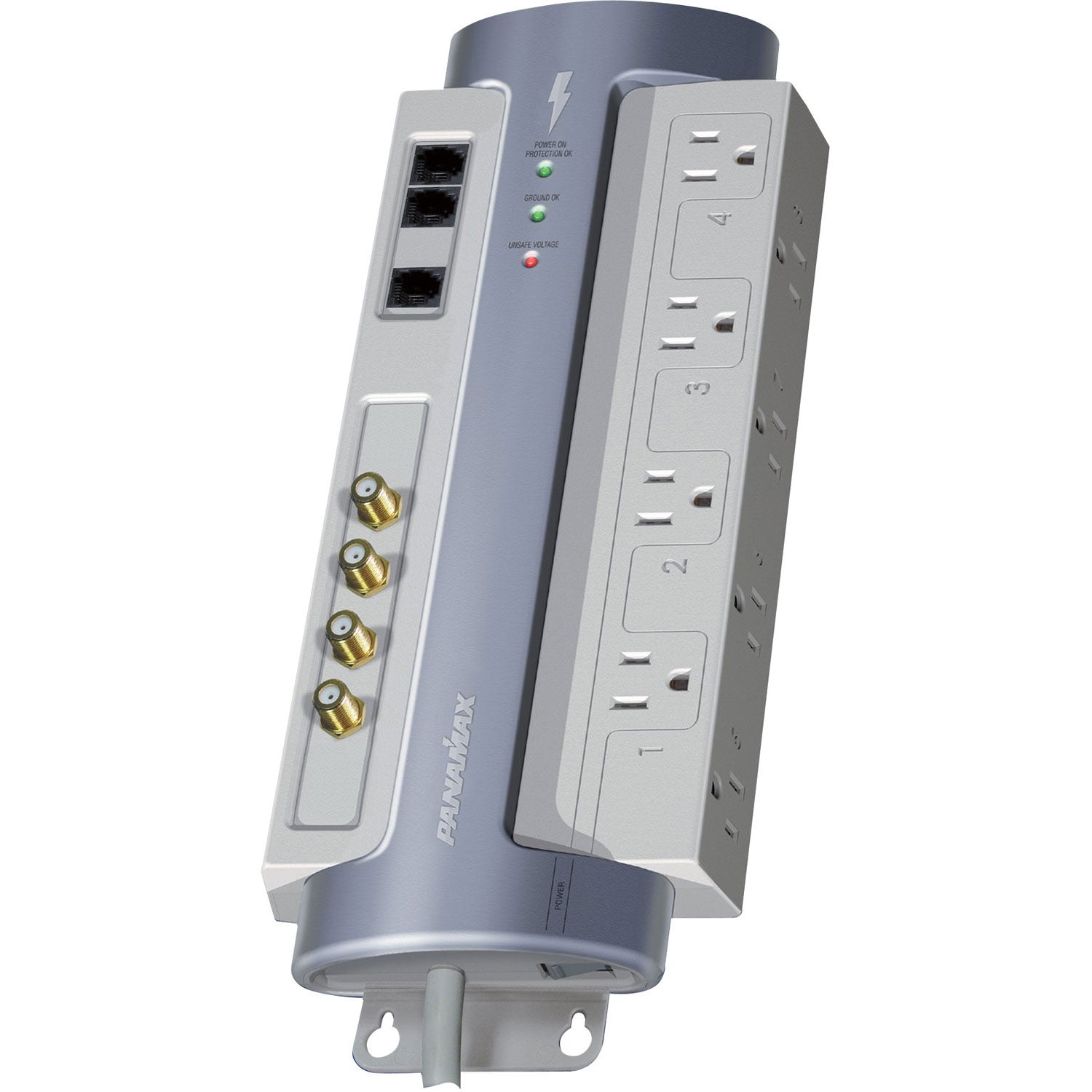

Panamax M8-AV Power Conditioner

Product Details

Home Theater Power Management

AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. M8-AV eliminates voltage irregularities & protects your AV system.

Surge Protection

Panamax’s patented AVM circuitry continuously monitors the incoming line voltage and disconnects your equipment in the event of an over voltage or undervoltage (brownout). Power is automatically reconnecte dwhen voltage returns to a safe level, eliminating service calls or system downtime.

Improves Picture & Sound Quality

The M8-AV’s Power Cleaning and Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

(Panamax Max 8 AV – 8 AC; Coax and Tel; AVM, Line Filtration)

Features

Cable/Sat Protection

Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.

Telephone Line Protection

Protects equipment from electrical surges that travel over telephone lines.

AVM

Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.

Surge Protection

Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

8 Outlets

Eight (8) filtered and surge protected outlets for all of your power needs.

Hi Def Ready

Hi-Def Designed to work with your High Definition system.

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1650 Joules
Response Time: 1ns
Peak Impulse Current: 52,000 Amps
Patented Power Management Circuit: Yes
Telco Protection
Wires Protected: 2 wire, 1 pair (3,4)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-11
Clamping Level: 260V
Capacitance: 30 pf (approx.)

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range: 0MHz – 2.2 GHz
Connections: Female “F”, Gold Plated
Clamping Level: 75V
Bidirectional: Yes
