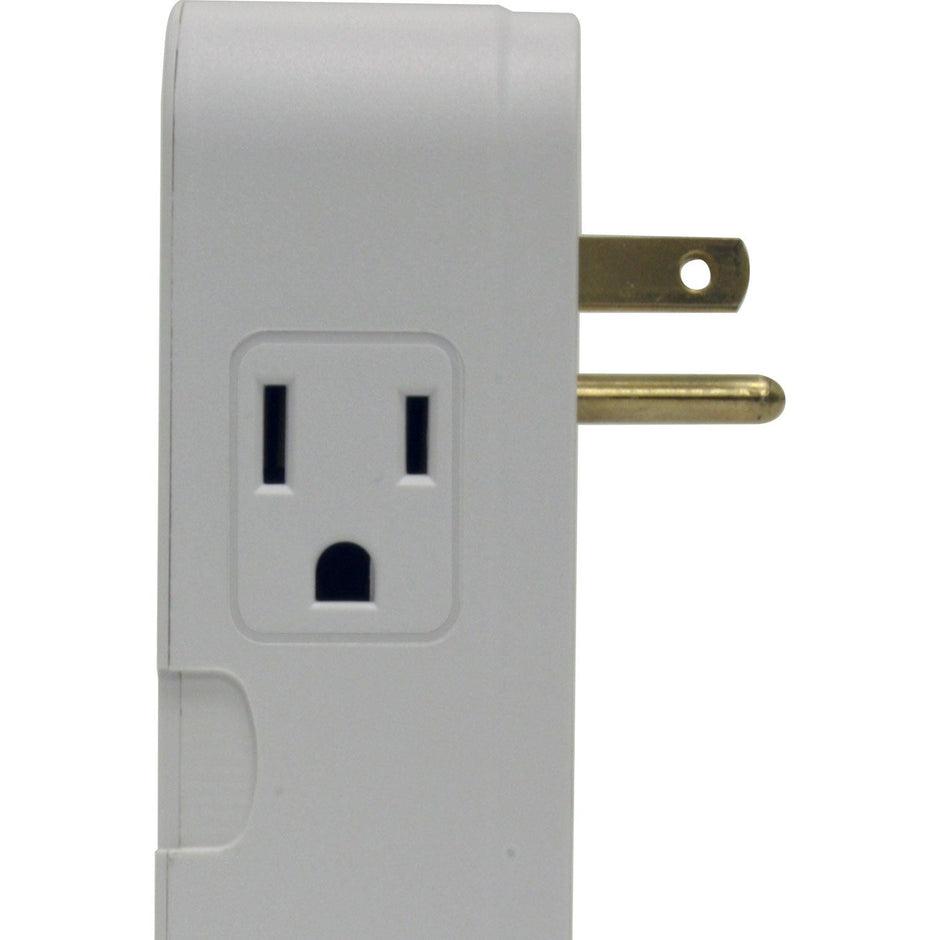

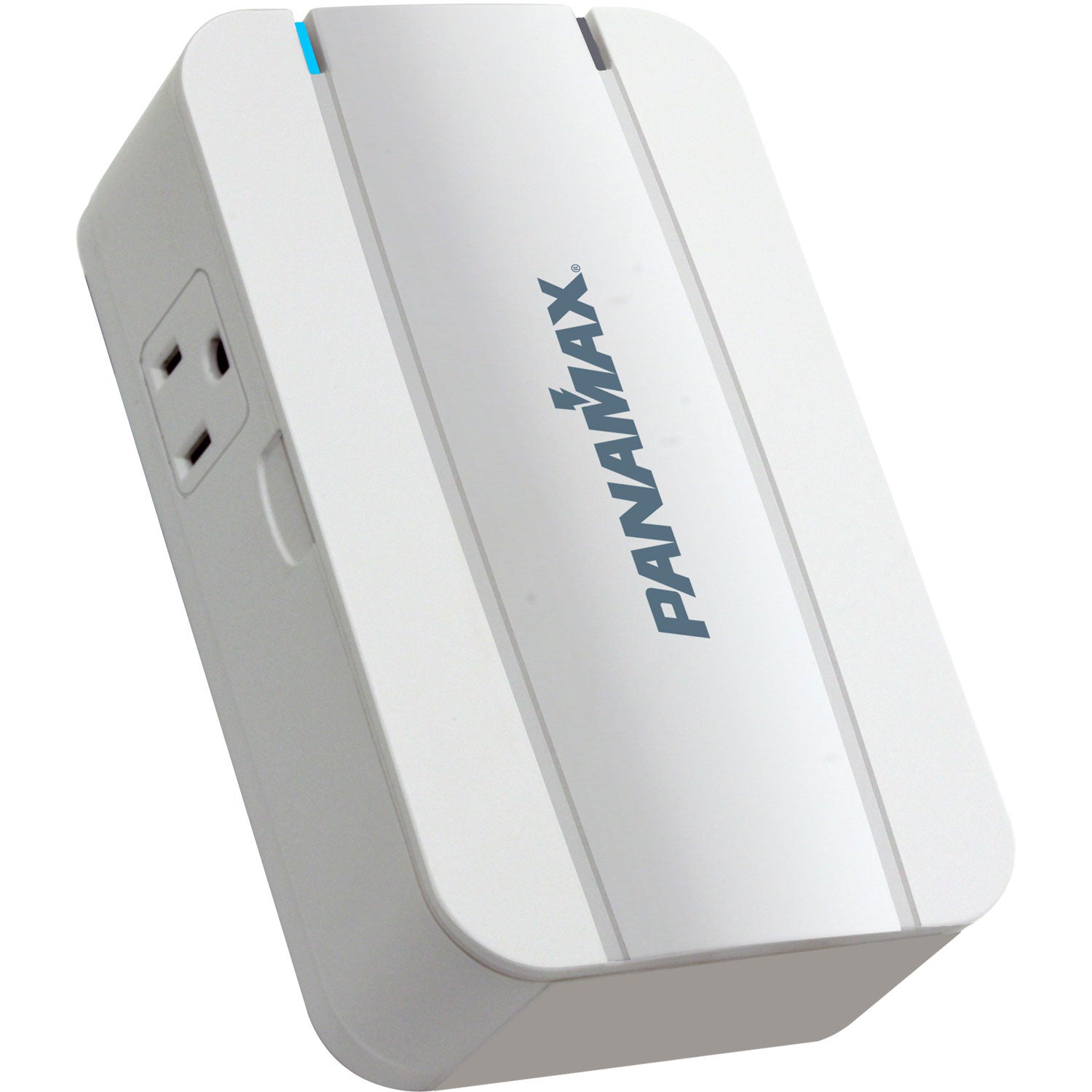

Panamax MD2 2 Outlet Direct Plug-In Surge Protector

Product Details

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Noise Filtration Circuit

Filtration removes noise and provides clean power

$100,000 Limited Connected Equipment Protection Warranty

Panamax will protect your equipment or we will repair or replace up to $100,000!

Lifetime Product Warranty

The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective unit

Features

• EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
• Protect-or-Disconnect™ Circuitry
• Paintable cover ensures seamless fit with any décor.
• Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
• Thin Profile – Only 1.5 inches deep.
• Convenient display feature; turn cover around to hide diagnostic lights

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): L-N 400V, L-G 500V, N-G 400V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1350 Joules
Response Time: <1 ns
Peak Impulse Current: 60,000 A
Nominal Discharge Current: 3,000 A
