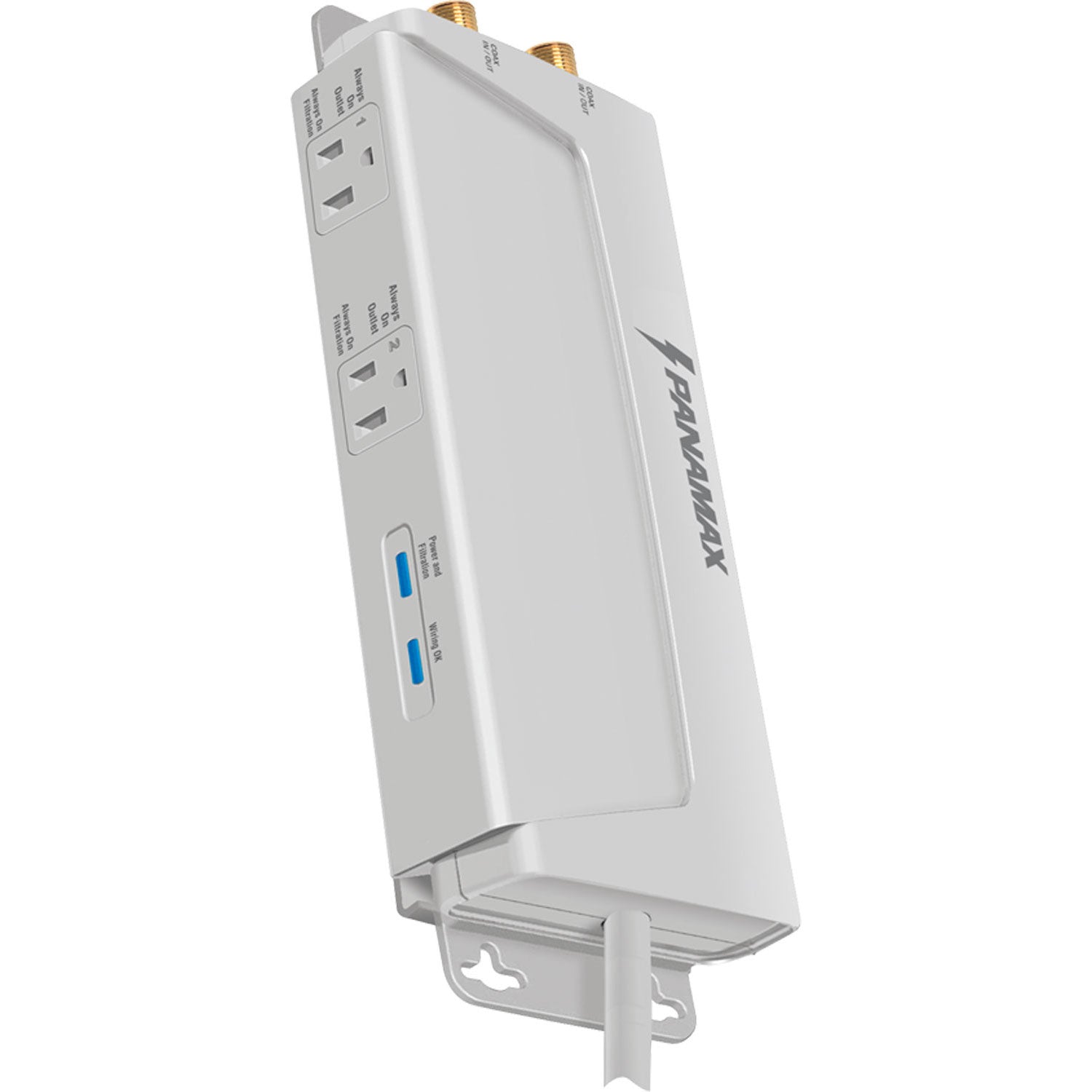

Panamax MFP300 Max Flat Panel 300

Product Details

Improves Picture and Sound Quality

The MFP-300’s Power Cleaning and Premium Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

Surge Protection

Panamax’s exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Features

• Premium Filtration Improves Picture and Sound.
• Provides clean power by filtering out noise common to household power.
• HD Ready
• Designed to work with your High Definition system.
• 2 Outlets
• Both outlets feature always-on filtration.
• Surge Protection
• Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
• Cable/Sat. Protection
• Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 330V
UL991 Electronic Safety Circuit: Yes
Single Pulse Energy Dissipation: 1675 Joules
Response Time: < 1ns
Peak Impulse Current: 48,000 Amps

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range: 0MHz – 2.2 GHz
Connections: Female “F”, Gold Plated
Clamping Level: 75V
Bidirectional: Yes
