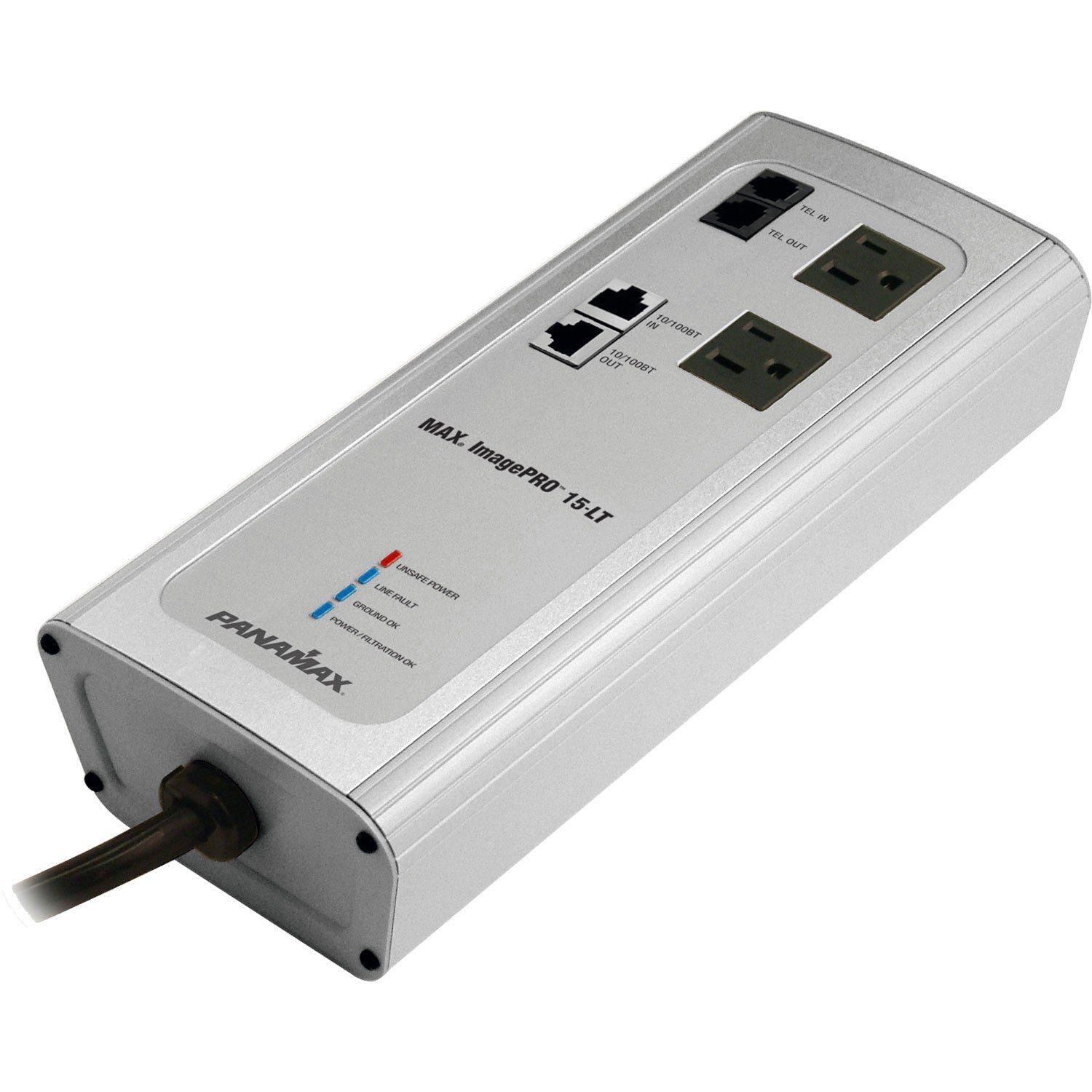

Panamax MIP-15LT MAX Image Pro LT 15 Amp

Product Details

FIREWALL FOR NOISE™ CIRCUITRY
This technology provides enhanced Neutral-to-Ground Noise Filtration for your digital office equipment. EMI/RFI noise can contaminate the equipment safety ground, which in turn will contaminate the connected digital equipment, and prevent it from operating at peak performance levels.

​GFCI COMPATIBILITY
This circuit features an improved 2-stage common-mode architecture that provides compatibility for GFCI’s per NEC article 250.6. Complies with UL 1283: Electromagnetic Interference Filters.

NOISE FILTRATION
Circuitry prevents EMI/RFI noise from contaminating the connected digital equipment through the ground wiring.

AUTOMATIC VOLTAGE MONITORING (AVM)
This power monitoring system acts as a gate to prevent unsafe voltages from damaging sensitive electronic equipment. It automatically detects a prolonged over-voltage or under-voltage and disconnects the power to the connected equipment, then reconnects it when the power returns to a safe level. It even protects the MIP-20LT unit.

SIGNALPERFECT™ TELEPHONE LINE PROTECTION
RJ-11 phone jacks are available to protect a single-line telephone modem (pins 4,5 protected) with fuseless Auto-Resetting technology and optimized circuitry to ensure a clean, clear signal.

WIRING FAULT SAFETY SHUTOFF
This technology will detect a mis-wired wall receptacle or an open-ground by monitoring the voltage between neutral and ground. If an unsafe condition exists, the MIP-20LT will disconnect the power from the connected equipment.

CAT5E ETHERNET LAN PROTECTION
RJ-45 jacks are available to protect one Ethernet 10/100/1000BASE-T network connection (all pins protected).

Features

• AVM (Automatic Voltage Monitoring) – Protects equipment against prolonged over/ under voltages by disconnecting the power and reconnecting it when safe power returns.
• Separate protection circuits for 10/100/1000 BaseT Ethernet and telephone.
• CAT5e LAN Protection In/Out RJ-45 bi-directional connectors
• Unsafe Power Indicator light
• Line Fault Indicator light
• Ground OK Indicator light
• Power/Filtration OK Indicator light
• Three-stage, GFCI Compatible filter circuit provides high levels of Normal and Common mode EMI/RFI noise filtration.
• Surge Protection – Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment
• Eight foot power cord
• Two rubber strips running the length of the product provide a non-slip grip and prevent marring surface
• Telephone Protection RJ-11 In/Out connectors (2 telco cables included)
• Two Always-on AC outlets
• Includes security lock to prevent theft
• 20 Amp AC configured receptacles

Specifications

General

Family: Power Conditioners

Line Voltage: 120 (Volts)

Number of Outlets: 2

Outlet Descriptions: Both outlets filtered and surge protected

Compliance: UL 1283

USB Charging: N/A

Low Voltage Trigger: N/A

AC Power Cord: 8 ft. captive cord

Dimensions: 10.25″ W x 4.75″ D x 2.5″ H

Weight: 4.5 lbs

AC Protection

AC Protection Technology: Protect or Disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G Protection Modes
Thermal Fusing

Undervoltage Shutoff: 86 VAC ± 6 VAC

Over-Voltage Shutoff: 138 VAC ± 8 VAC

Maximum Current Rating: 15 (Amps)

Initial Clamping Level: 200V Peak

Filtration

Filtration Technology: RFI/EMI Filtration

Filtration Rating: 65 dB @ 100KHz – 1 MHz

Signal Line Protection: 1 LAN
1 Tel

Shipping Info

Length: 8.8 (Inches)

Width: 3.4 (Inches)

Height: 13.2 (Inches)

Weight: 4.7 (Lbs)

Unit of Measure: Each

UPC: 050616008686

Master Pack Qty: 4
