Panamax MIW-POWER-PRO-PFP Max-In-Wall Power-Pro-PFP, (2) 15A Outlets, Surge Protection, EMI/RF Filtration

Product Details

Provides safe and noise-free filtered power to remote plasma screens, LCD´s and ceiling projectors.

Voltage Monitoring Circuit protects equipment against prolonged over voltages by disconnecting the power and reconnecting it when safe power returns.

May be used in conjunction with MIW-DUAL SIGNAL BAY and signal line modules (sold separately).

Surge Suppression Rating of 330V.

3 Year Product Warranty.

Limited Lifetime Connected Equipment Protection Policy when properly installed using MIW-Dual Signal Bay and appropriate MIW Module (both sold separately).

Features

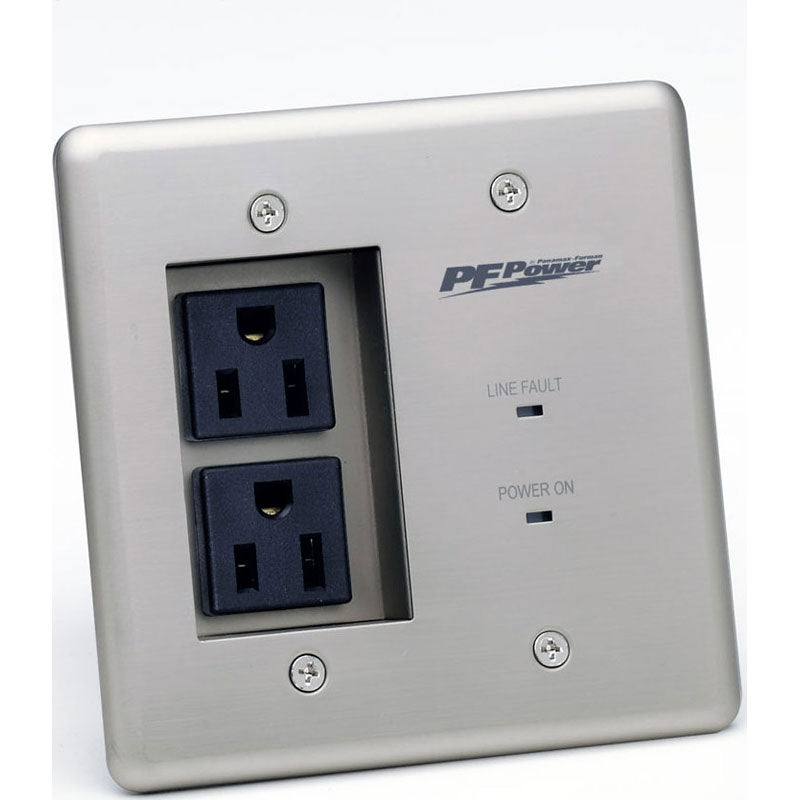

• Power Outlet Faceplate
• Two recessed AC receptacles deliver power to remotely located devices. Enlarged faceplate (4.5″ x 4.5″) accomodates oversized wall cutouts.
• Line Fault Indicator LED
• When lit, this LED indicates there is an overvoltage condition with the power to the MIW Power-Pro PFP.
• Power On Indicator LED
• Blue light indicates power is being supplied to the MIW Power-Pro PFP outlets.

Specifications

UL1449 Suppression Rating: 330V
Thermal Fusing: Yes
Peak Impulse Current: 32,500 Amps
Energy Dissipation: 546 Joules
