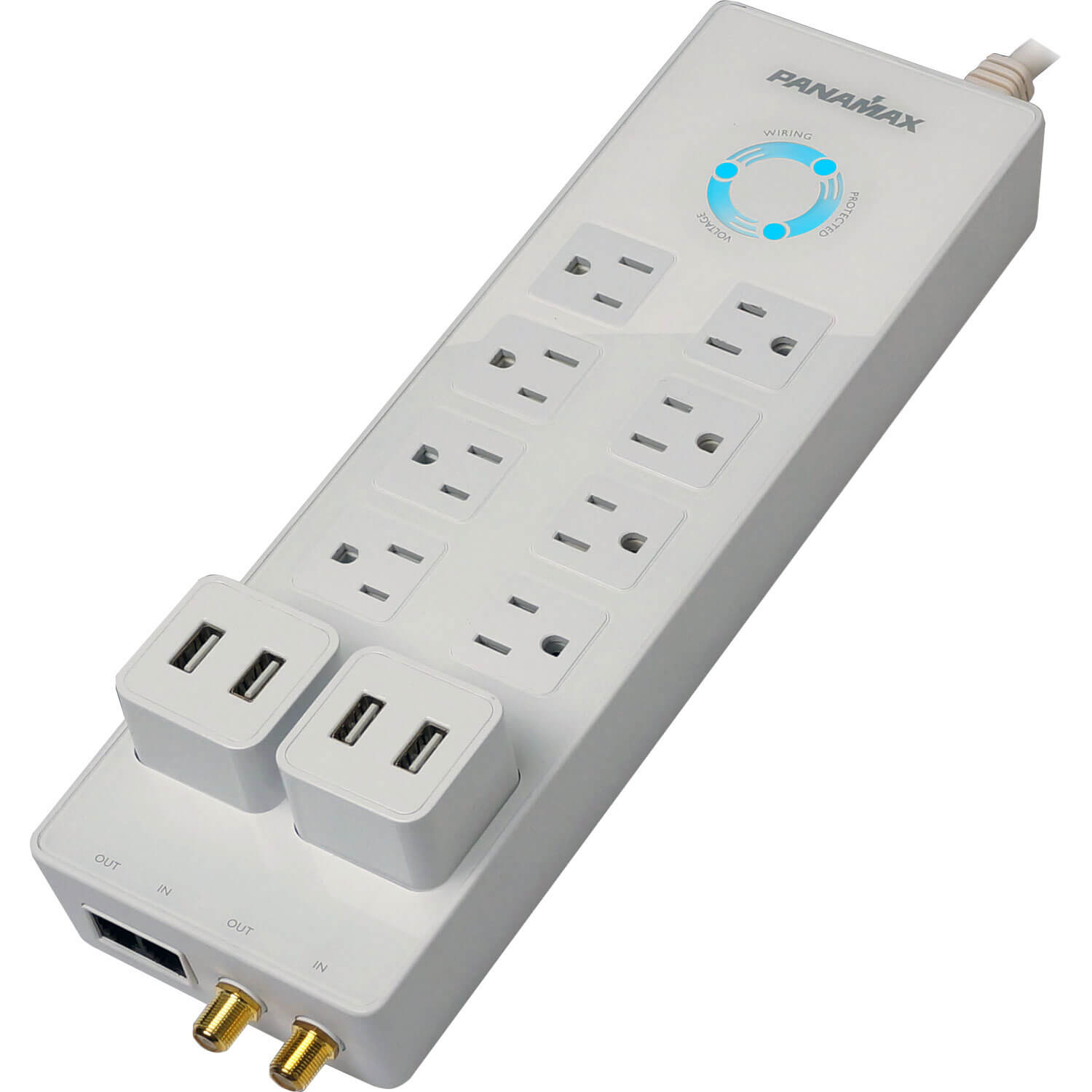

Panamax P360-8 Power360 8-Outlet Floor Strip

Product Details

8 Outlet Surge Protector with Coax and Telco Surge Protection and 4 USB Charging Ports.

Best in class protection with our over/under voltage protection technology – the best protection ever available at this price point!

Ideal for home entertainment.

Features

• Detachable USB modules tether to P360-8 for convenient USB charging on table or desktop (Qty 2, 6’ cables included)
• “Circle Of Protection” displays protection, wiring, and voltage status
• RFI/EMI AC filtering
• Four (4) high capacity USB ports
• Eight (8) AC outlets
• Coax + TelcoLAN surge protection

Specifications

Energy Dissipation: 1620 J

Telephone Protection
Connectors: RJ-11 (6P2C)
Clamping Voltage: 300V

Coaxial Protection
Connectors: Type-F
Clamping voltage: 75VDC
Insertion Loss: <0.5dB @ 300kHz-2.4GHz USB Charging
Ports: 4 USB Type-A
Removable Modules: 2 modules
Output Voltage: 5.0VDC +/- 0.5VDC
Output Current, per port: 1 A max
Output Current, total: 4 A max

Downloads

User Manual
