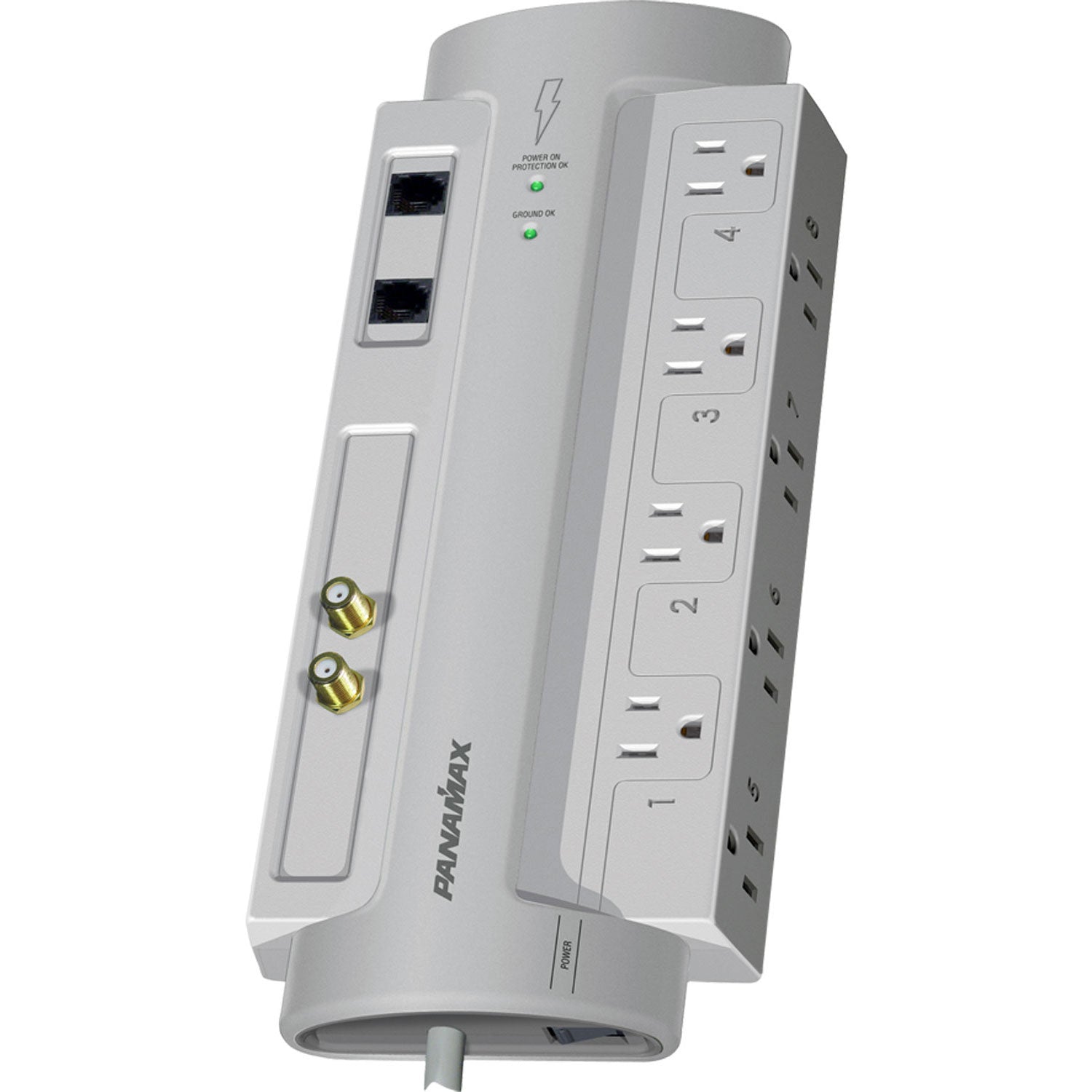

Panamax SP8-AV Surge Protector 8 AV

Product Details

AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. Panamax’s SP8-AV eliminates voltage irregularities and protects your AV system.

Features

• Power Status LED.
• In / Out Telephone Connectors.
• In / Out Coax Connectors for Cable/Sat.
• Six (6)ft, Power Cord with Right Angle 45 degree Offset Plug.
• Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
• Ground OK LED.
• 8 AC Outlets Provide Power Proection with Transformer Spacing Between Outlets.
• ON / OFF Power Switch and 15A Circuit Breaker.

Specifications

Voltage Protection Rating : (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing : Yes
Single Pulse Energy Dissipation : 1125 Joules
Response Time : < 1 ns
Peak Impulse Current : 60,000 Amps

Telco Protection
Wires Protected : 1 Line (3, 4)
Suppression Modes : Metallic & Longitudinal
Fuseless / Auto-reseting : Yes
Connectors : RJ-11
Clamping Level : 260V
Capacitance : 30pf (approx.)

Universal Coaxial Protection
Shielded : Yes
Insertion Loss : < 0.5 dB
Frequency Range : OMHz – 2.2 GHz
Connections : Female “F”, Gold Plated
Clamping Level : 75V
Bidirectional : Yes
