Panamax VT-EXT Vertical Power Distribution - 8 Outlets

Product Details

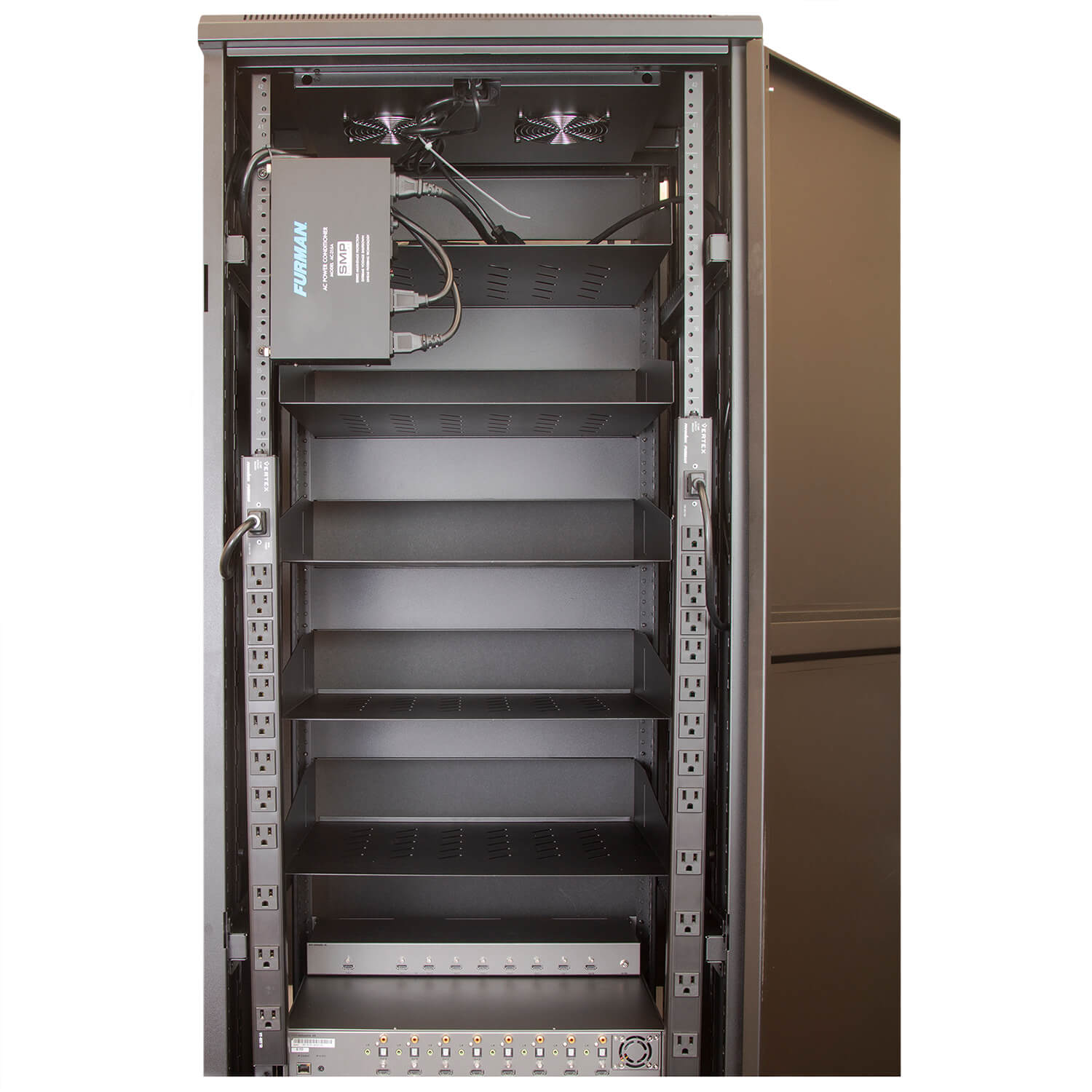

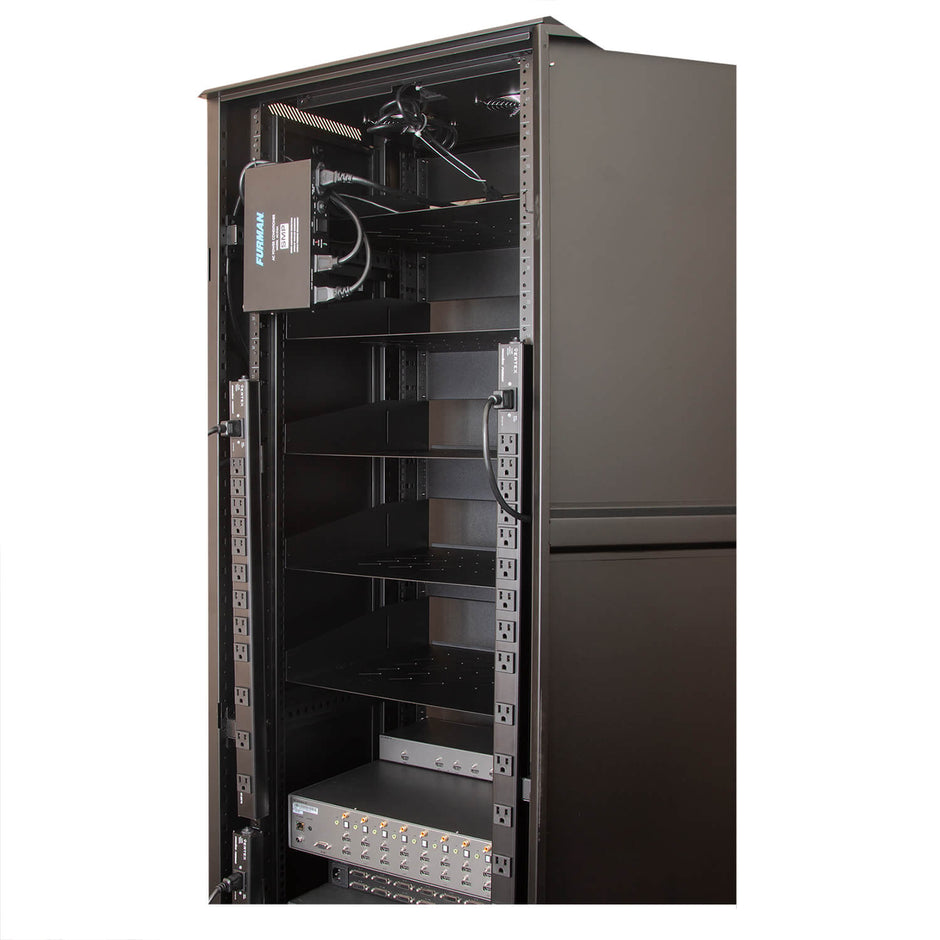

8 outlet power strip designed specifically to be mounted to the vertical leg section of an equipment rack. This is the perfect way to extend the protection and filtration from an existing Panamax or Furman power conditioner.

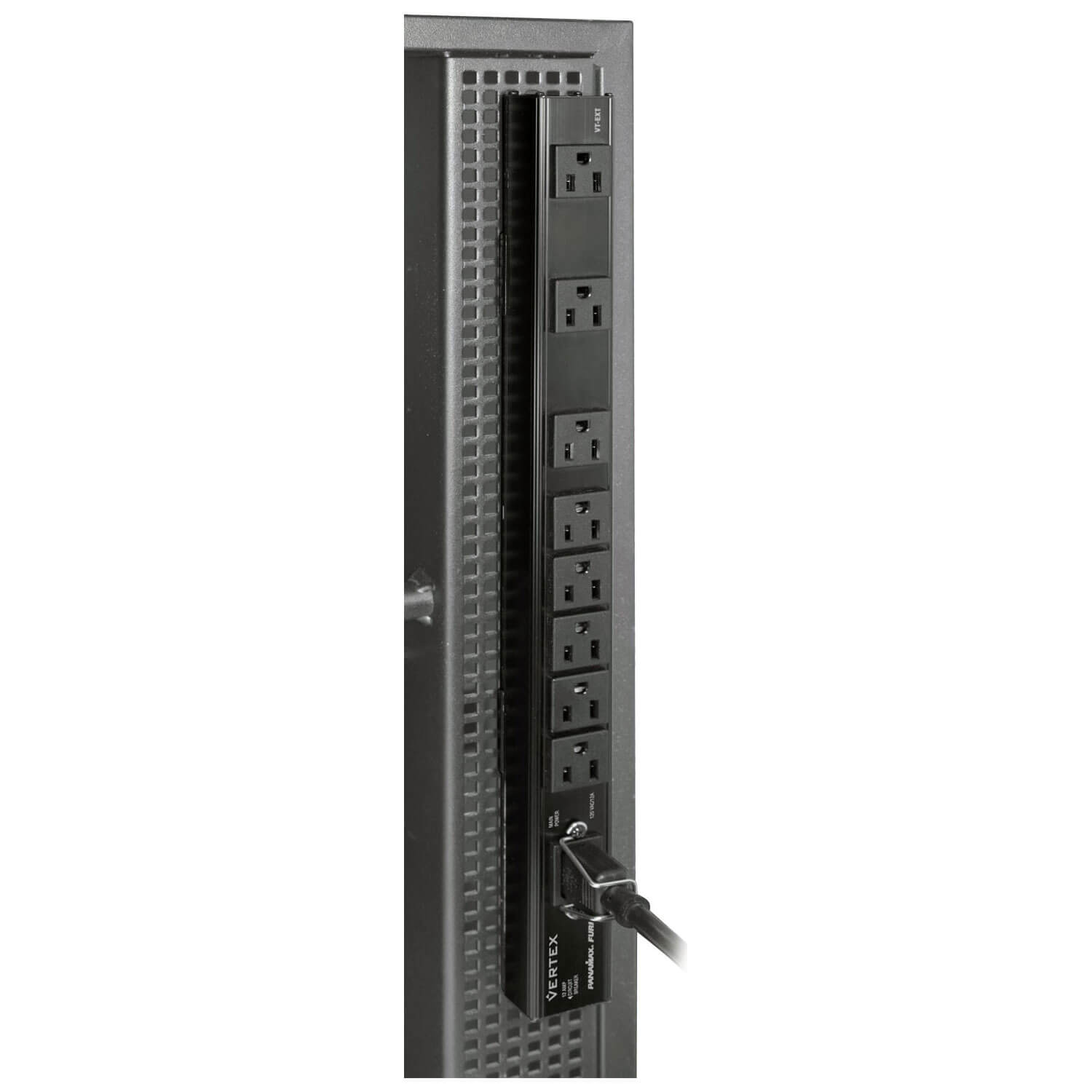

Simply attach mounting clips in desired location for an easy installation. Snap the VT-EXT into clips for a sturdy and secure fit and plug into a Panamax/Furman power conditioner. The plastic spacers in clips provide ground isolation from the rack.

Features

• 8 AC outlets, 3 with transformer spacing.
• Heavy duty detachable 10 foot, 14 AWG power cord with security retention bracket.
• 12 amp re-settable circuit breaker.
• Ground isolation from equipment rack provided by plastic spacers in mounting clip hardware.
• One (1) year limited product warranty.

Specifications

General

Family : Power Distribution

Line Voltage : 120 (Volts)

Number of Outlets : 8

Outlet Descriptions : 8 power distribution outlets. No filtration or power protection.

Compliance : cULus

USB Charging : N/A

Low Voltage Trigger : N/A

AC Power Cord : 10 ft. captive cord

Dimensions : 1.5in W X 18" L x 1.5" H

Weight : 0.78 lbs

AC Protection

AC Protection Technology : N/A

Undervoltage Shutoff : N/A

Over-Voltage Shutoff : N/A

Maximum Current Rating : 12 (Amps)

Initial Clamping Level : N/A

Filtration

Filtration Technology : N/A

Signal Line Protection : No

Shipping Info

Length : 21.5 (Inches)

Width : 3.75 (Inches)

Height : 2.75 (Inches)

Weight : 2.3 (Lbs)

Unit of Measure : Each

UPC : 050616008969

Master Pack Qty : 10
