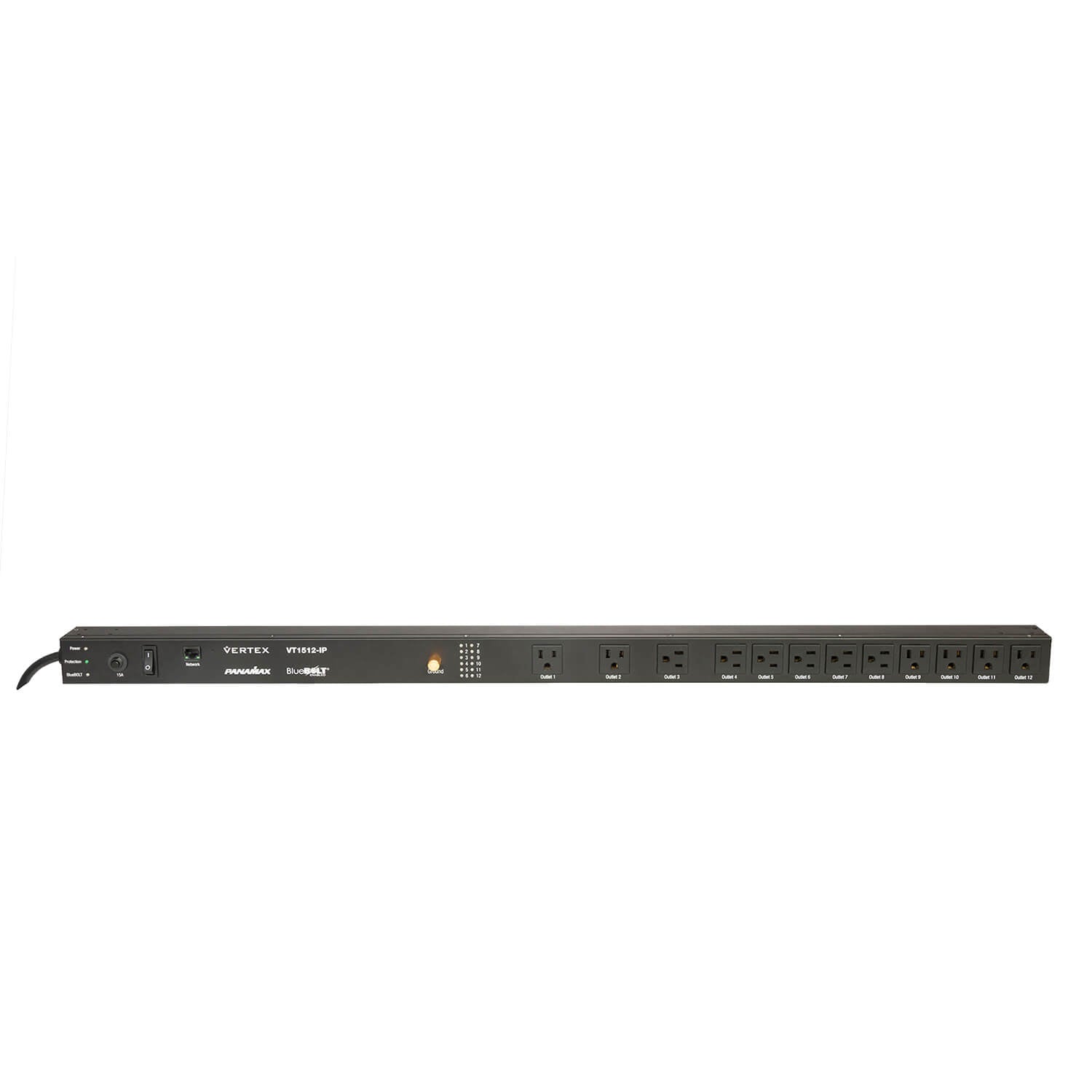

Panamax VT1512-IP Power Management Vertical Strip - 12 Outlets

Product Details

The VT1512-IP is a BlueBOLT enabled slim form factor vertical rack power conditioner and power sequencer. The VT1512-IP is a full featured power conditioner providing protection and filtration for maximum longevity and performance of connected equipment. BlueBOLT enabled, the VT1512-IP allows remote reboot of 12 individually controlled outlets, as well as the ability to monitor energy use, set alerts, program scheduled commands, network pings with conditioner reboots. For non-Cloud applications the VT1512-IP has an embedded webpage for control and programming, or you can use a LAN for secure control via an ELAN or other 3rd party control systems.

Features

• Protect-or-Disconnect surge protection
• Standard EMI/RFI Filtration
• Over/Under voltage load disconnect
• Power Sequencing
• IP Monitor & Control – BlueBOLT™ enabled for IP control and monitoring
• 12 individually controlled outlets, 3 spaced for wall-warts & 6 turned 90°
• Ground lug to attach Panamax signal-line protection modules

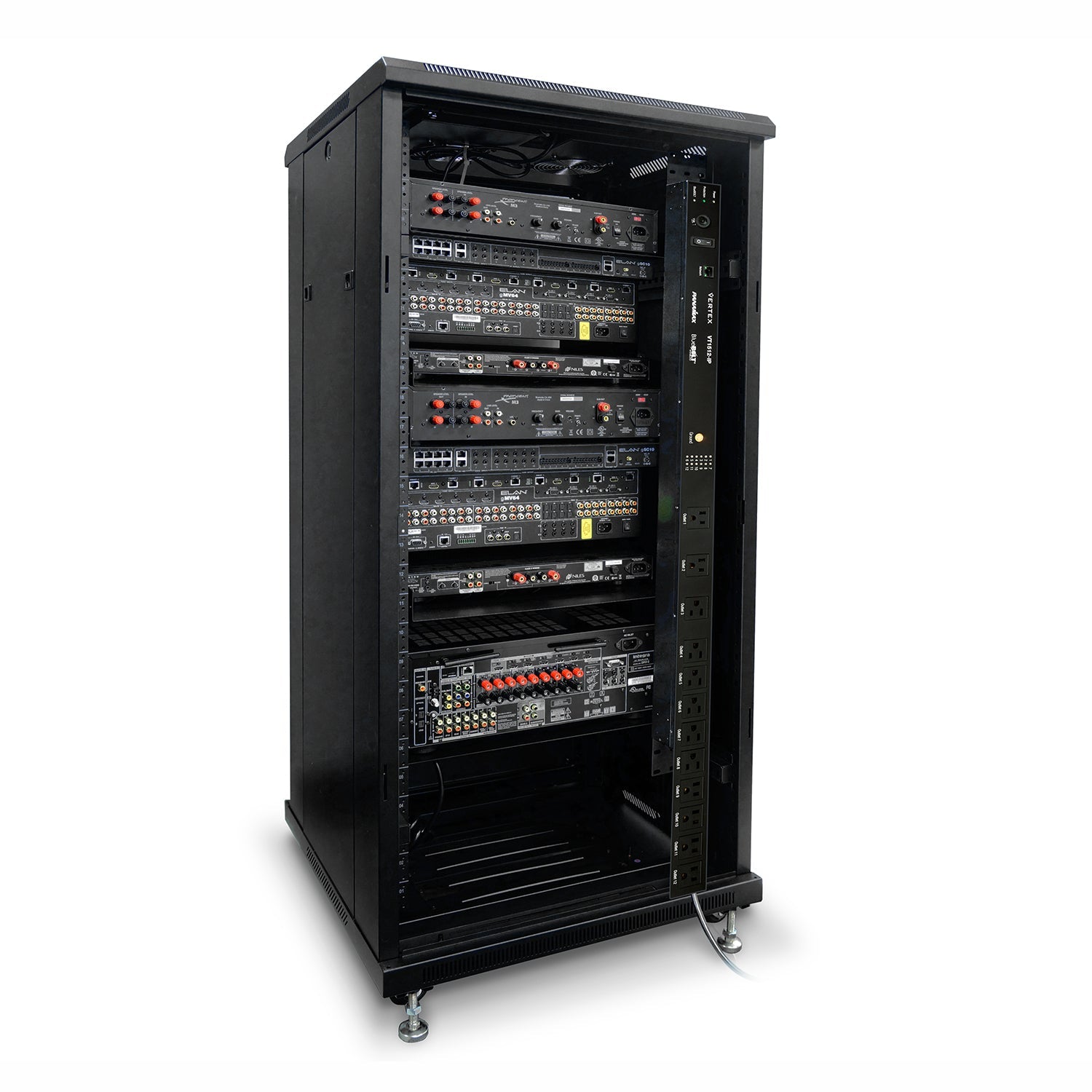

• Sleek design ideal for vertical mounting to an equipment rack with included brackets
• 10 foot power cord with removable plug to customize length
• 15A Capacity with circuit breaker
• 3 year limited product warranty
• $5,000,000 Connected Equipment Protection Policy when used with Panamax signal-line protection modules

Specifications

AC Power : 120Vac, 50/60Hz
Total Outlets : 12
Total Current Capacity : 15A (1800W)
Voltage Protection Rating : (UL 1449 4th Edition, 3,000A): L-N 500V, L-G 500V, N-G 500V
Protection Modes : L-N, L-G, N-G
Initial Clamping Level : 200 V Peak, 141 RMS
Energy Dissipation : 668 Joules
Peak Impulse Current : 12,000
Protect-or-Disconnect : Yes
Thermal Fusing : Yes
Cord Length : Captive 10ft. cord with removable NEMA 5-15P for length customization
Dimensions : 37” L x 1.75” W x 1.75” H
