Simplified AUDEX1 HDMI Audio Extractor

Name: Simplified AUDEX1 HDMI Audio Extractor
Brand: Simplified
SKU: AUDEX1
Price: 94.99 USD
Availability: InStock

Art: AUDEX1

In stock: 13 available

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

$94.99 -100% $0.00

$94.99

Product Details

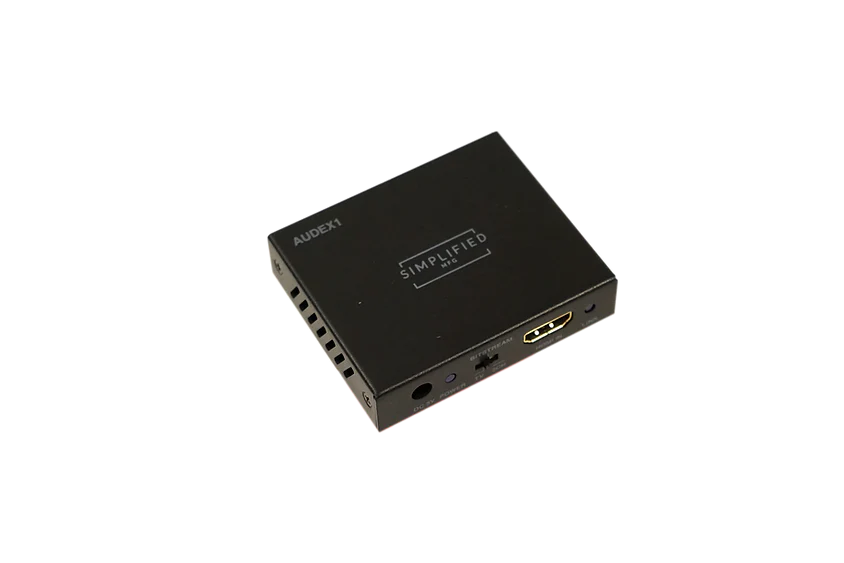

The AUDEX1 HDMI audio extractor extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R outputs. Both input and output HDMI connections support video resolutions up to 4K2K@50/60Hz while supporting 10bit HDR pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD master audio. Audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

Features & Benefits

HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
Supports HDMI High Bit Rate(HBR) audio pass through
Audio sample rates up to 192kHz
HDR 10+, and DolbyVision™ (High Dynamic Range) pass through
Supports CEC bypass
3-Year Warranty

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18 Gbps
Video Resolutions	up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	8-bit, 10-bit, & 12-bit
HDMI Audio Formats (Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats	LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
L/R Audio Formats	Analog Stereo 2CH
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

Connections
Inputs	1x HDMI Type A [19-pin female]
Outputs	1x HDMI Type A [19-pin female]
	1x L/R Audio Out [3.5mm Stereo Mini-jack]
	1x Optical Out [S/PDIF]

Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	73.5mm/2.9" [W] x 60.7mm/2.4" [D] x 17mm/0.67" [H]
Weight	130g/4.6 oz.
Power Supply Input	AC100 - 240V 50/60Hz
Power Supply Output	DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	1W (Max)
Operation Temperature	32 - 104°F / 0 - 40°C
Storage temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
