Simplified DARC1 ARC Audio Extractor with Downmix to Stereo

Simplified DARC1 ARC Audio Extractor with Downmix to Stereo

Name: Simplified DARC1 ARC Audio Extractor with Downmix to Stereo
Brand: Simplified
SKU: DARC1
Price: 179.99 USD
Availability: InStock

Art: DARC1

In stock: 2 available

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

$179.99 -100% $0.00

$179.99

Product Details

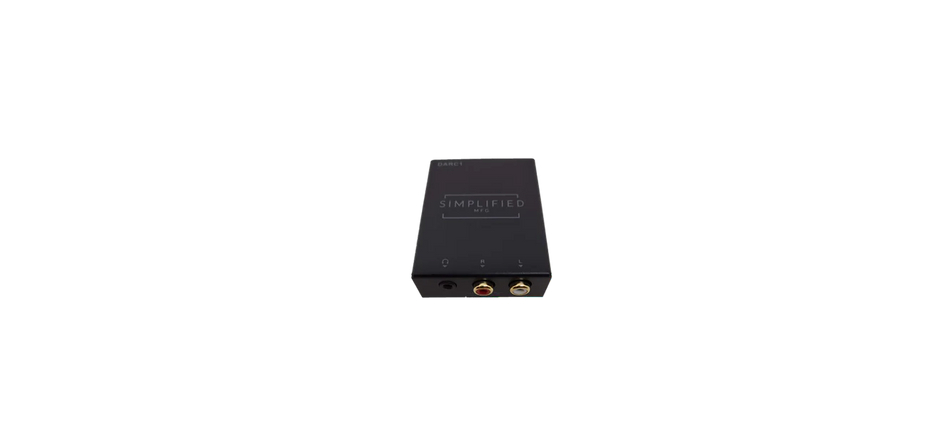

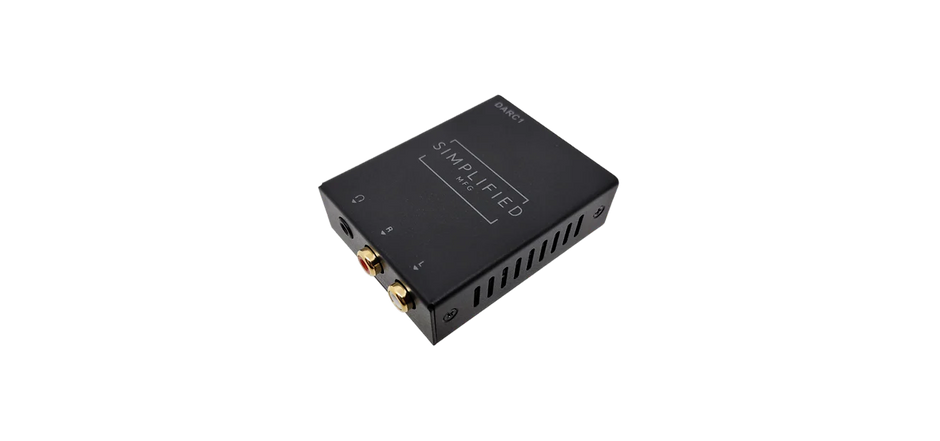

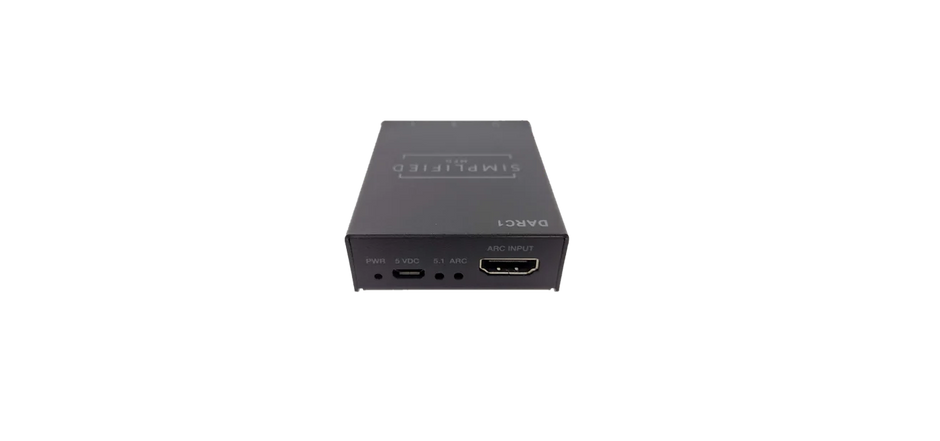

The DARC1 is an ARC audio extractor that will extract ARC audio from a display and downmix the multichannel audio to stereo. The DARC1 one is a perfect device for getting a usable stereo audio signal from a display that does not have a stereo audio output. The display's remote will control the volume of the outputs via CEC.

Features & Benefits

Converts HDMI ARC audio to Stereo
Compact design
Powers from USB port of display
Converts 5.1 formats to stereo
3-year Warranty

Specifications

Technical
HDMI Compliance	Not Applicable
HDCP Version	Not Applicable
HDMI ARC Audio Formats	LPCM 2/5.1/Dolby Digital, DTS 5.1
L/R Audio Formats	Analog Stereo 2CH

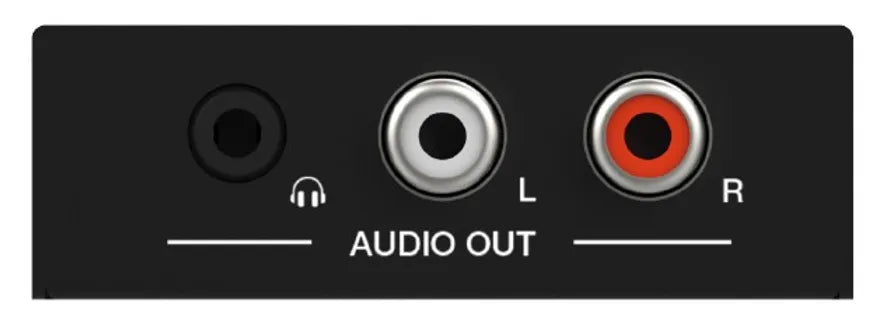

Analog Output Ports	RCA (2) and 3.5mm mini-jack
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

Connections

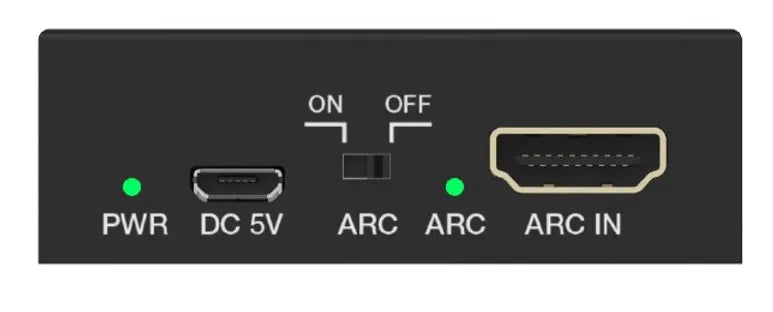

Inputs	1x HDMI Type A [19-pin female]
Outputs	2x L/R Audio Out RCA Connectors
	1x 3.5mm Mini-Jack

Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	70mm/2.756" [W] x 60mm/2.36" [D] x 20mm/0.788" [H]
Weight	130g/4.6 oz.
Power Supply Input	AC100 - 240V 50/60Hz
Power Supply Output	DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	1W (Max)
Operation Temperature	32 - 104°F / 0 - 40°C
Storage temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
