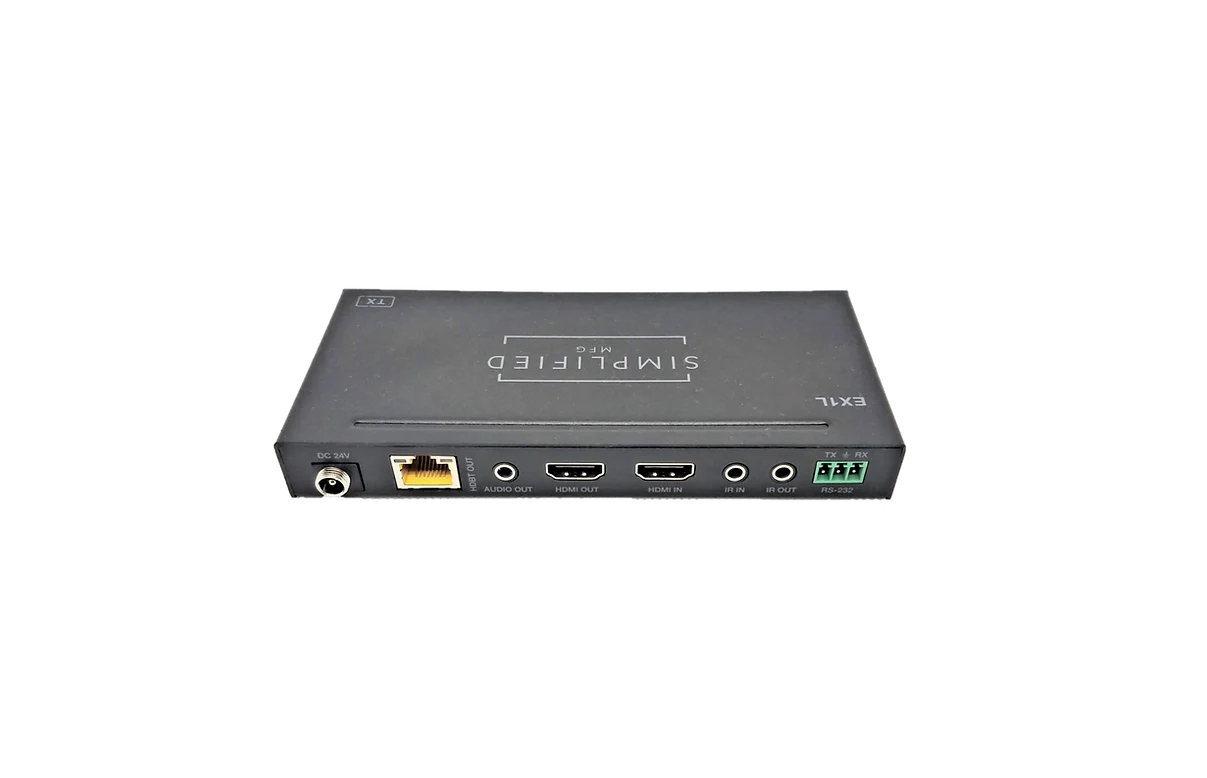

Name: Simplified EX1L 4K HDMI 120m/394 ft. on Cat6, 18Gbps extender
Brand: Simplified
SKU: EX1L
Price: 599.99 USD
Availability: InStock

Art: EX1L

In stock: 4 available

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

$599.99 -100% $0.00

$599.99

Product Details

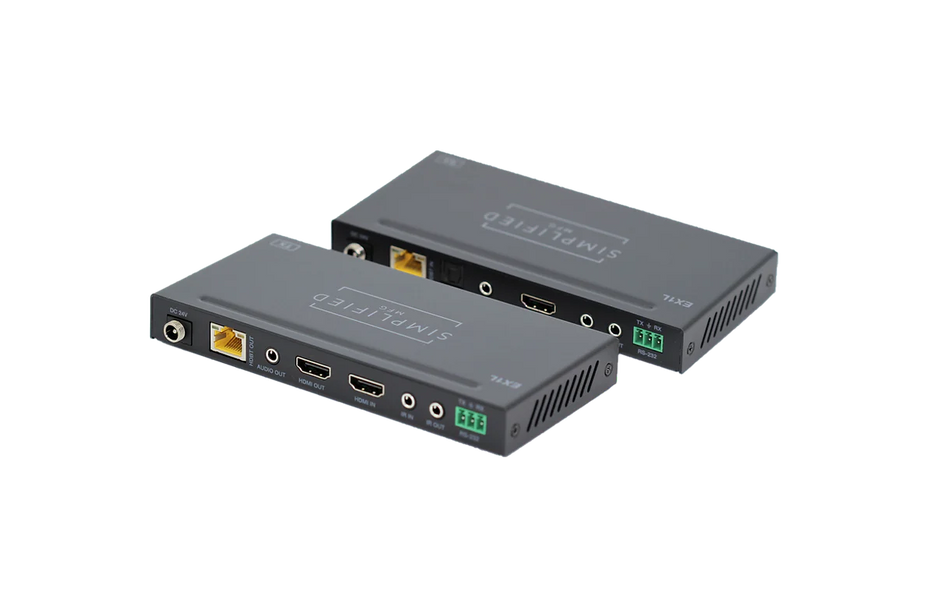

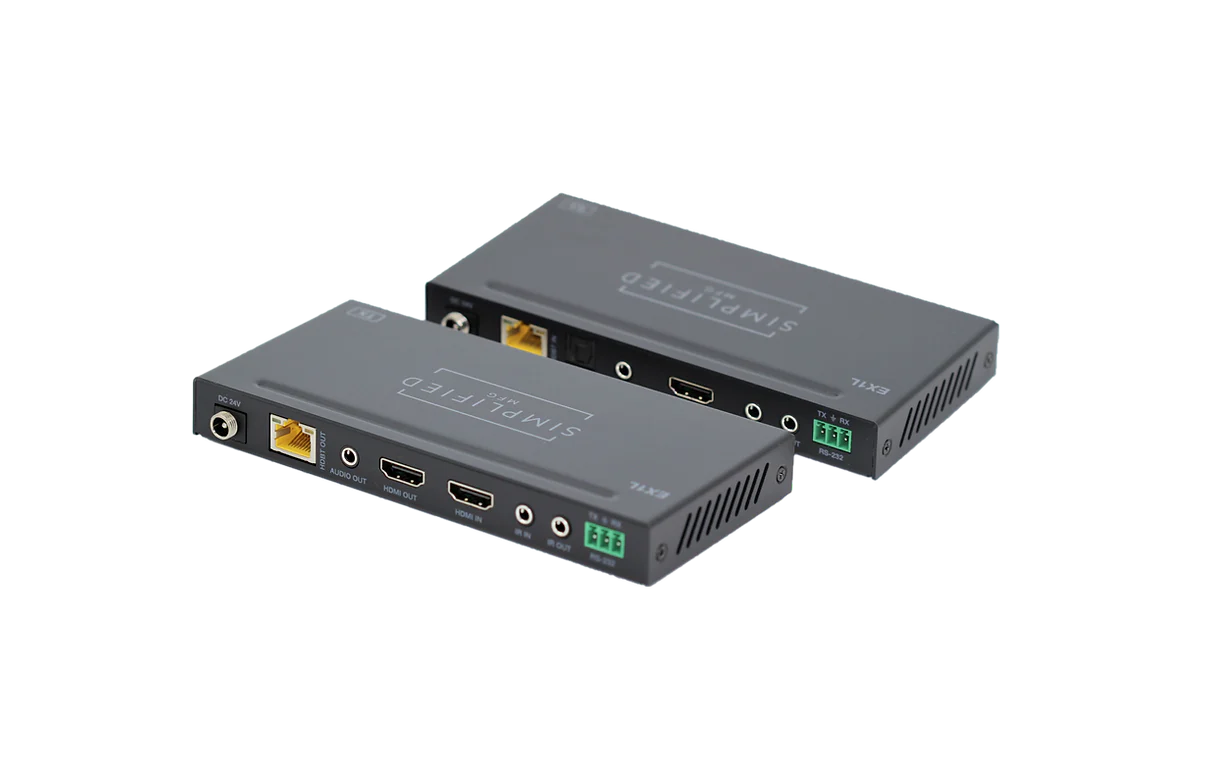

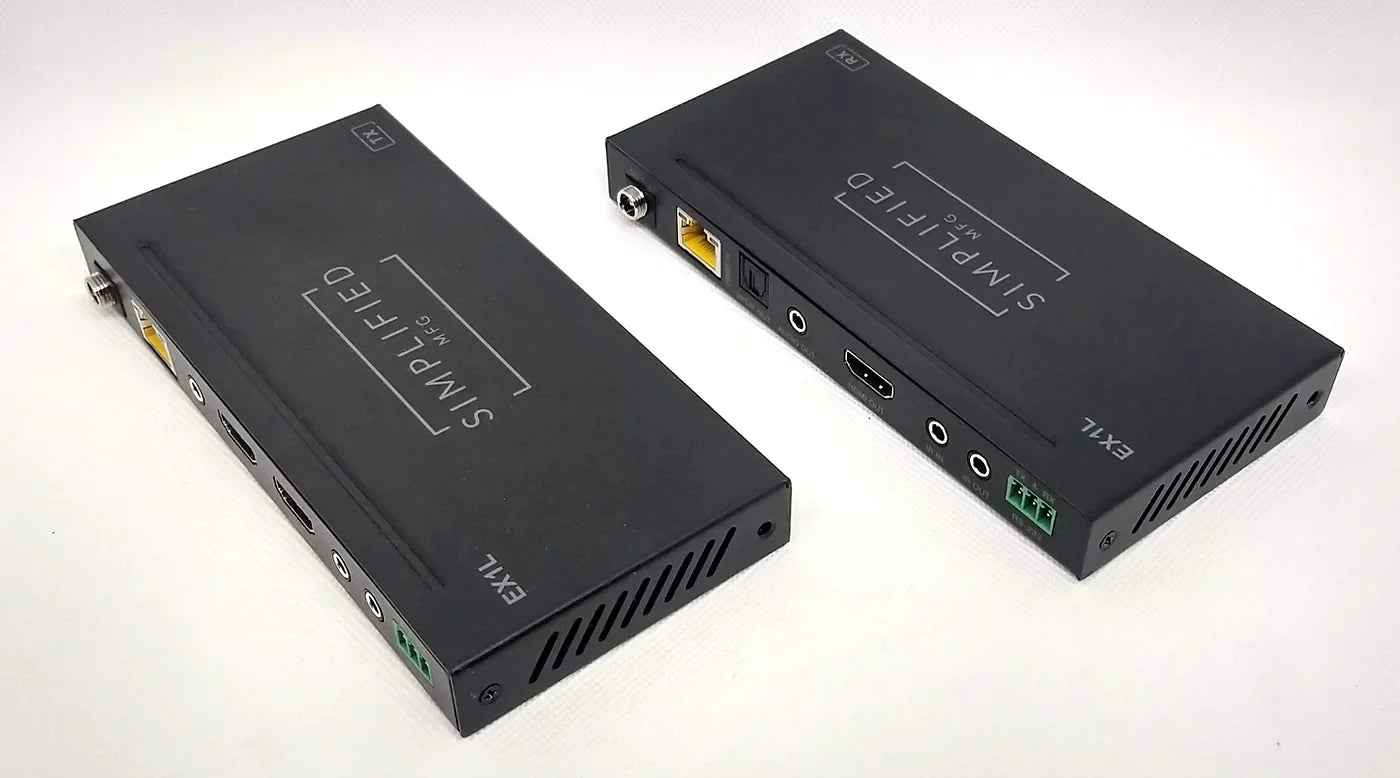

The EX1L 18Gbps HDMI extender has 3 times the distance of most extenders in it's price range! The EX1L can extend your HDMI signal over 492ft/150meters to a compatible 1080p display, 394ft/120meters to a HDMI 2.0b 18gbps compatible display. The EX1L supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, together with the 18gbps HDMI 2.0b signal. There are also audio breakouts on both the transmitter and the receiver. With 120m of capability, the EX1l can overcome the punch downs and other wiring challenges often seen. Try one, they are reasonable and awesome!

Primary Use: This is the workhorse/day to day extender that supports the entire HDMI 2.0b format, has 12V IR for ease of installation with third party control, and audio breakouts for easy integration with audio systems.

Features & Benefits

HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
HDR8/10/10+ pass through
Dolby Vision™ pass through
Supports HDMI High Bit Rate(HBR) audio pass through
Supports CEC bypass

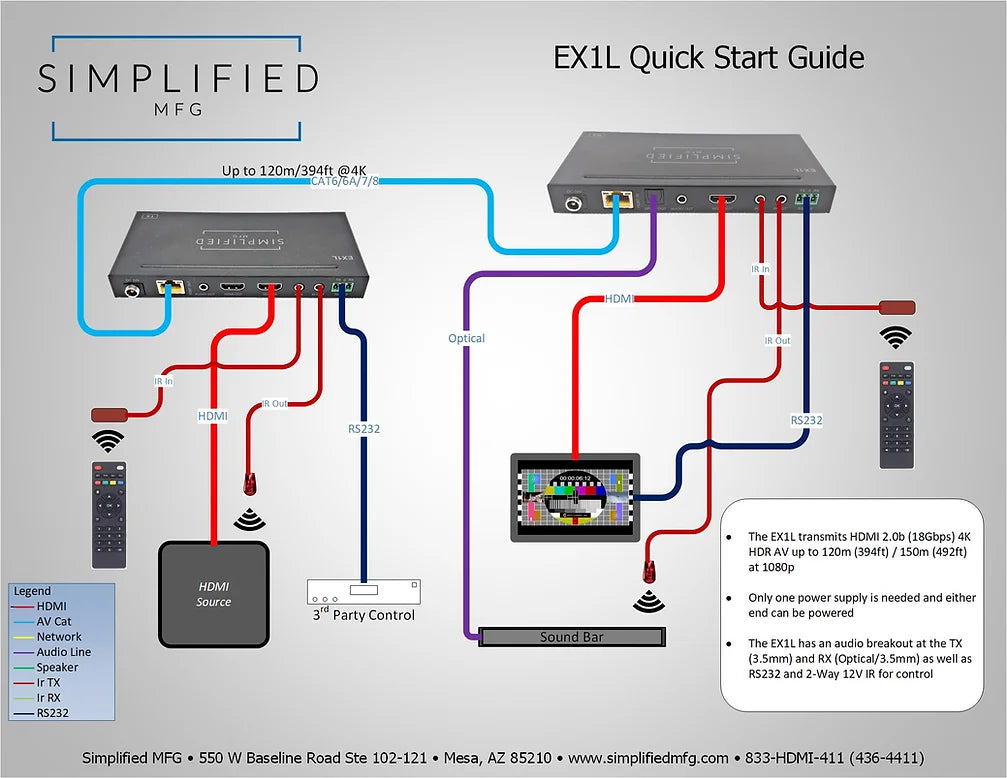

Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
Bidirectional 12V Infrared control signal together with the HDMI signal
Transfer Bidirectional RS232 control signal together with the HDMI signal
Transmission distance: Over CAT6 cable
- 150m/ 492 ft.:
  - 1080P @60Hz36bit; 3D1080P@30Hz36bit;
- 120m/394 ft.:
  - 4K x 2K@30Hz@24bit.
  - 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
3-Year Warranty

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18 Gbps
Video Resolutions	up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	8-bit, 10-bit, 12-bit
HDMI Audio Formats (Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
POE Format	24V
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

Connections

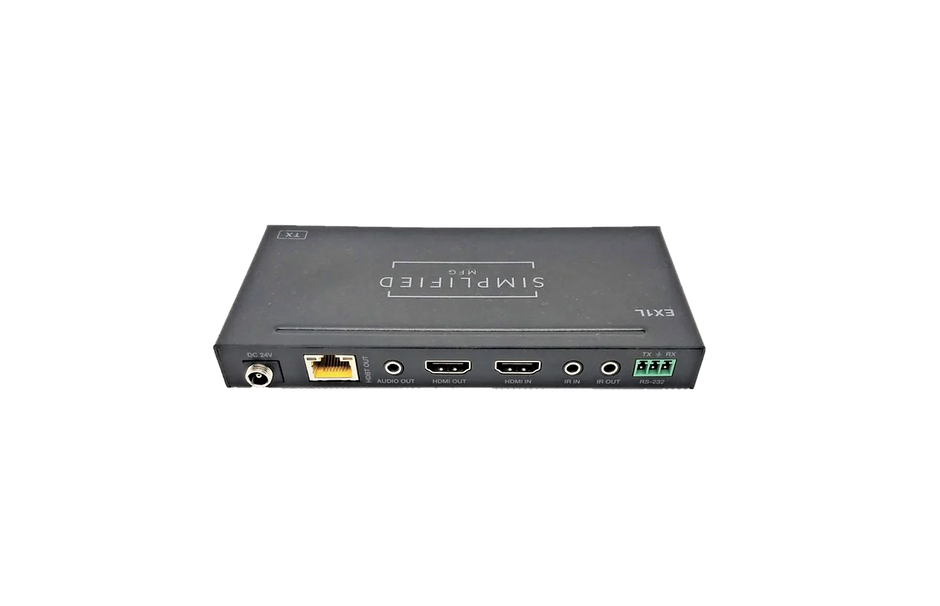

Inputs: Transmitter	1x HDMI Type A [19-pin female]
	1x IR INPUT [3.5mm Stereo Mini-jack]
	1x RS232 [Phoenix jack]
	1x Service [Mini-USB jack]
Inputs: Receiver	1x HDBaseT In [RJ45]
	1x IR INPUT [3.5mm Stereo Mini-jack]
	1x RS232 [Phoenix jack]
	1x Service [Mini-USB jack]
Outputs: Transmitter	1x HDBaseT Out [RJ45]
	1x HDMI Type A [19-pin female]
	1x IR OUTPUT [3.5mm Stereo Mini-jack]

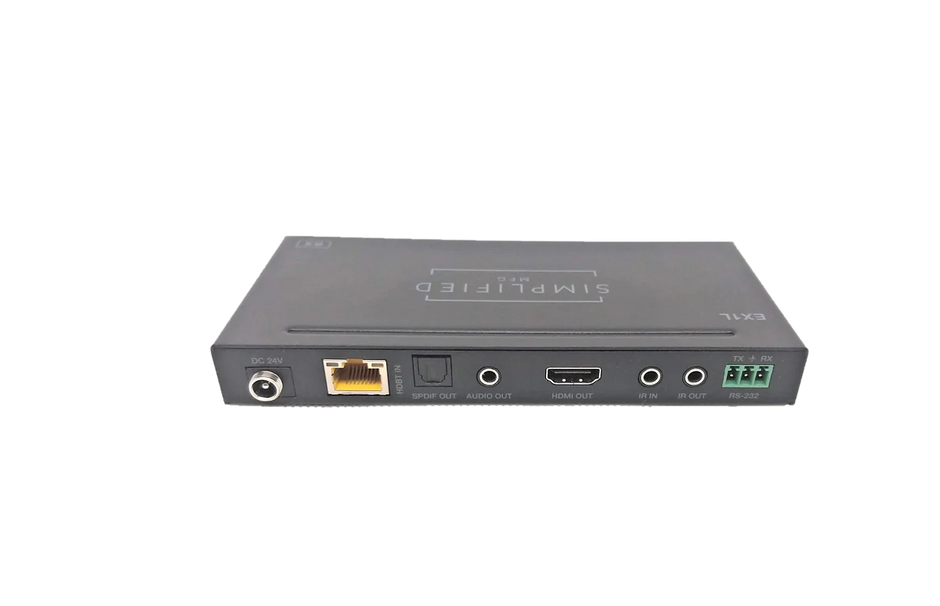

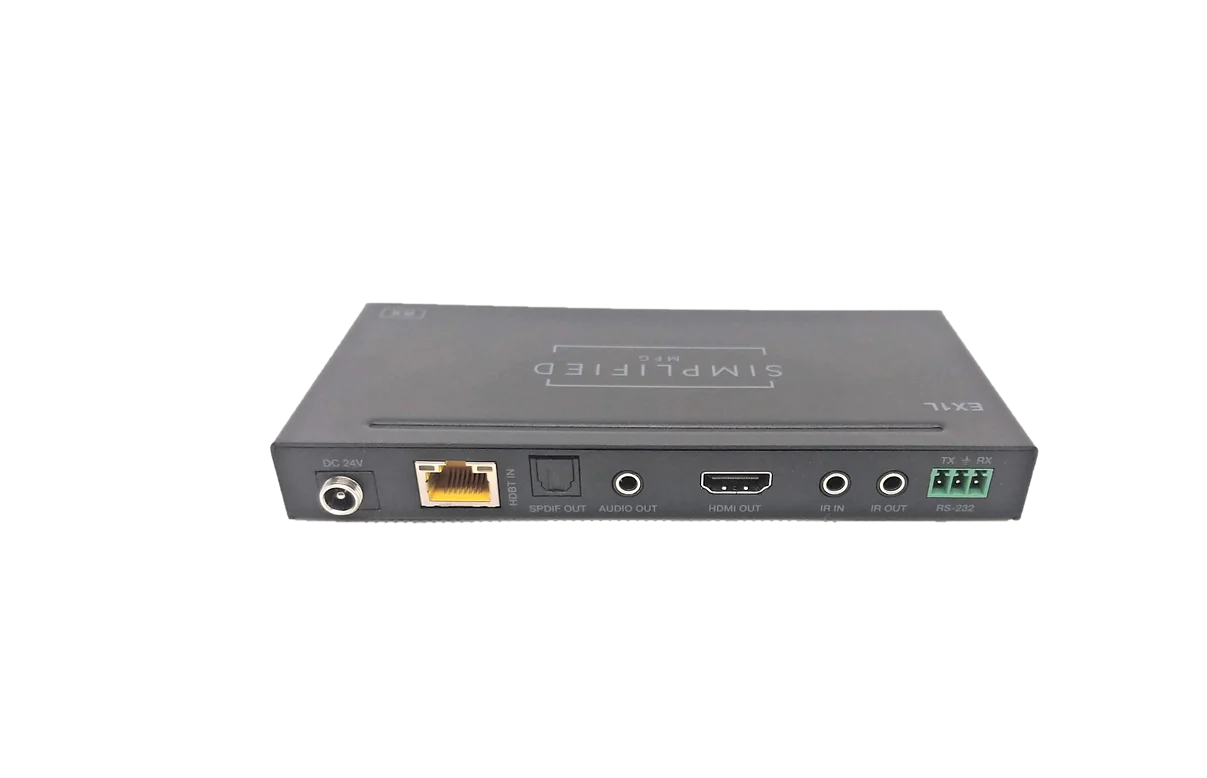

Outputs: Receiver	1x HDMI Type A [19-pin female]
	1x IR OUTPUT [3.5mm Stereo Mini-jack]

Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	5.5" (140mm) [W] x 2.5" (65mm) [D] x 0.7" (18mm) [H]
Weight	160g/5.64 oz.
Power Supply Input	AC100 - 240V 50/60Hz
Power Supply Output	DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	24W (Max)
Operation Temperature	32 - 104°F / 0 - 40°C
Storage temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
