Home Simplified EXAC DEC Extra receiver for EXACKT AV over power line kit

Simplified EXAC DEC Extra receiver for EXACKT AV over power line kit

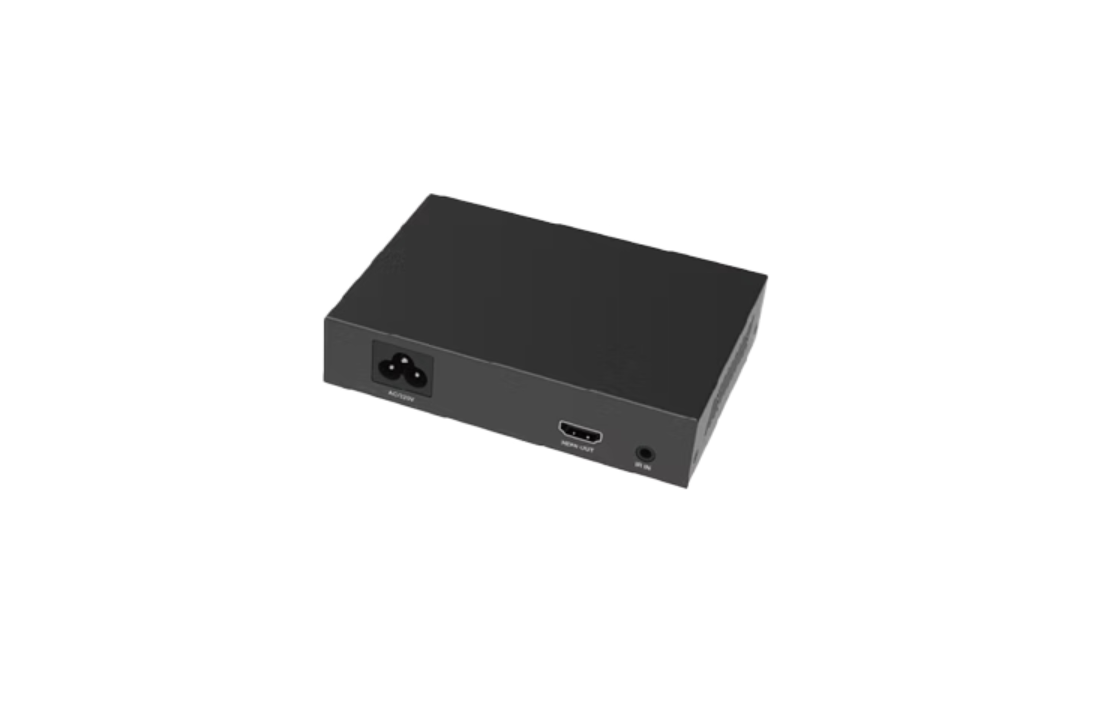

Name: Simplified EXAC DEC Extra receiver for EXACKT AV over power line kit
Brand: Simplified
SKU: EXAC DEC
Price: 179.99 USD
Availability: InStock

Art: EXAC DEC

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Sale price $179.99 -100% Regular price $0.00

Regular price $179.99

Unit price / per

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Description

Product Details

The EXAC DEC is an extra receiver for and only works with the EXACKT. Up to 2 extra receivers (for a total of 3) can be used with the EXACKT. The EXACKT is an HDMI extender that uses the AC wiring as a medium to transmit HDMI signals that have been converted to H.265 from the TX to the RX. This is a"plug and play" solution. Simply plug the HDMI source into the TX and plug it into the AC outlet, then connect the RX to the display and plug it into the AC outlet, and done!

Primary Use: Adding an extra RX to the EXACKT extender over AC kit. Please see EXACKT model for additional details.

Features

• Up to 2 additional EXAC DEC devices can be used with the EXACKT for a total of 3

• HDMI 1.3 (6.75Gbps)

• HDCP 1.4 compliant

• Video resolutions up to 1080p (YUV444)

• Stereo Audio LPCM 32kHz., 44.1kHz., & 48kHz. is supported

• IR pass-thru from RX to TX for source control (IR kit included)

• Supports 480i/480p/720p/1080i/1080p/1400x1050 resolutions

• 3-Year warranty

Specifications

Technical
HDMI Compliance	HDMI 1.3 (6.75Gbps)
HDCP Compliance	HDCP 1.4
Video Bandwidth	6.75Gbps
Video Resolutions	480i/480p/720p/1080i/1080p/1400x1050
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	8-bit, 10-bit, 12-bit
HDMI Audio Formats	LPCM 2.0 32kHz., 44.1kHz., & 48kHz.
ESD Protection: Human Body Model	±8kV (air-gap discharge)
	±4 kV (contact discharge)

Connections
Inputs [RX]	1 IEC320 AC cord connection, 1 3.5mm minijack [IR]
Outputs [RX]	1 Type-A [19-pin] HDMI

Mechanical
Housing	Metal Enclosure
Color	Matte Black
Dimensions	135mm (5.31”)[W] x 96.5mm (3.8”)[D] x 29mm (1.14”)[H]
Weight	405g (14.28 oz.)
Power Supply	Input: AC 100 - 240V 50/60Hz.
Power Consumption	3.5W Max
Operating Temperature	-10°C ~ 45°C / 14°F ~ 113°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% (non-condensing)
