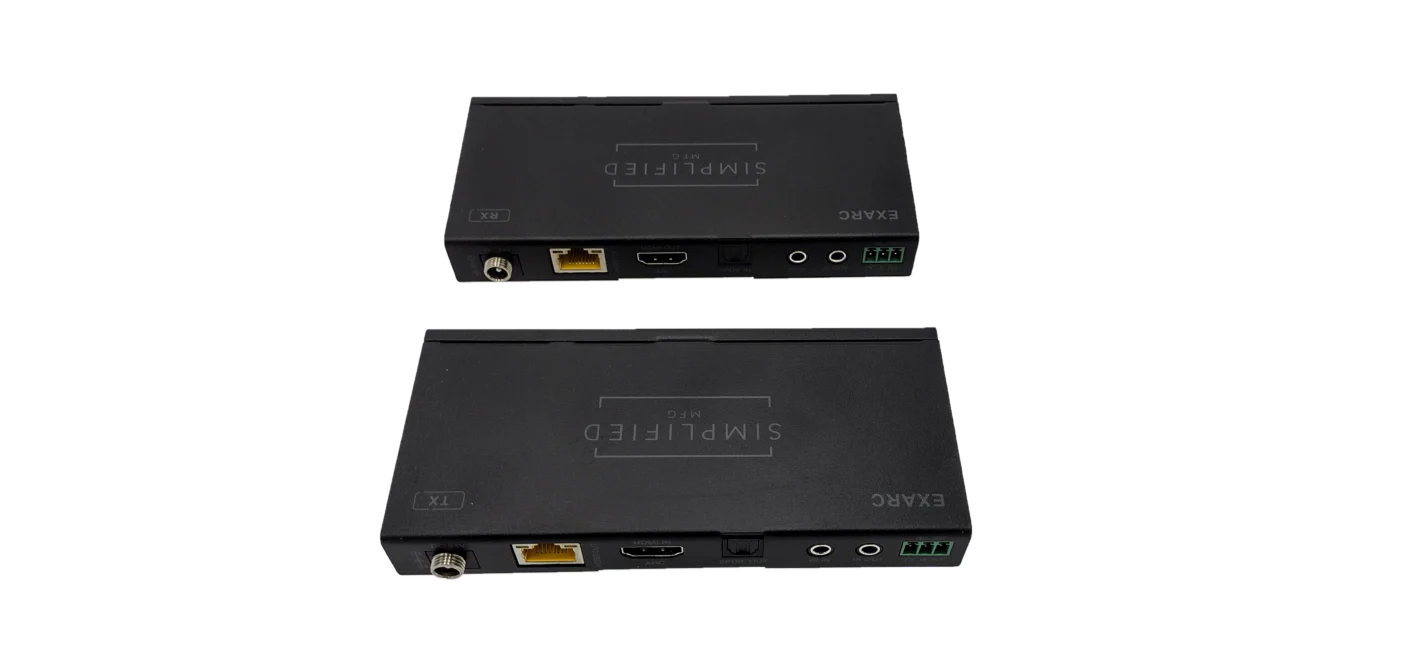

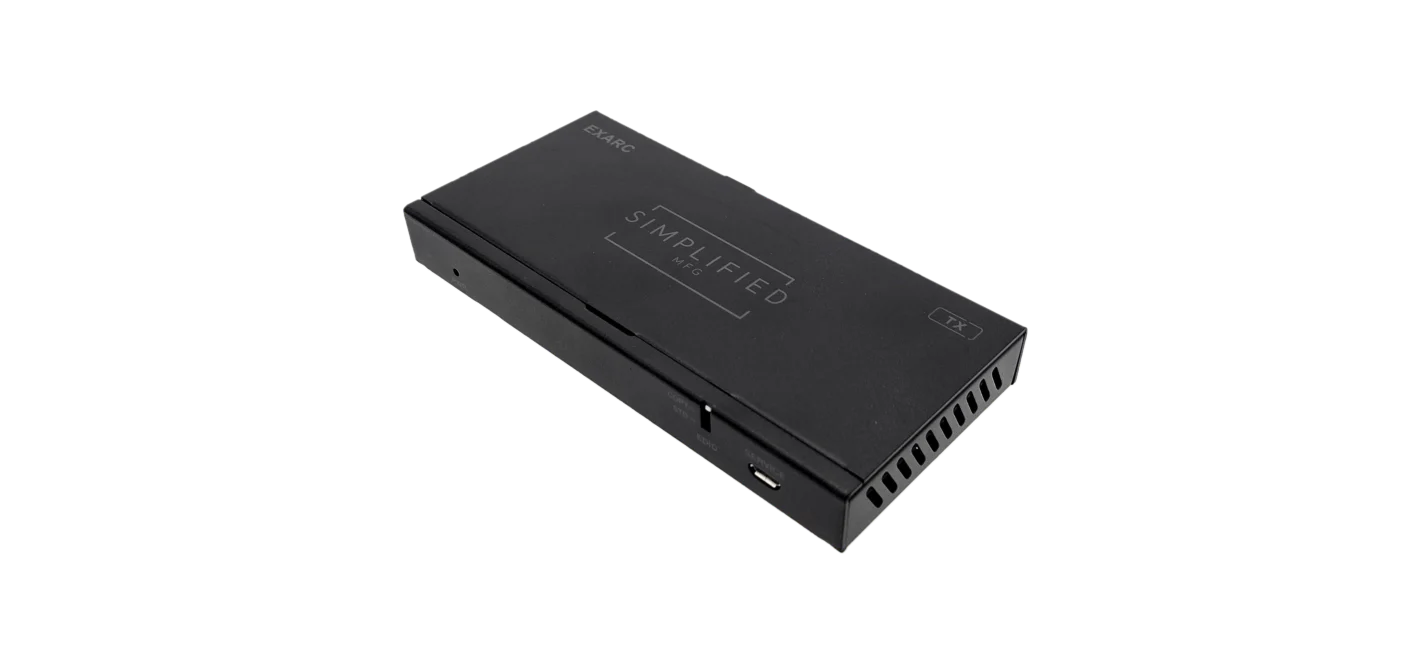

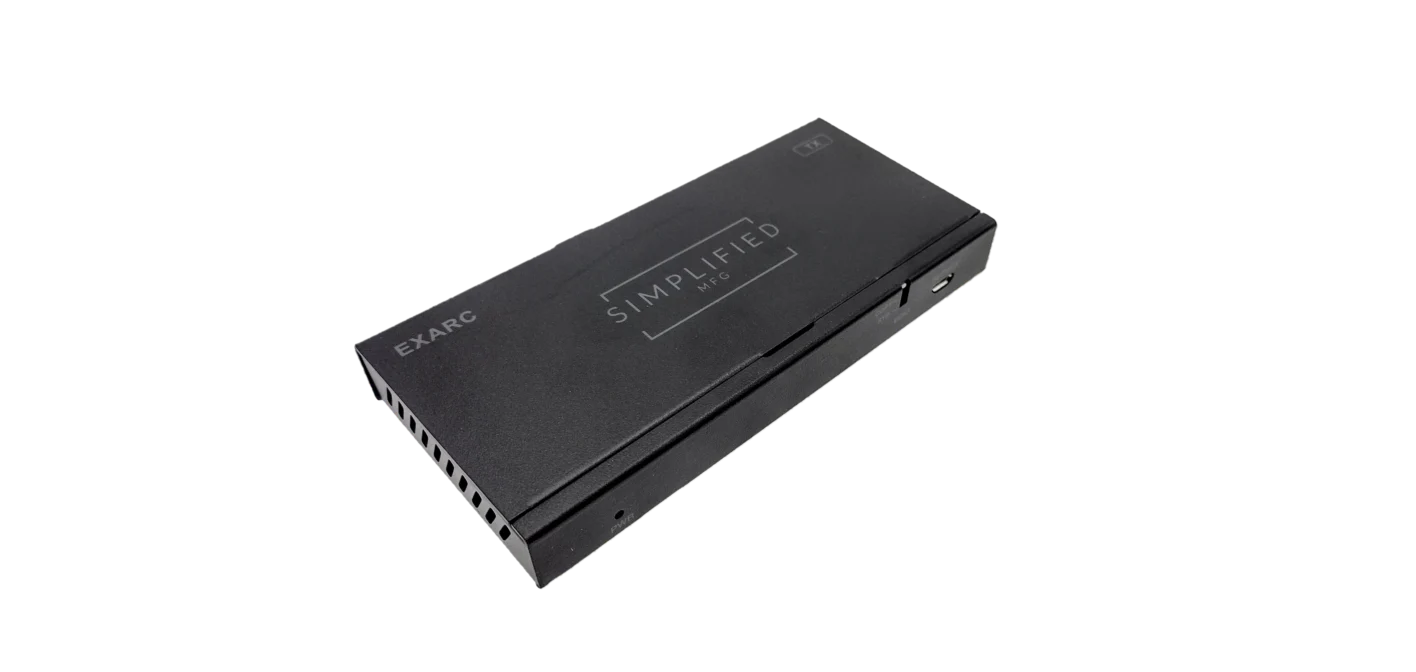

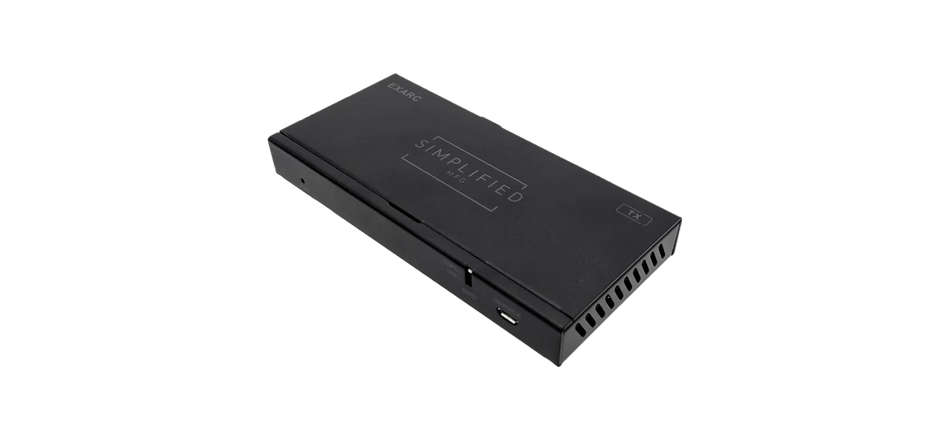

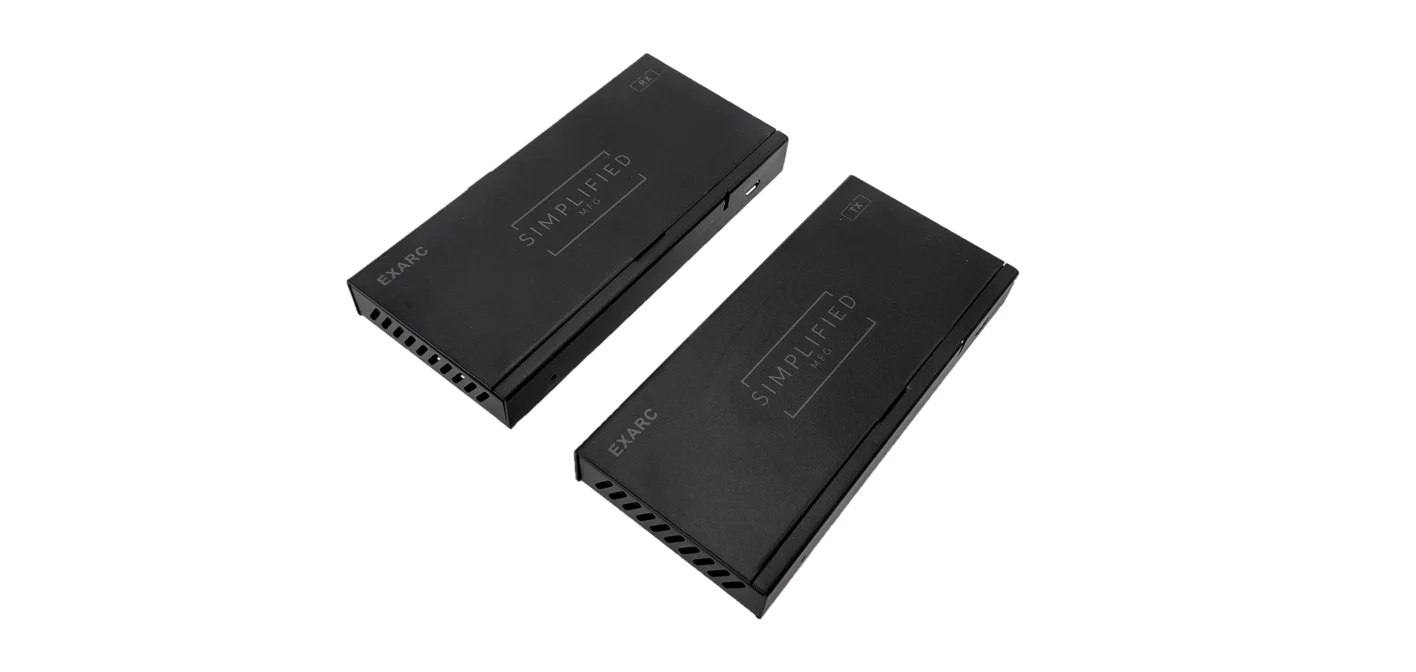

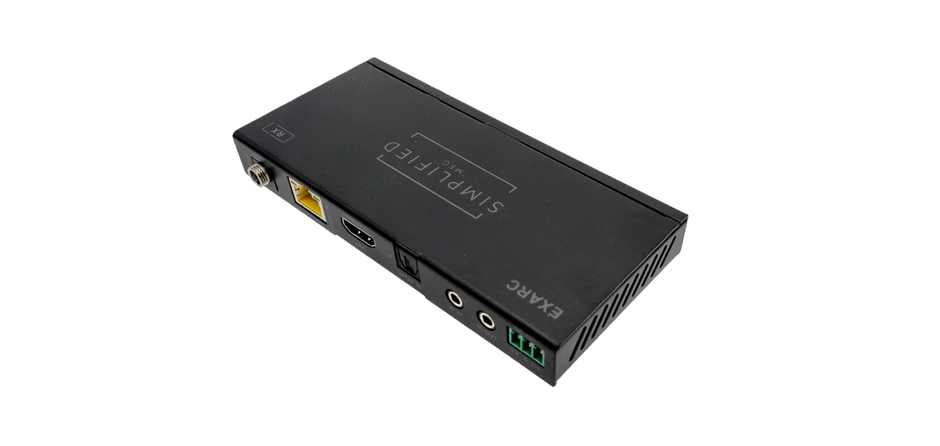

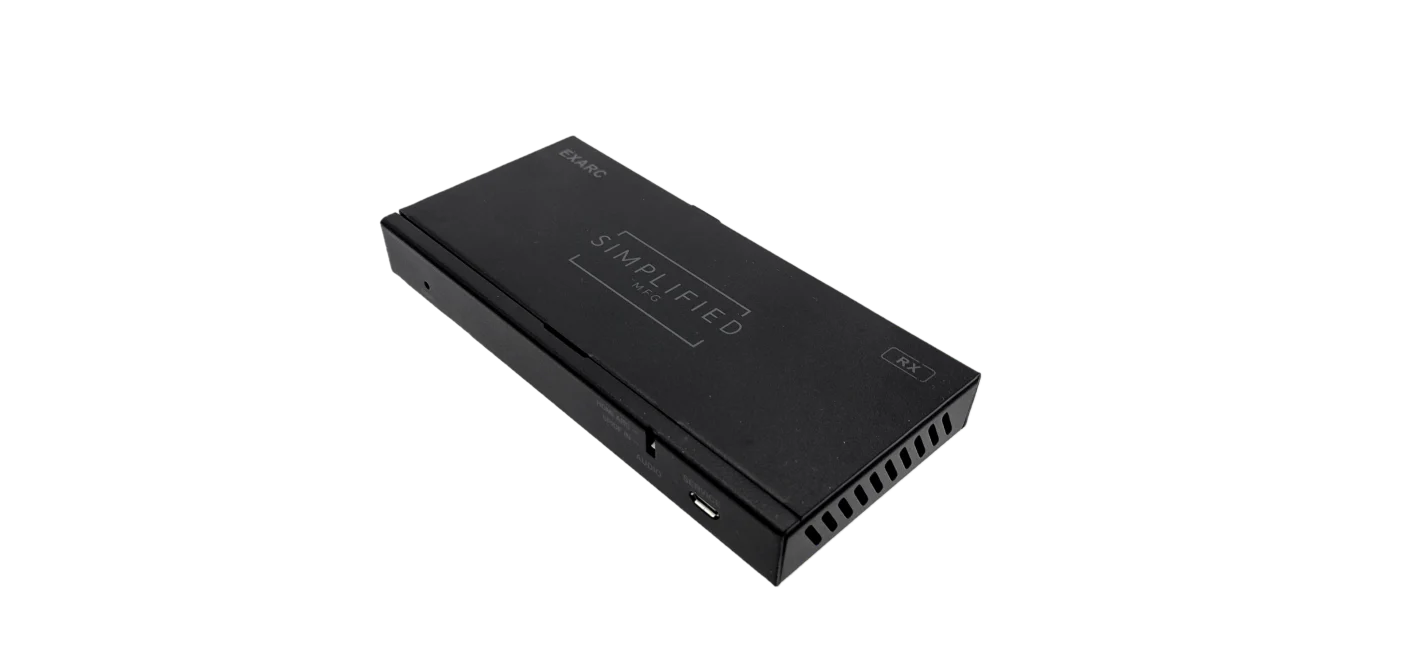

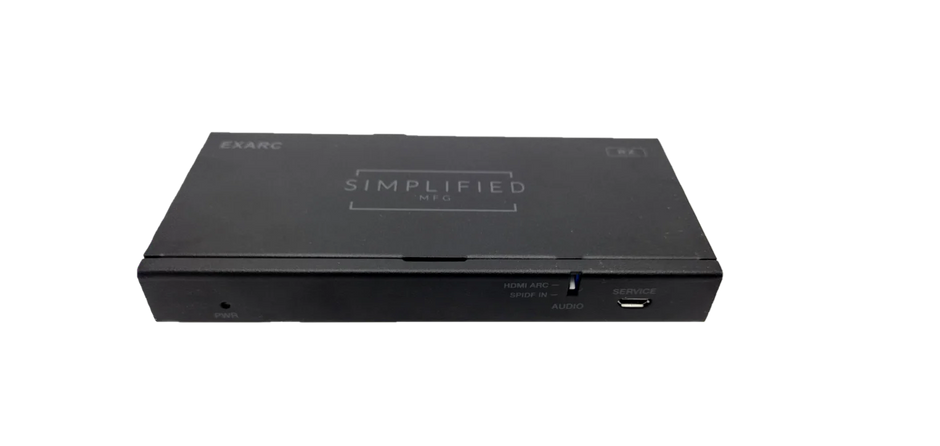

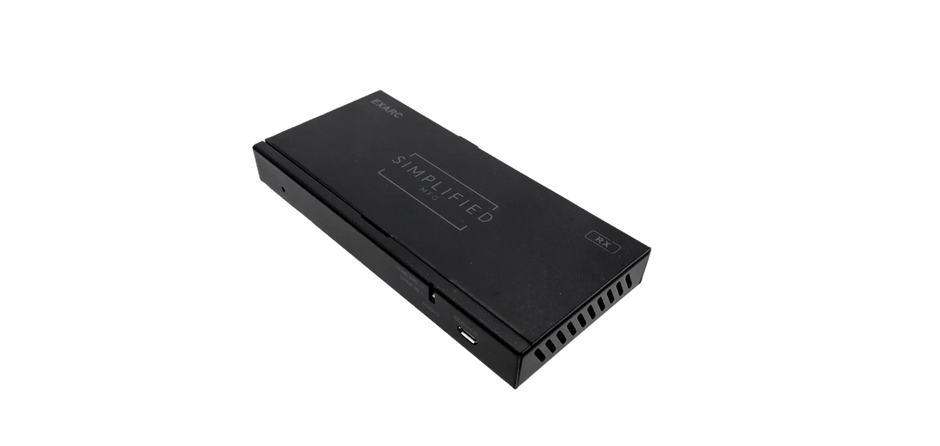

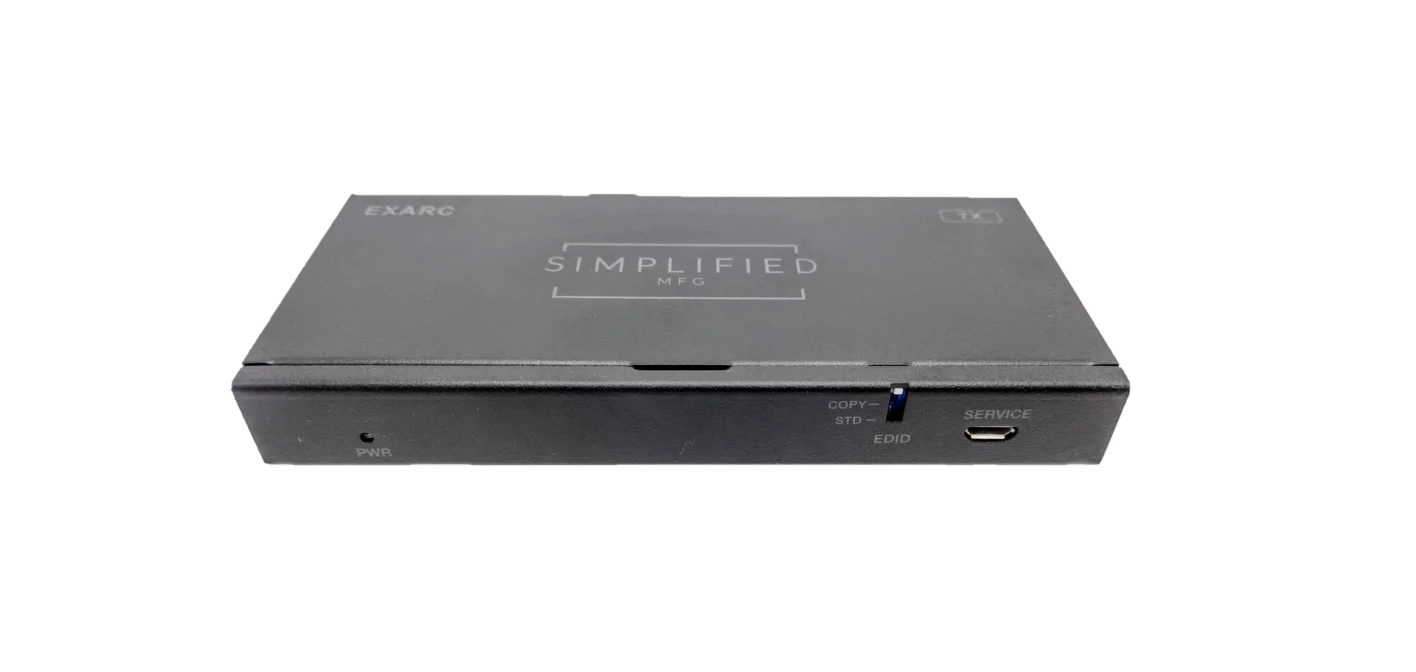

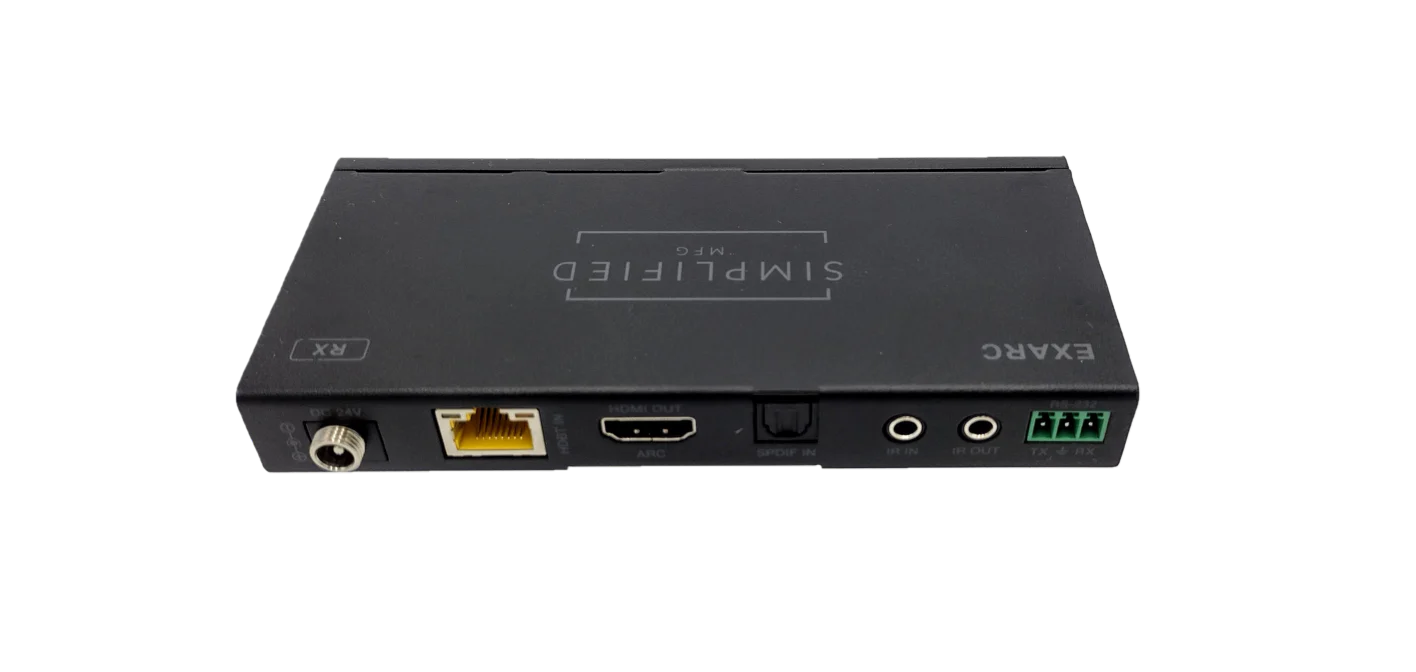

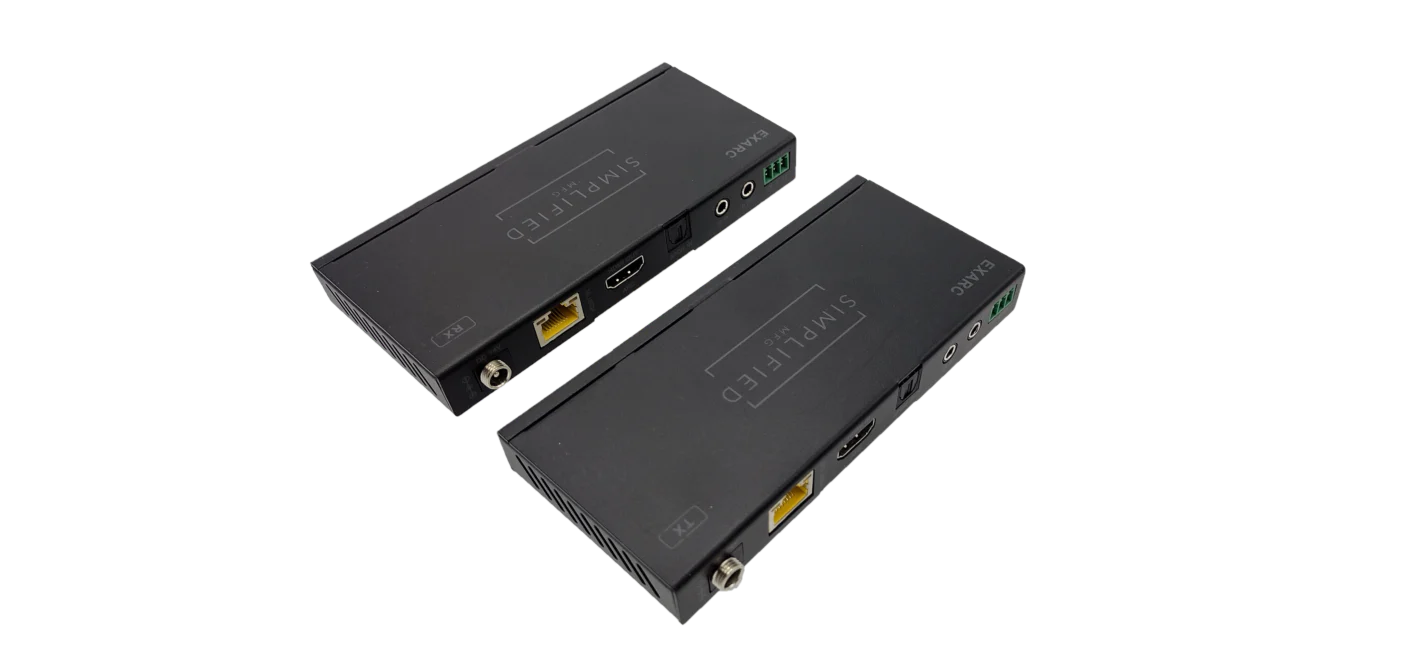

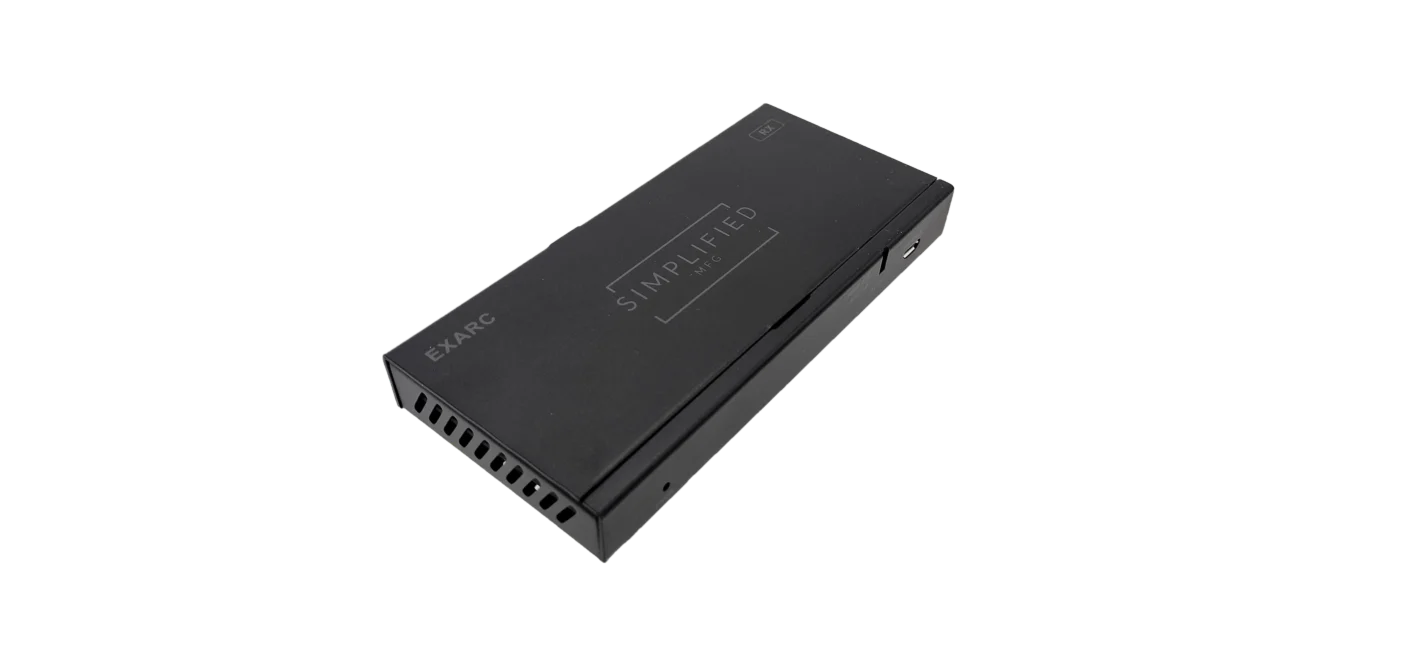

Simplified EXARC 4K HDMI 40m/131 ft. on Cat6/Cat 5e 18Gbps extender

Simplified EXARC 4K HDMI 40m/131 ft. on Cat6/Cat 5e 18Gbps extender

Name: Simplified EXARC 4K HDMI 40m/131 ft. on Cat6/Cat 5e 18Gbps extender
Brand: Simplified
SKU: EXARC
Price: 599.99 USD
Availability: InStock

Art: EXARC

In stock: 26 available

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

$599.99 -100% $0.00

$599.99

Product Details

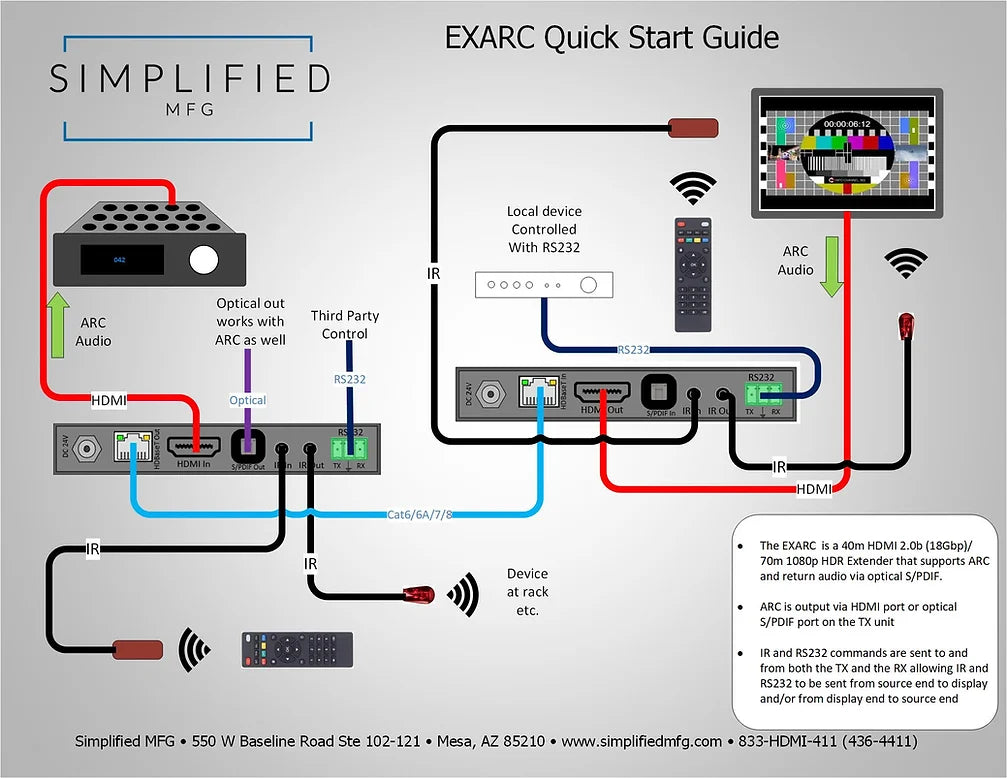

The EXARC 18Gbps HDMI Extender is a device which can extend your HDMI signal over 230t/70meters to a compatible 1080p display, 131ft/40meters to a HDMI 2.0b 18gbps compatible display. The EXARC supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. The multifunction ARC/Audio feature makes the EXARC great when you need to bring audio back to the TX/Rack from the display. The ARC or S/PDIF [optical] can be output at the TX via the HDMI cable (ARC) or via the S/PDIF [optical] output. It also supports Bidirectional 12V Infrared control and RS232.

Primary Use: Extending HDMI AV signals along with control, ARC or S/PDIF return from display over a single Category cable.

Features & Benefits

HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
HDR8/10/10+ (High Dynamic Range) pass through
Dolby Vision™ pass through
Supports ARC or S/PDIF return from display to TX/Rack via HDMI and/or optical S/PDIF
Supports HDMI High Bit Rate(HBR) audio pass through
Supports Dolby+, Atmos and DTS-X
Supports CEC
Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
12V Bidirectional Infrared control signal together with the HDMI signal.
Transfers Bidirectional RS232 control signal together with the HDMI signal.
Transmission distance: Over CAT6 cable
- 70 meters/230ft.
  - 1080P @60Hz36bit; 3D1080P@30Hz36bit;
- 40 meters/131ft.
  - 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
3-Year Warranty

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18 Gbps
Video Resolutions	up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	8-bit,10-bit, 12-bit
HDMI Audio Formats (Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
POE Format	24V
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

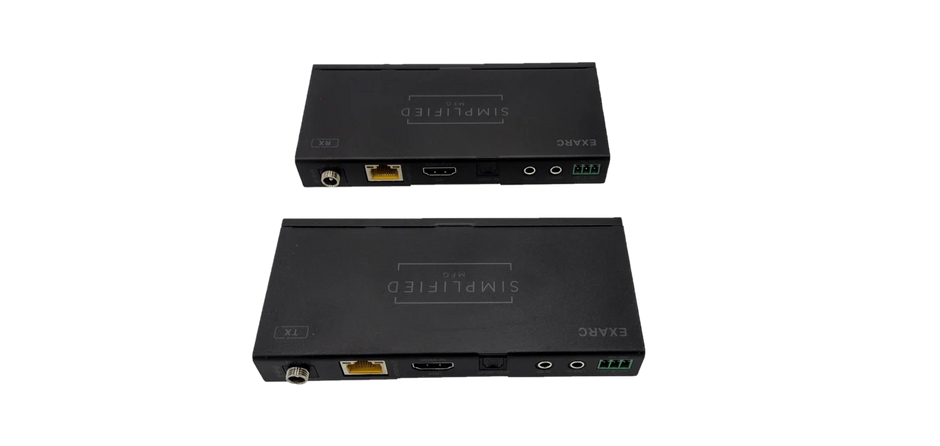

Connections

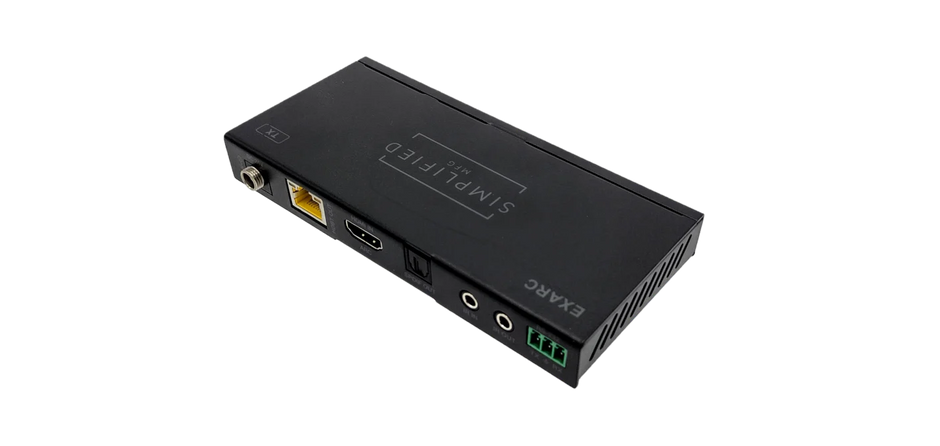

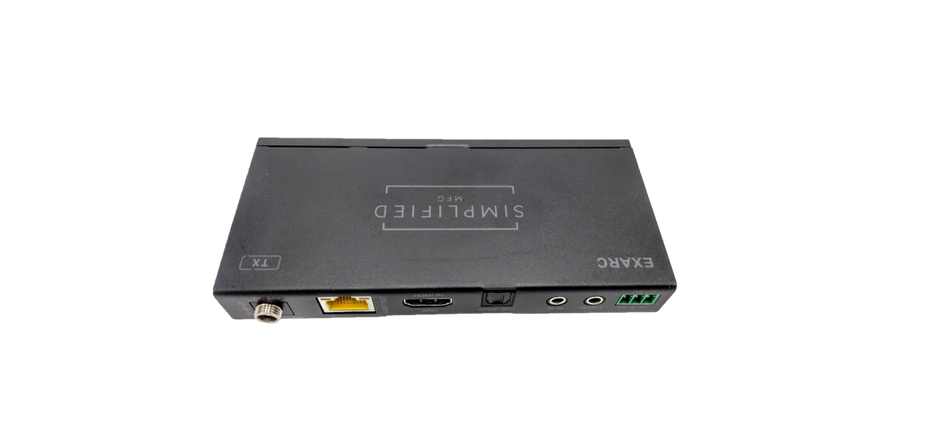

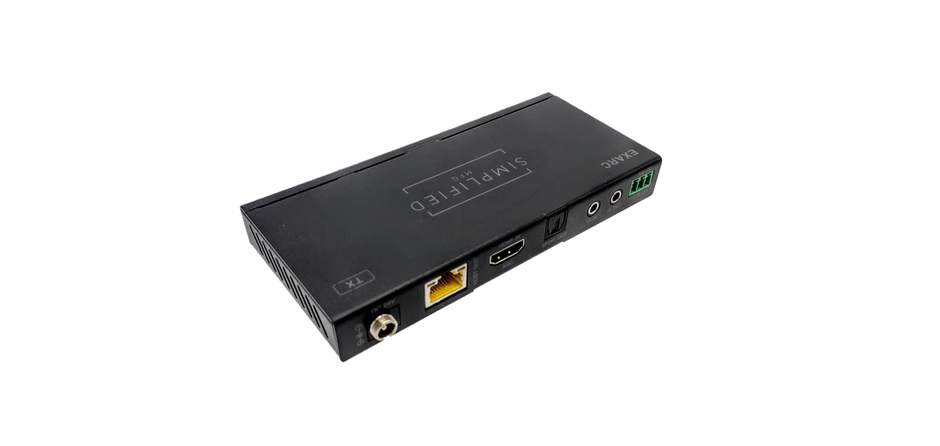

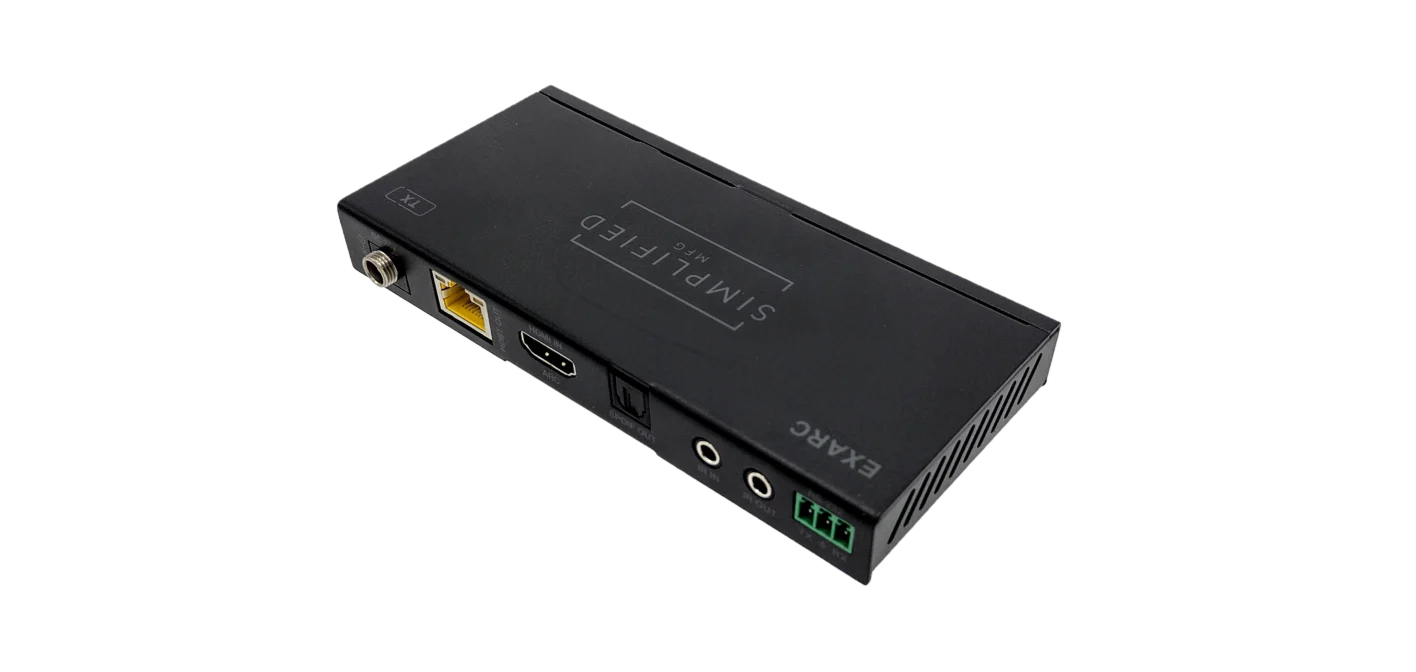

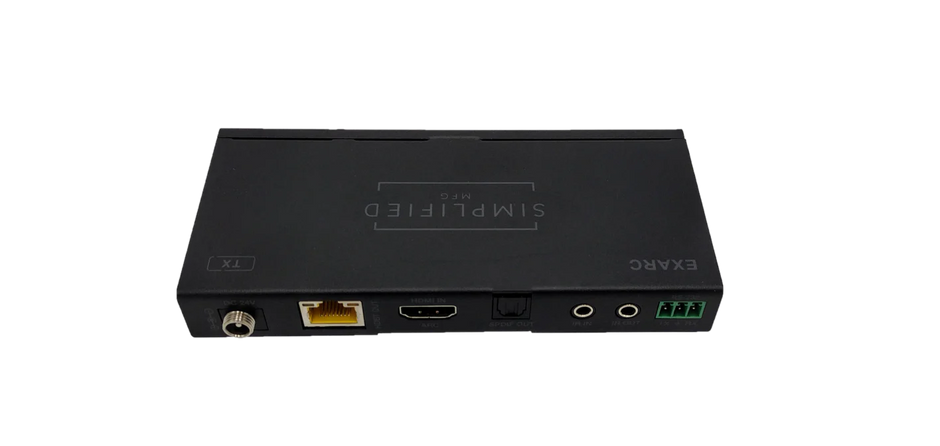

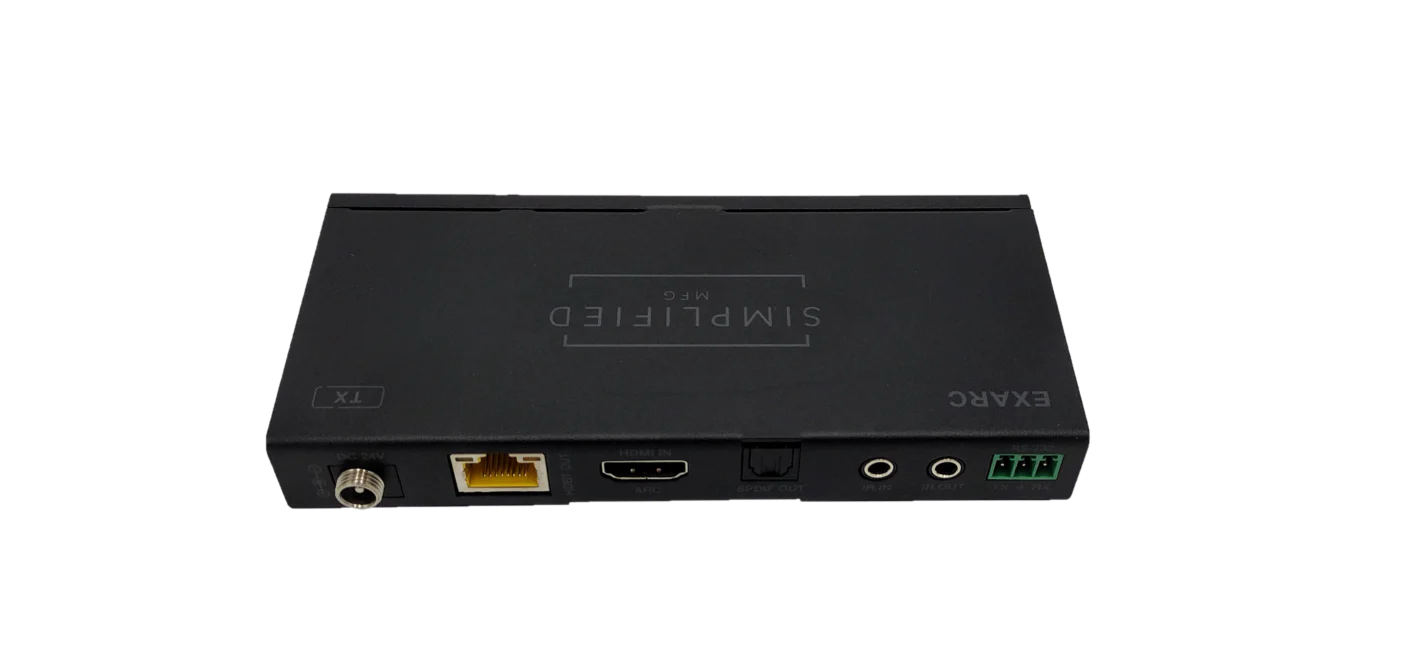

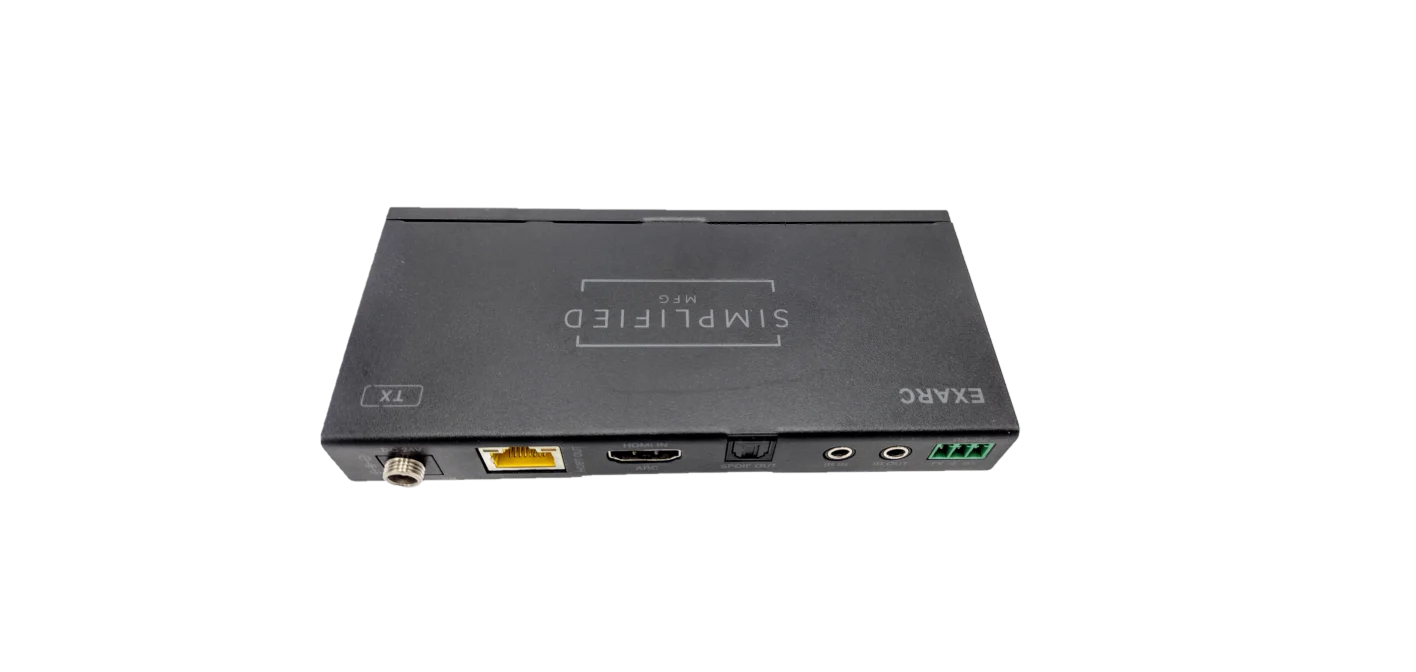

Inputs: Transmitter	1x HDMI Type A [19-pin female]
	1x IR INPUT [3.5mm Stereo Mini-jack]
	1x RS232 [Phoenix jack]

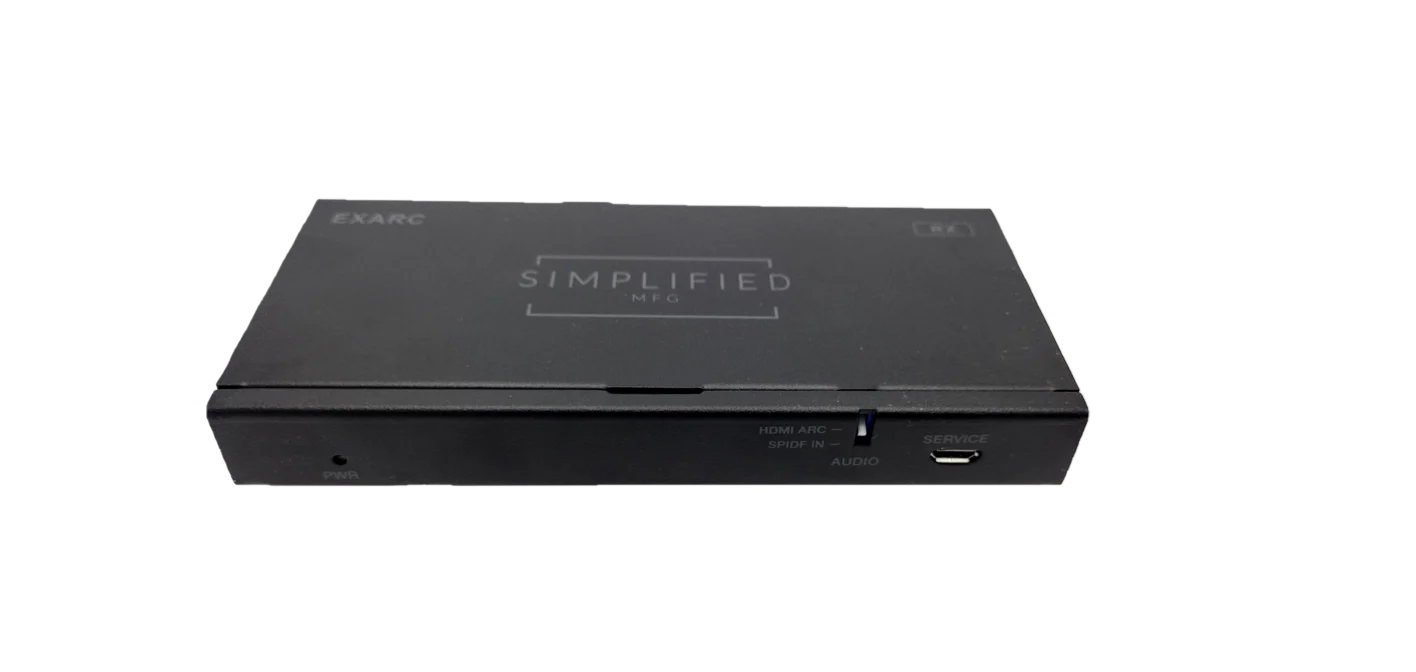

	1x Service [Mini-USB jack

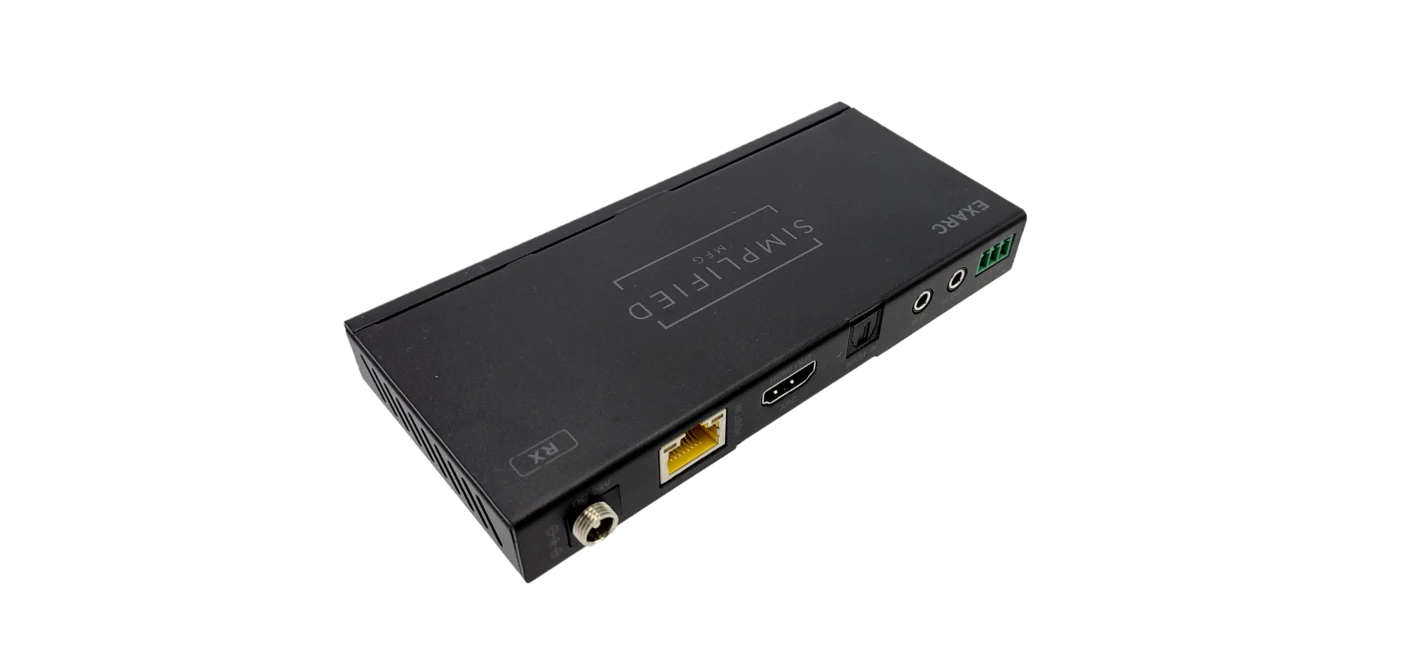

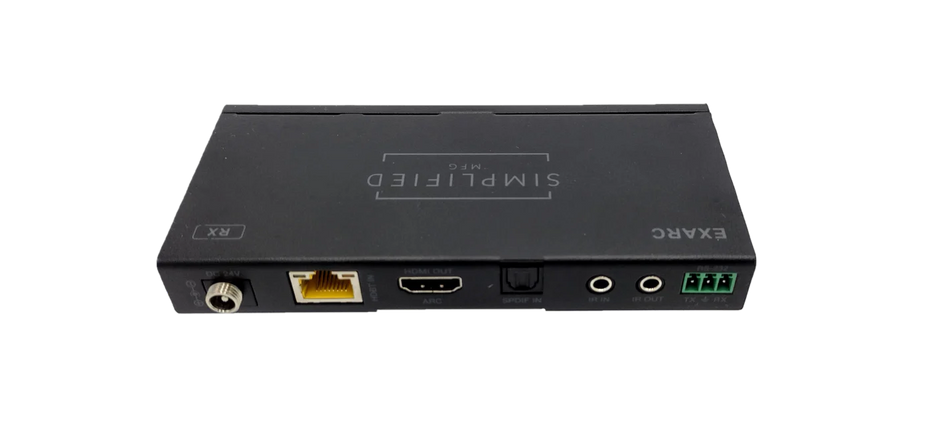

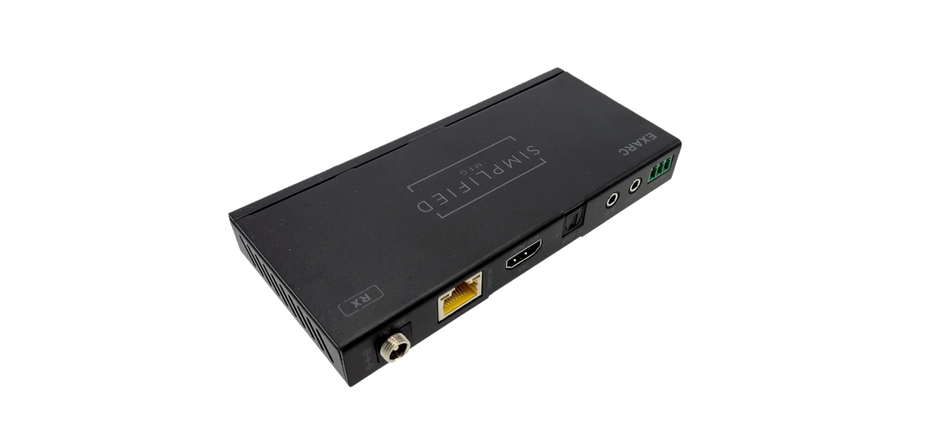

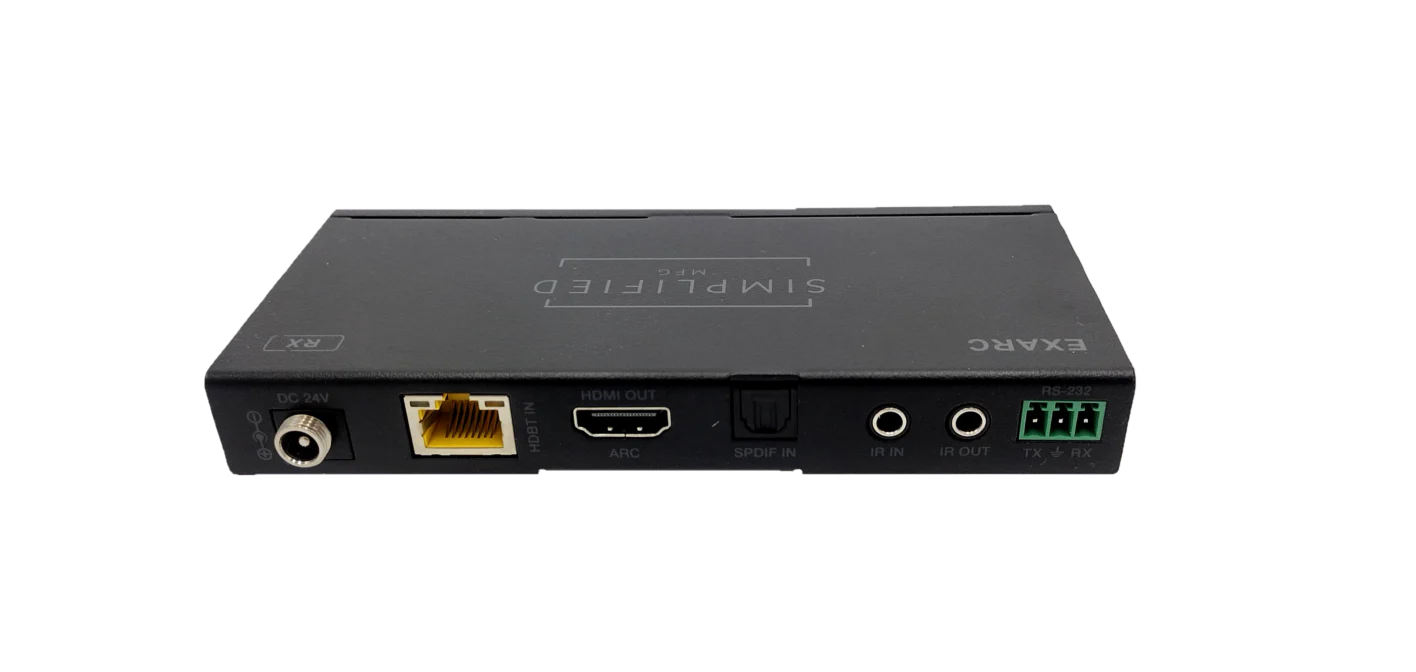

Inputs: Receiver	1x HDBaseT In [RJ45]
	1x IR INPUT [3.5mm Stereo Mini-jack]
	1x RS232 [Phoenix jack]
	1x Service [Mini-USB jack]
Outputs Transmitter	1 x HDBaesT [RJ-45]
	1 x Optical S/PDIF
	1 x 3.5mm Mini [12V IR]

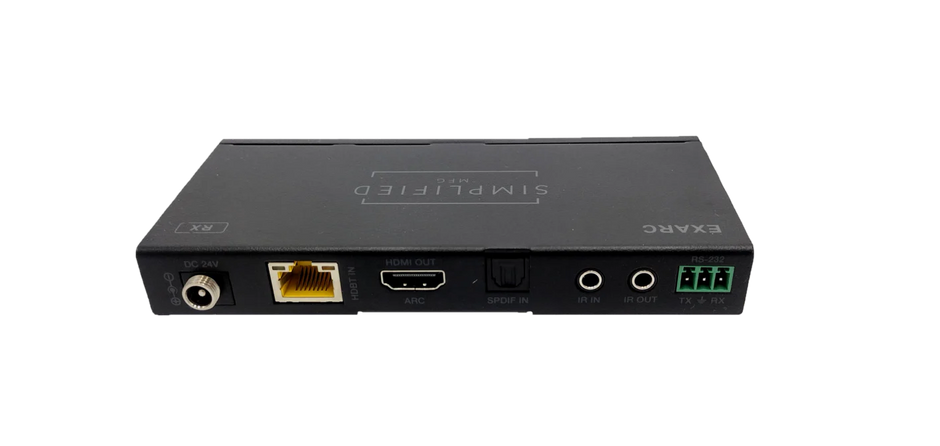

Outputs Receiver	1x HDMI Type-A [19-Pin]
	1 x 3.5mm Mini 12V IR

Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	183mm/7.2" [W] x 88mm/3.5" [D] x 18mm/0.71" [H]
Weight	450g/15.88 oz.
Power Supply Input	AC100 - 240V 50/60Hz
Power Supply Output	DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	24W (Max)
Operation Temperature	32 - 104°F / 0 - 40°C
Storage temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
