Simplified EXeARC1 eARC Extender
Product Details
50m/164ft. 4K HDMI 2.0b (18Gbps) extender on Cat6A/6 supporting uncompressed eARC

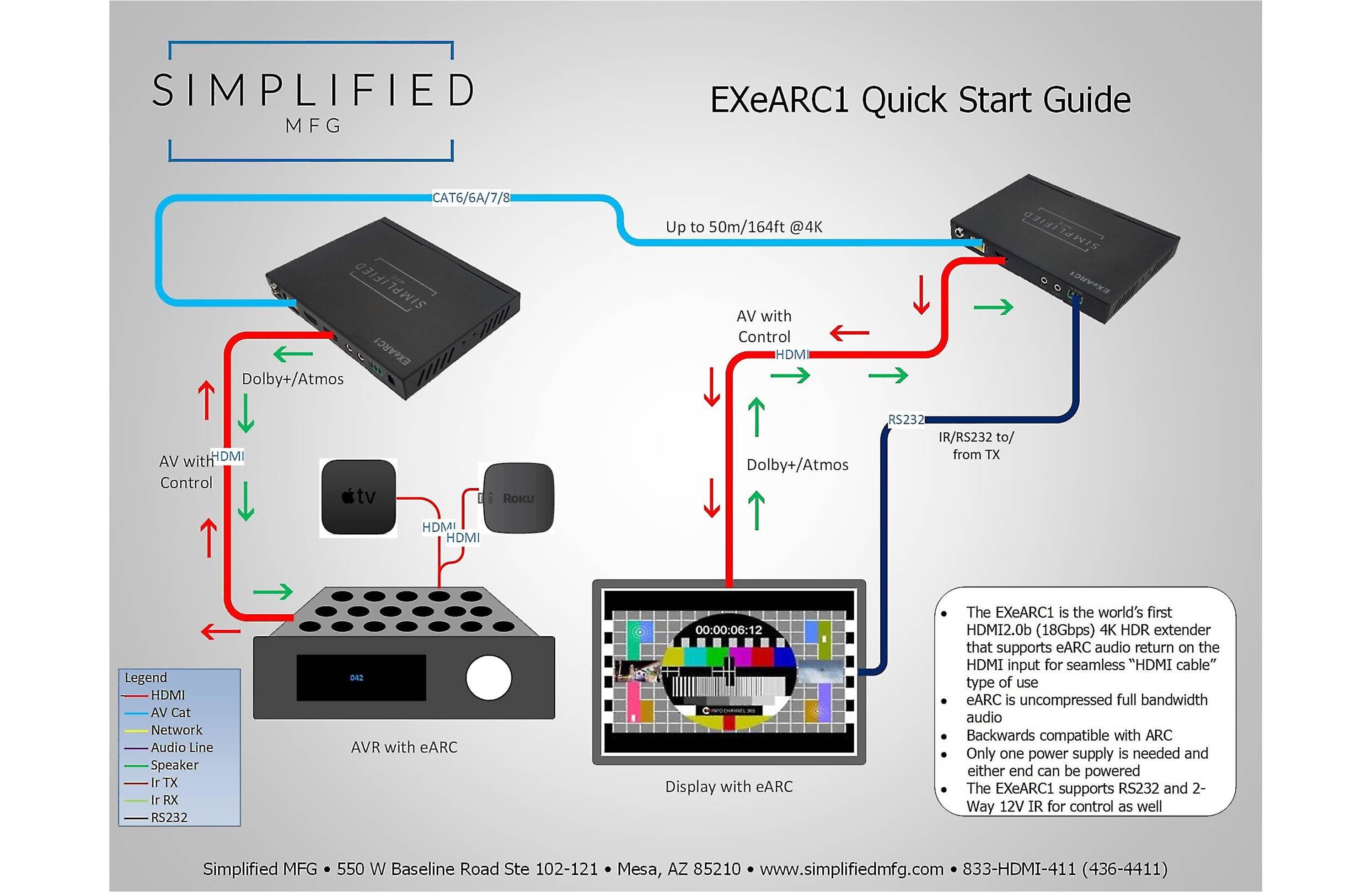

Created in 2021, the EXeARC1 18Gbps HDMI 2.0b extender was the first of its kind to bring eARC back from the display to the transmitter end. With this device you can bring uncompressed Dolby+/Atmos audio from your display back to the source/rack up to 50m/164ft. You can use it in ARC or eARC mode. The EXeARC1 supports HDR10+ and DolbyVisionā¢ as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, together with the 18Gbps HDMI 2.0b signal.
Primary Use: Extending HDMI AV signals along with control, and eARC return from display over a single Category cable. *Cat5e may be used, but some loss of distance may occur.
Features
|
eARC and ARC are fully supported to bring Dolby+ and Atmos audio back to the system rack or AVR |
|
ā¢ HDMI 2.0b (18Gbps) |
|
ā¢ HDCP 2.2, HDCP 1.4 and DVI compliant |
|
ā¢ Video resolutions up to 4K2K@50/60Hz (YUV444) |
|
ā¢ HDR10+ and DolbyVisionā¢ Support |
|
ā¢ Supports CEC Pass-thru |
|
ā¢ Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed) |
|
ā¢ Bidirectional Infrared control signal together with the HDMI signal |
|
ā¢ Transfer Bidirectional RS232 control signal together with the HDMI signal |
|
ā¢ Supports all high-definition audio formats including Dolby+/Atmos |
|
ā¢ 50m/164ft. at 4k/UHD |
|
ā¢ 3-Year warranty |
Specifications
|
Technical |
|
|
|
|
|
HDMI Compliance |
HDMI 2.0b (18Gbps) |
|
HDCP Compliance |
HDCP 2.2, HDCP 1.4 |
|
Video Bandwidth |
18Gbps |
|
Video Resolutions |
up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2Ā |
|
Color Depth |
8-bit, 10-bit, 12-bitĀ |
|
HDMI Audio Formats |
PCM2.1/5.1/7.1CH, Dolby5.1,DTS5.1, Dolby-TrueHD, DTS-HD, Dolby+, Atmos, DTS-XĀ |
|
ESD Protection: Human Body Model |
Ā±8kV (air-gap discharge)Ā |
|
|
Ā±4 kV (contact discharge) |
|
Connections |
|
|
Inputs [TX] |
1 Type-A [19-pin] HDMI, 1 USB Mini [Service port], 1 3.5mm minijack [IR], 1 3-Pin Phoenix [RS-232] |
|
Inputs [RX] |
1 Cat In [RJ-45], 1 USB Mini [Service port],1 3.5mm minijack [IR], 1 3-Pin Phoenix [RS-232] |
|
Outputs [TX] |
1 cat Out [RJ-45], 1 HDMI audio, 1 3.5mm minijack [IR] |
|
Outputs [RX] |
1 Type-A [19-pin] HDMI, 1 3.5mm minijack [IR] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Matte Black |
|
Dimensions |
152mm (6") [W] x 106mm (4.175) [D] x 20mm (0.82") [H] |
|
Weight |
424g (15oz.) |
|
Power Supply |
24V DC, 1Amp (US/EU standards, CE/FCC/UL Certified) |
|
Power Consumption |
12W Max |
|
Operating Temperature |
-10Ā°C ~ 45Ā°C / 14Ā°F ~ 113Ā°F |
|
Storage Temperature |
-20Ā°C ~ 60Ā°C / -4Ā°F ~ 140Ā°F |
|
Relative Humidity |
20~90% (non-condensing) |
