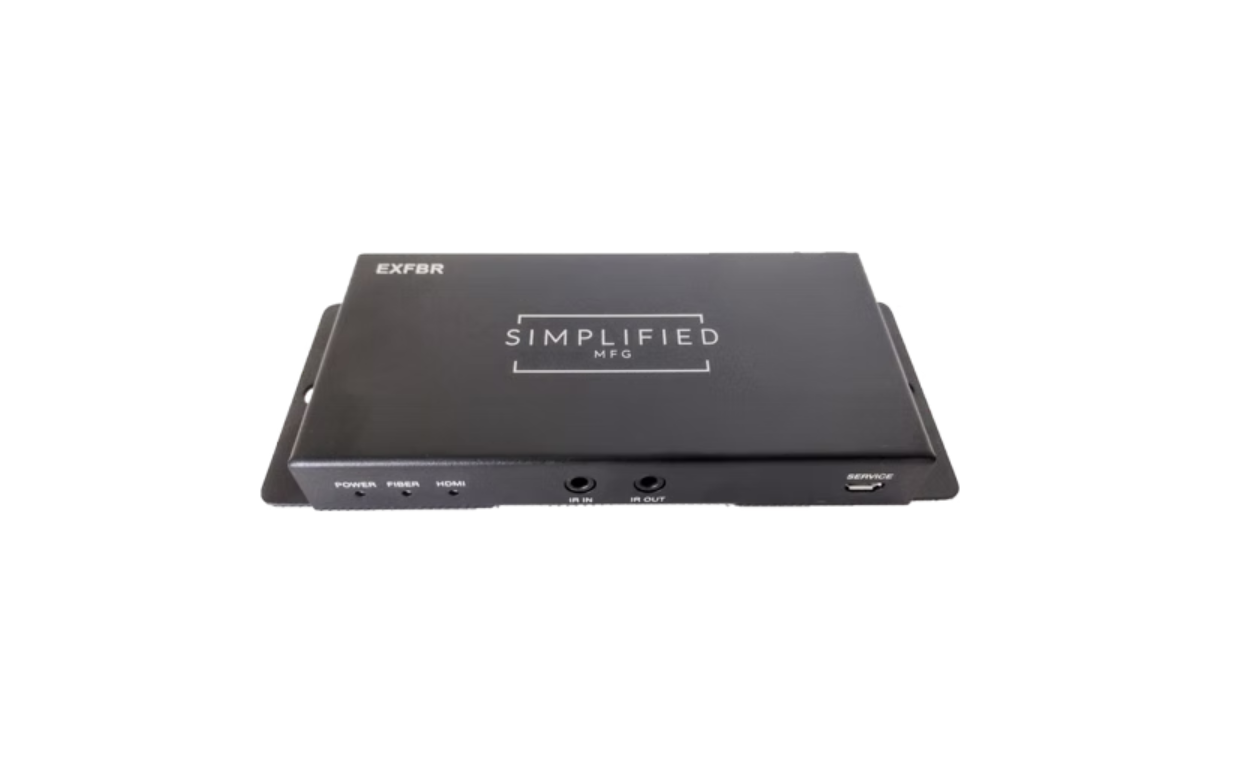

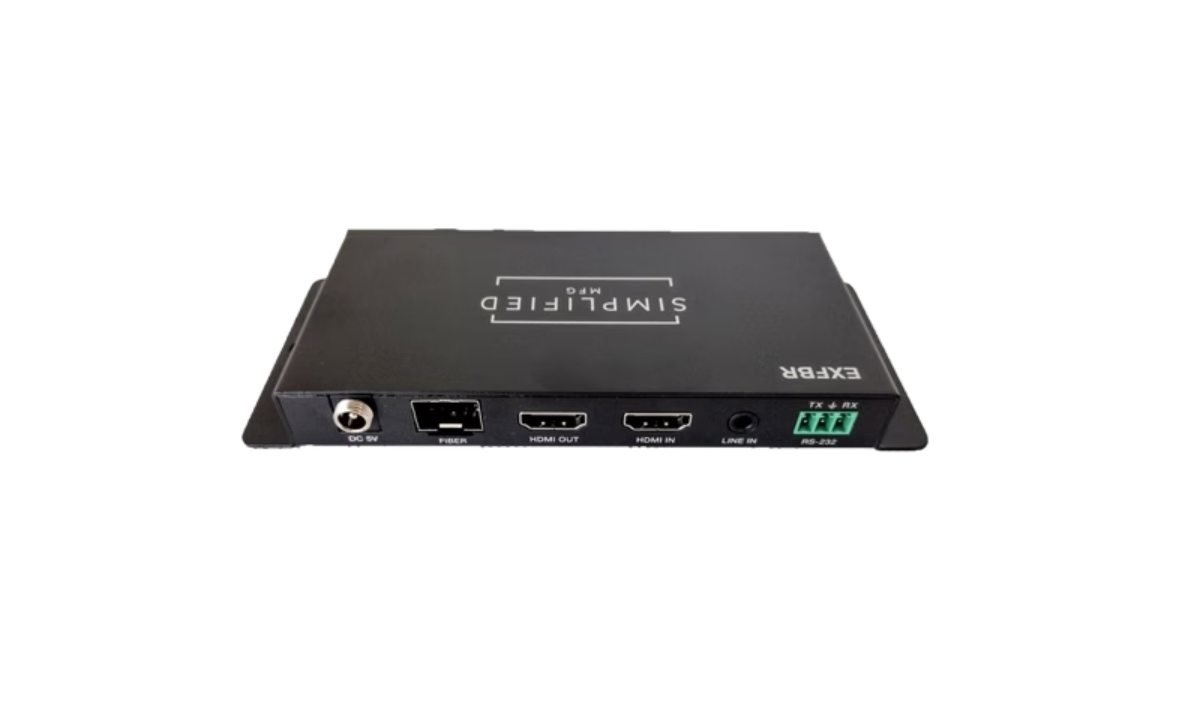

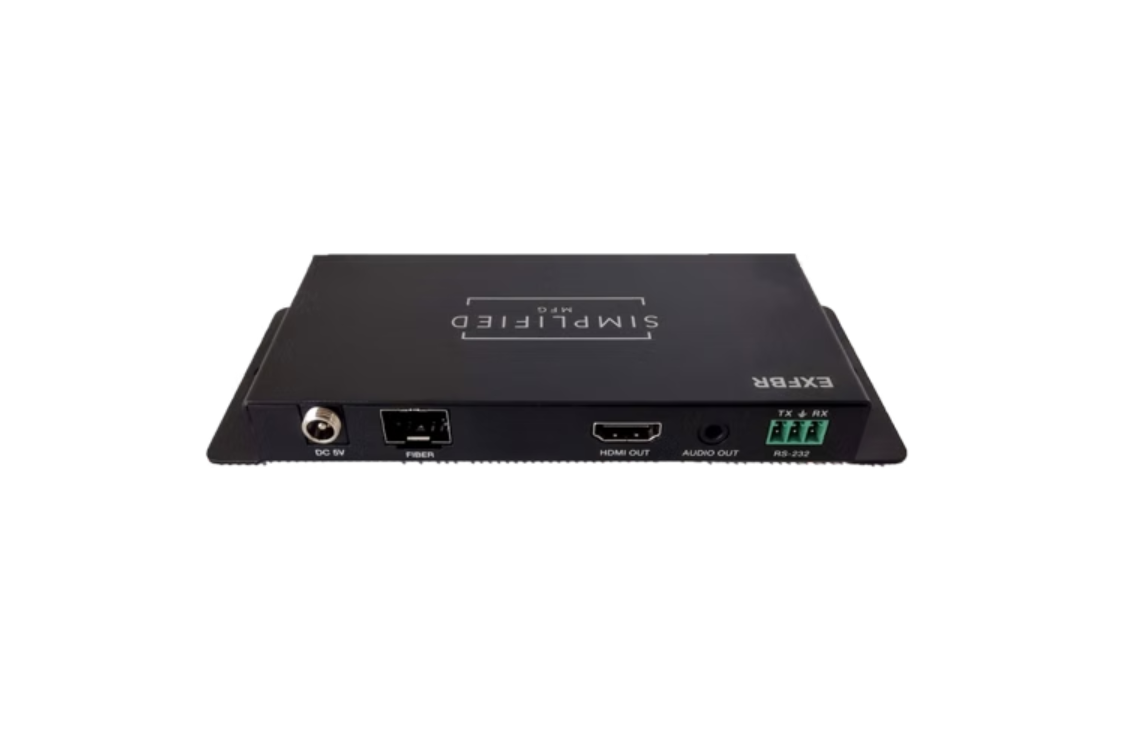

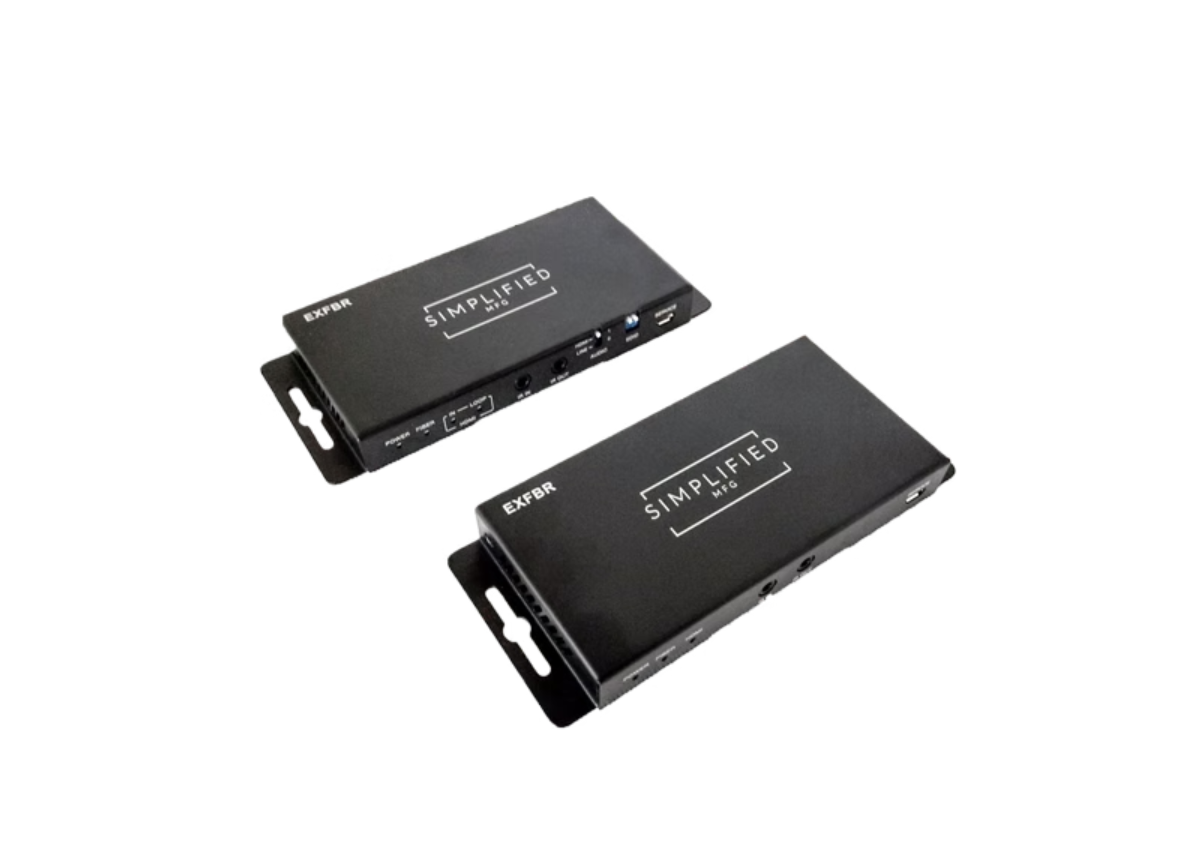

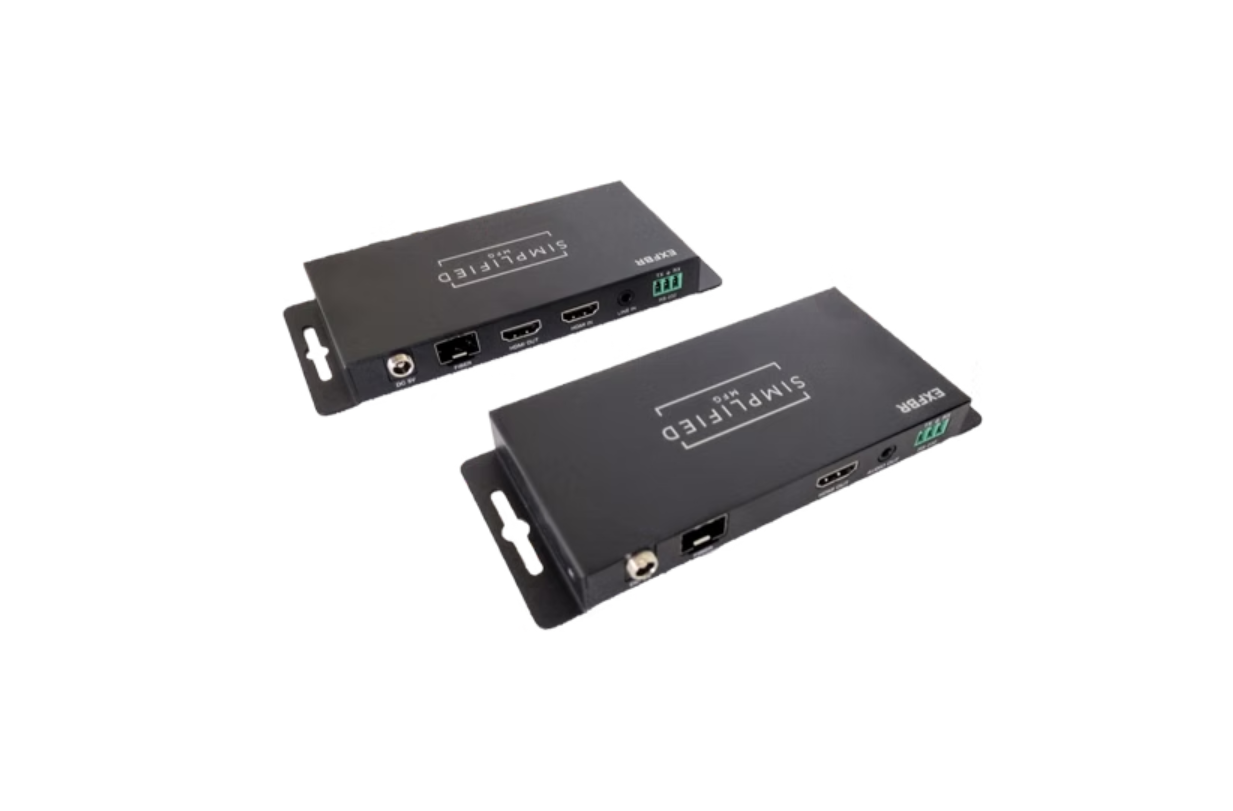

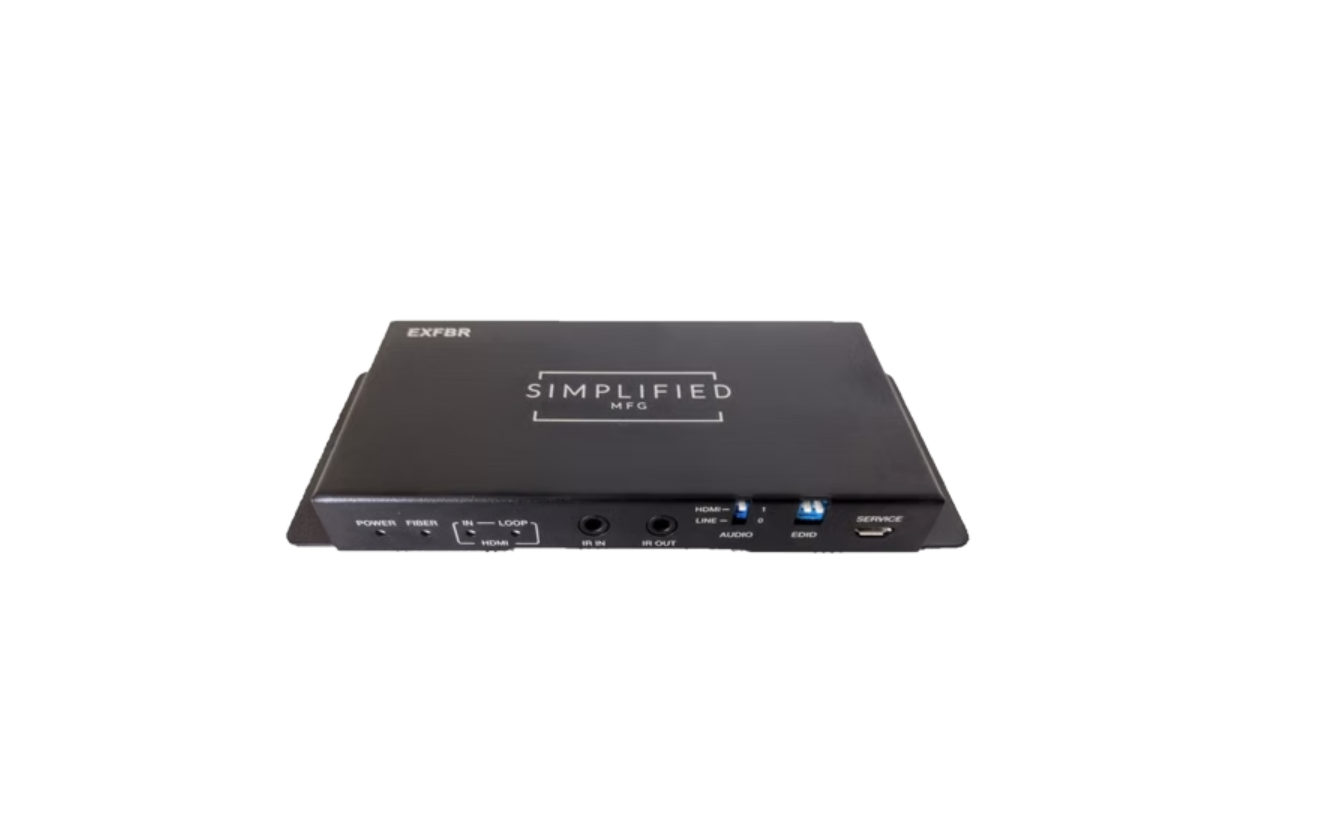

Simplified EXFBR HDMI 2.0b Extender over Fiber

Product Details

The EXFBR 18Gbps HDMI Extender is a device which can extend your HDMI signal over single mode or multimode fiber to a compatible HDMI 2.0b display. The EXFBR supports HDR10+ and DolbyVision™ as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, audio insertion or pass-through, and EDID management. The kit also includes Dual mode (single and multimode fiber) SFP modules.

Features

• HDMI 2.0b (18Gbps)

• HDCP 2.2, HDCP 1.4 and DVI compliant

• Video resolutions up to 4K2K@50/60Hz (YUV444)

• HDR10+ /DolbyVision™ Support

• Includes dual mode SFP modules

• HDMI loop out on TX

• EDID management

• Audio insertion (stereo) or passthrough capability

• Bidirectional Infrared control signal together with the HDMI signal.

• 10,000m/32,808ft. distance on single mode fiber.

• Supports all high-definition audio formats including Dolby+/Atmos.

• 3 Year Warranty

Downloads

Spec Sheet

Manual
