Simplified EXMICRO2i 18Gbps 4K HDMI Extender With 2-Way 12v IR

Simplified EXMICRO2i 18Gbps 4K HDMI Extender With 2-Way 12v IR

Name: Simplified EXMICRO2i 18Gbps 4K HDMI Extender With 2-Way 12v IR
Brand: Simplified
SKU: EXMICRO2i
Price: 279.99 USD
Availability: InStock

Art: EXMICRO2i

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

$279.99 -100% $0.00

$279.99

Product Details

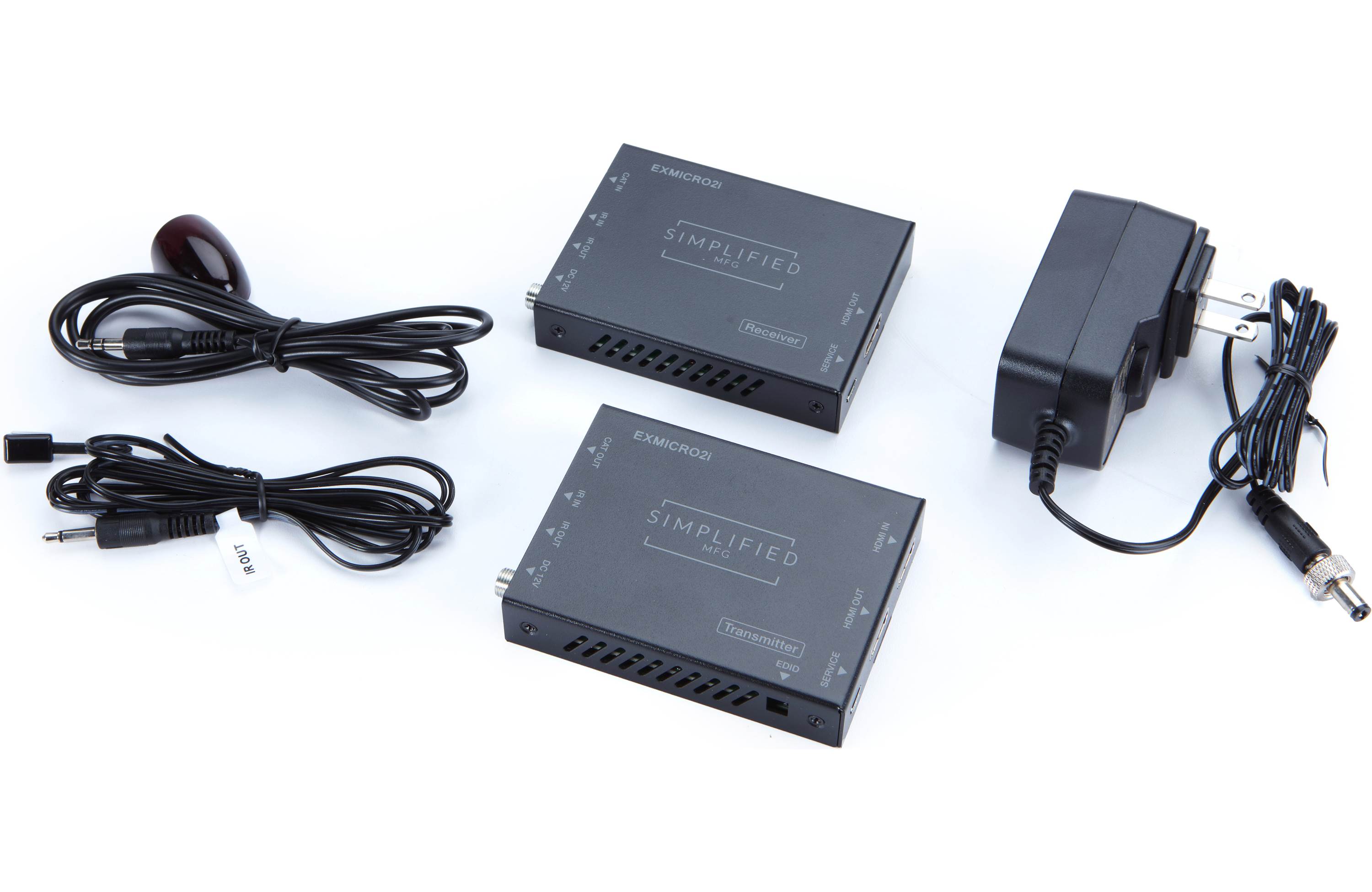

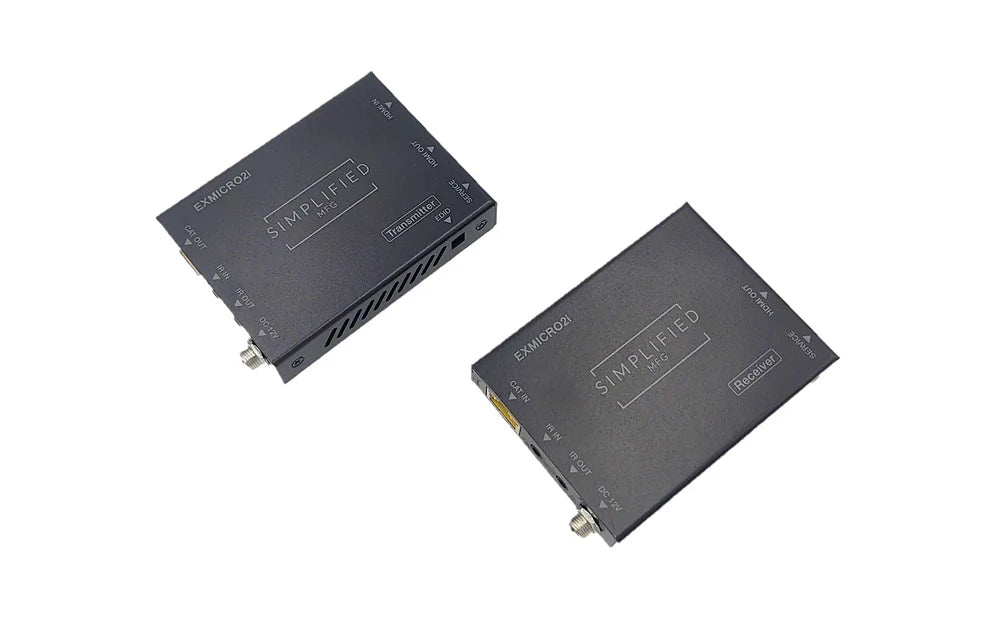

The EXMICRO2i can extend 4K HDMI 2.0b (18Gbps) high-definition audio and video signal and two-way IR up to 50 meters (164 feet) between transmitter and receiver over a single Cat5e/6/7 cable. The EXMICRO2i supports resolutions up to 4K2K@60Hz 4:4:4, up to 18Gbps, and HDCP 2.2/1.4. In addition, the EXMICRO2i extender is equipped with two-way IR, which allows for source and display control, EDID override settings, a HDMI loop output.

The EXMICRO2i extender is one of if not the most efficient HDMI extenders available today. The Current draw is typically less than 1/4 the normal current draw making this device more efficient and smaller.

Features & Benefits

Allows HDMI 2.0b (18Gbps) Audio/Video and 2-Way IR signals (to and from display) to be transmitted over a single Cat6/5e cable
Built in EQ technology to eliminate
clocking issues
EDID Management (copy from display at RX, copy from display at TX, 1080p 60Hz. Stereo, 4K 60Hz. Stereo)
Transmission Range:
4K@60Hz up to 50m/164ft over Cat6 cable.
1080P@60Hz up to 50m/164ft over Cat6 cable.
HDCP1.4 and HDCP2.2 compliant
Power from RX or TX
Compact design
3-Year Warranty

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Copliance	HDCP 2.2/1.4
Video Bandwidth	18Gbps
Video Resolution	Up to 4K @60Hz 4:4:4
Color Space	RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth	8,10,12-Bit
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

Connections
Transmitter Inputs	1x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port]
Transmitter Outputs	1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female]
Receiver Inputs	1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port]
Receiver Outputs	1x HDMI Type A [19-pin female]
Housing	Metal
Color	Black
Dimensions	3.5" (88mm) [W] x 2.4" (61mm) [D] x 0.7" (18mm) [H]
Weight	Transmitter: 160g/5.6 oz., Receiver: 155g/5.5 oz.
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A
Power Consumption	3.84 W
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
