Simplified EXUSB2.0 40m USB2.0 Extender or CAT Cable

Product Details

The EXUSB2.0 is a 40m/131ft. USB2.0 Extender over Cat6A/6* cable

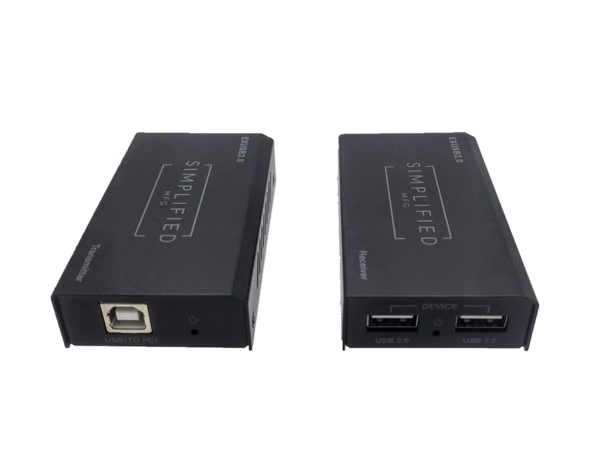

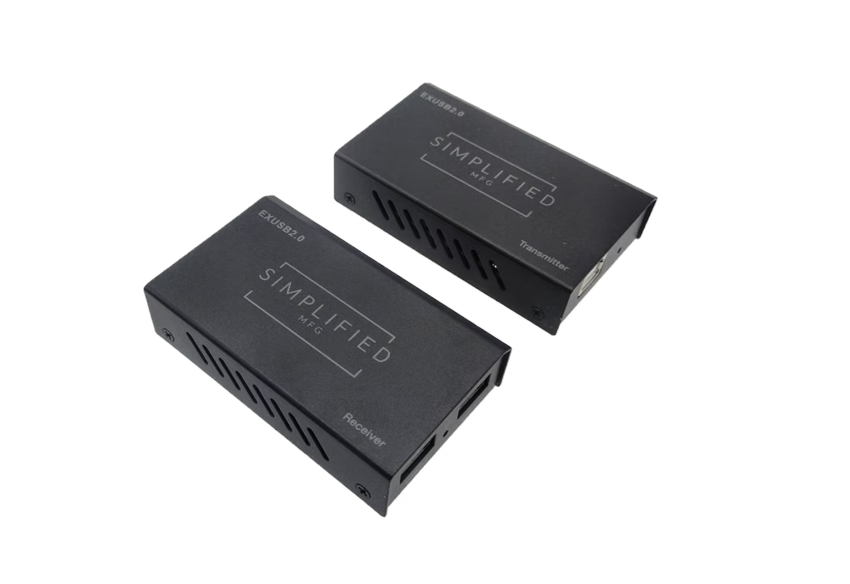

The EXUSB2.0 has a USB type B host port on the transmitter (TX) and two USB2.0 type A client ports on the receiver (RX). The TX is powered by USB and does not need a power supply. As much as 10m/32ft. can be gained if the USB has more current delivery capability. The RX is powered by a 5V/1A power supply that is included in the kit.

Applications are extending any USB device up to USB2.0 capability.

*Cat5e may be used, but some loss of distance may occur

Features

 • USB2.0Support, will work well with many USB 3.0 conference cameras
 • 40m of distance
 • Plug and Play
 • TX powers by USB
 • RX is powered by a power supply
 • TX has USB-B Female input
 • RX has two USB-A Female for Clients

Downloads

Spec Sheet
