Simplified EXUSB3.0 100m USB3.0 Extender on CAT Cable

Product Details

The EXUSB3.0 is a 100m/330ft. USB3.0/3.1/3.2 over Cat6A/6* cable extender

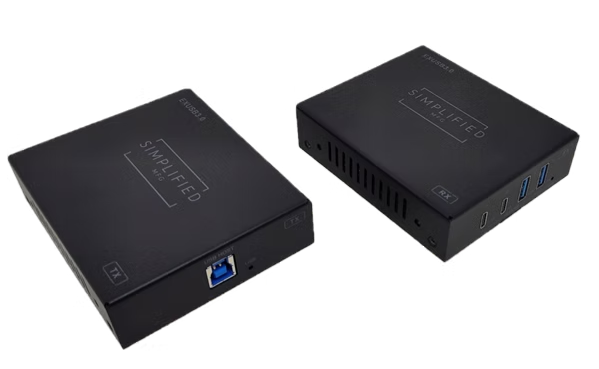

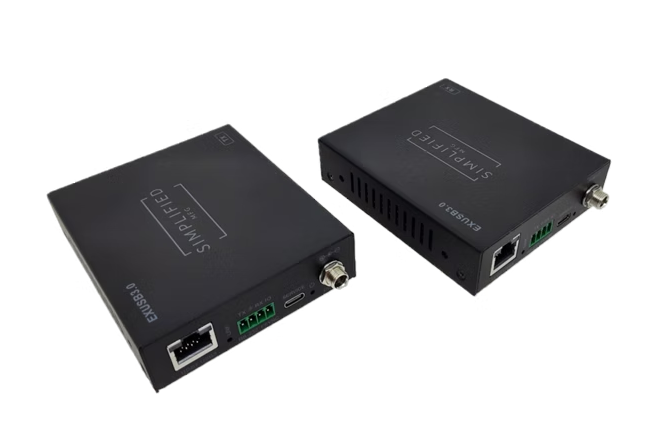

The EXUSB3.0 has a USB3.0 type B host port on the transmitter (TX) and two USB3.0 type A and two Type-C client ports on the receiver (RX). The EXUSB3.0 supports FSYNC and RS-232 pass-thru. There are two 1A ports (Type A and C) along with two 1.5A ports (Type A and C) on the RX end.

Applications are USB 3.0/3.1/3.2 cameras and other data centric USB needs. *Cat5e may be used, but some loss of distance may occur.

Features

 • USB3.0/3.1/3.2Support
 • 100m on Cat 6A
 • Two Type-A and two USB-C at RX
 • Supports FSYNC
 • RS-232 pass-thru
 • Powers at one end (either)
 • USB power supported at RX. 2 1.0A and 2 1.5A (one each of Type-A and USB-C
