Simplified HDSURGE HDMI 1.4b HDMI Surge Protector

SKU: HDSURGE

HDMI 1.4b HDMI Surge Protector

The HDSURGE HDMI Protector is a compact ESD protection device designed for HDMI 1.3 and 1.4 interfaces. It safeguards against electrical surges with 13 channels of precise ESD clamp circuits, ensuring minimal signal distortion. Its integrated circuit technology offers superior matching between differential signal lines (<0.05pF), outperforming traditional discrete solutions that can degrade signal quality.

Additionally, it includes a current-limited load switch for HDMI 5V output, offering short-circuit protection and reverse current blocking. This prevents 5V "sharing" between devices, avoiding potential damage when one device fails.

The protector also ensures ground isolation, dissipating voltage surges to prevent sparks or damage from sudden discharges when connecting devices like set-top boxes, DVDs, or HDTVs.

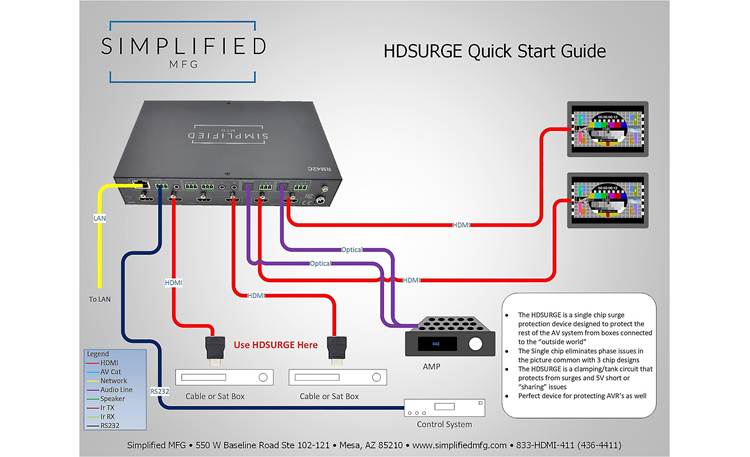

Primary Use: Protecting Audio Video Receivers and other AV switching devices from electrical surges from externally connected signal boxes like Satellite and Cable boxes.
