Simplified M88-8K HDMI 2.1 8x8 Matrix

Product Details

8x8 HDMI 2.1 (48Gbps) scaling Matrix Switch with Audio routing

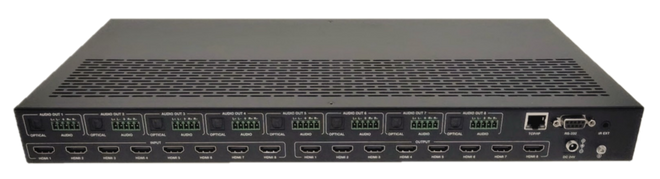

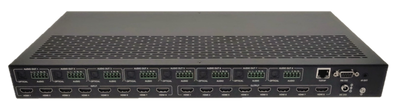

The M88-8K is a Scaling HDMI 2.1 (48Gbps) 8 x 8 HDMI and HDBaseT matrix. There are eight HDMI inputs for 8 sources and there are 8 HDMI outputs that feature the ability to scale (8K/4K/1080p). Each output can scale to the needs of the display/zone and the appropriate HDMI extender can be used for that zone. Audio extraction can be selected per zone (from input/from output/from ARC).The M88-8K is a space saving 1 RU design.

The M88-8K is designed to be used in a myriad of applications. The ability to switch any HDMI signal up to 48Gbps and the selectable audio extraction (Optical/Balanced/Unbalanced) makes the M88-8K a very flexible matrix. Each zone can be paired with the appropriate extender by utilizing the scaling. For example, one zone can be 8K and use the EX3-8K 40Gbps on cat extender while other zones could be set to 4K or 1080p and use other appropriate devices for those zones. The balanced output can mate up with the DTE-ENC to encode the balanced output into Dante as well. It should be noted that the M88-8K does support 4K @120Hz. as well.

Features

 • HDMI 2.1 (48Gbps)fully supported including HDR/DolbyVision, FRL, QMS, VRR, SBTM, ALLM, and QFT
 • Supports 10K, 8K, 4K upt to 120Hz., and 1080p
 • Sophisticated scaling on each output (8k/4K/1080p)
 • Completely assignable audio outputs, can bind to any input/output/ARC channel
 • Compact 1 RU design
 • Suggested extenders are; 8K-EX3-8K • 4K w/ARC-EXKVM2, EXARC • 4K w/o ARC -EX1L, EXMICRO3

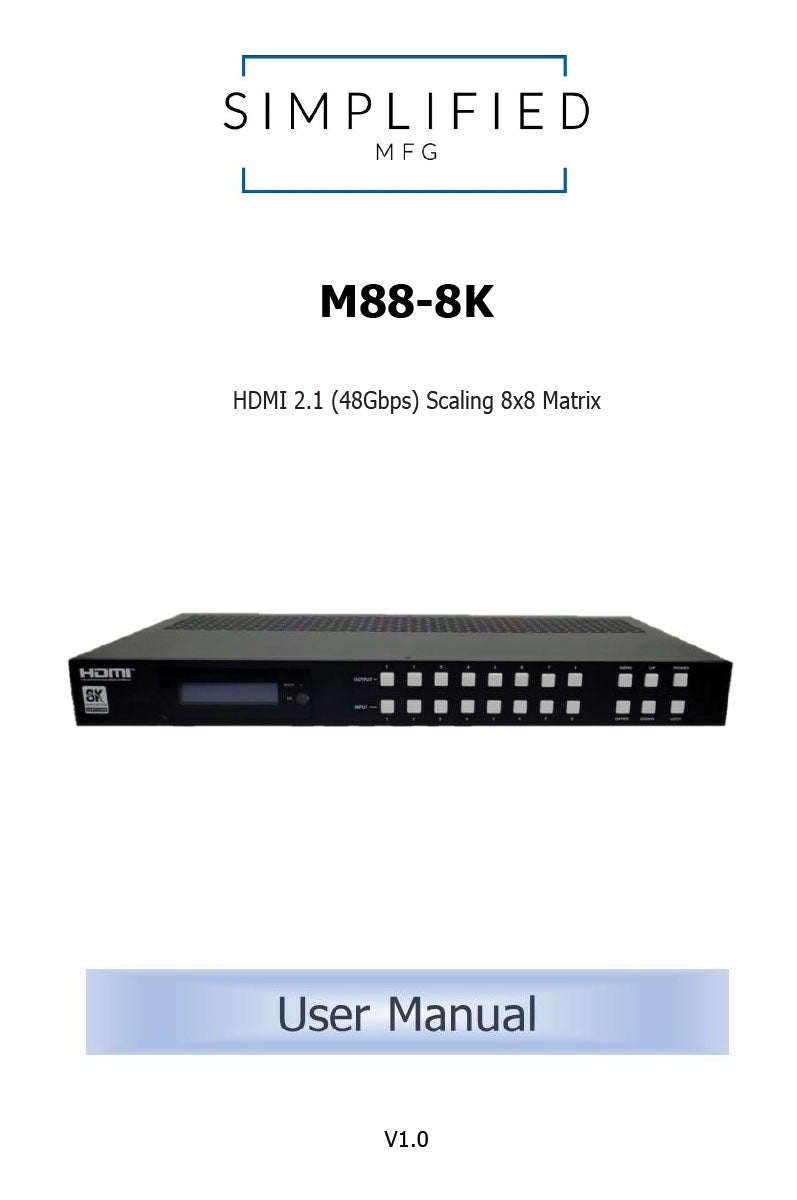

Downloads
