Simplified RM42C 4x2 HDMI 2.0b (18Gbps) Fast Switch/Scaling Matrix Switch

Product Details

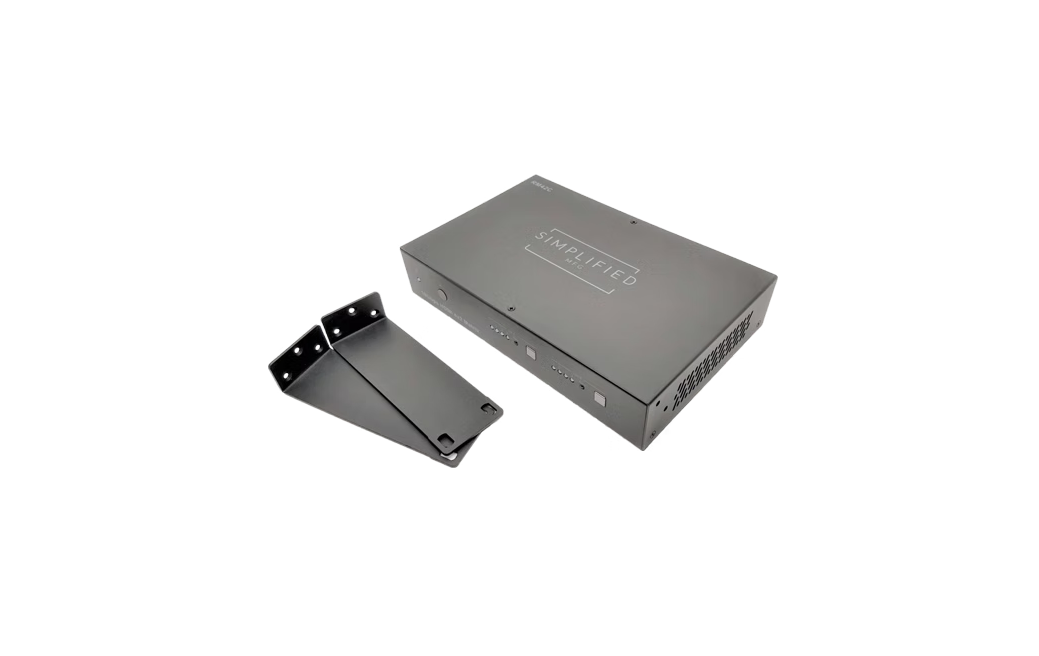

The RM42C is a sub1RU 4x2 HDMI Matrix switch is a fast switch that features four HDMI inputs and two HDMI outputs. It provides true matrix routing for HDMI signals. It supports transmission of video (resolutions up to 2160p@60Hz Ultra HD (4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby True HD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio. The RM42C will also pass HDR High Dynamic Range information as well (8, 10, 10+, DolbyVision™). Each output has scaling options for easier integration of unlike displays. In addition, there is a sophisticated control feature allowing the matrix to turn on other devices in the system. There is also a built in pattern generator. This switch can be used as a four to one switch with our without a second display, as a presentation switch (auto power function is handy here), and used as an upgrade for the video switching in an existing AV system with a less capable AVR. 1 RU mounting kit is included.

Features

• HDMI2.0, HDCP2.2/HDCP1.4 compliant

• Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0

• Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats

• Innovative web GUI

• ARC can be routed to S/PDIF outputs

• Scaling outputs makes integrating 1080p and 4K displays easy

• Supports HDR10+/DolbyVision™

• Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats

• Simultaneous HDMI and COAX S/PDIF (S/PDIF can be assigned to ARC output

• Smart EDID management

• Built in Pattern generator

• Auto Power function allows RM42C to send two IR and two RS-232 commands on startup.

• Control of the RM42C can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control)

• 3 Year Warranty

Downloads

Manual

Spec Sheet
