Simplified RM44C 4x4 HDMI 2.0b (18Gbps) Fast Switch/Scaling Matrix Switch

Product Details

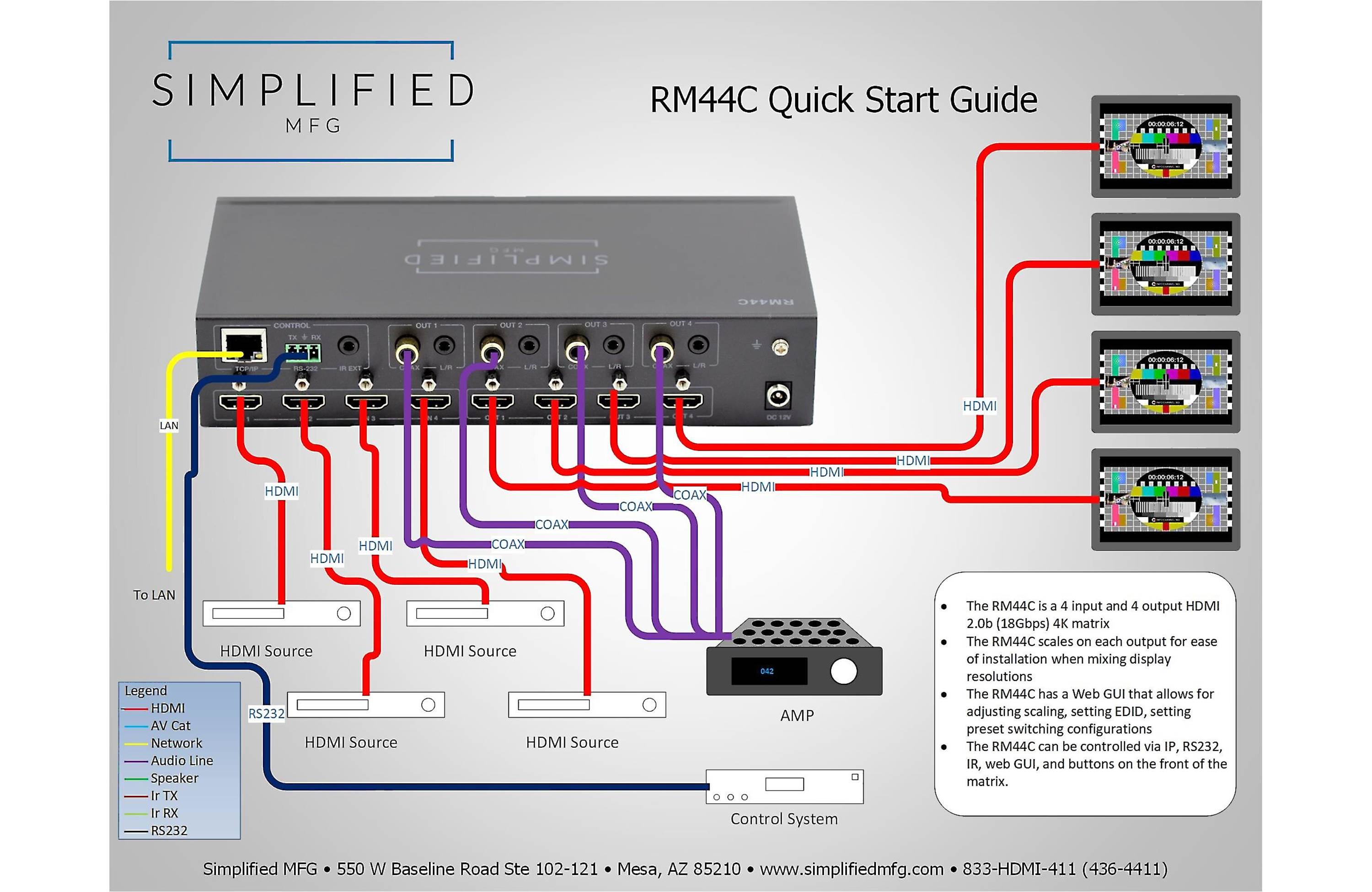

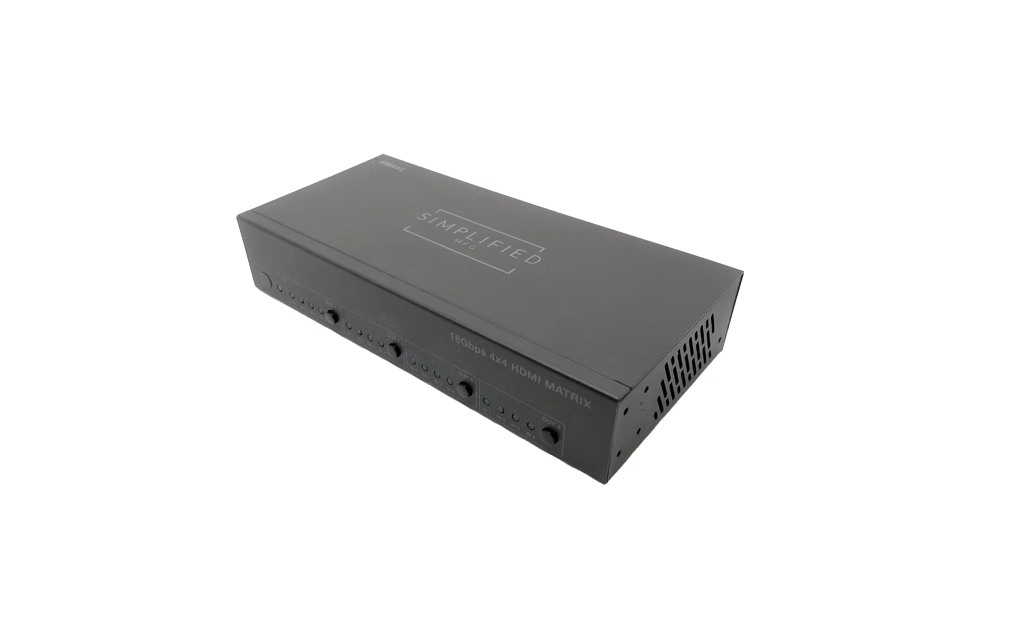

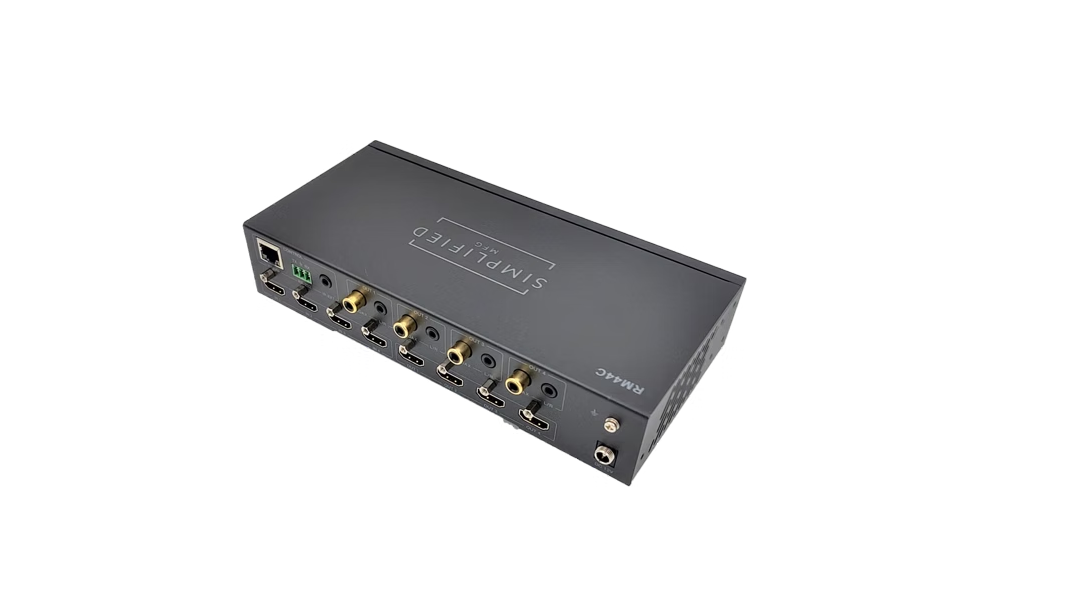

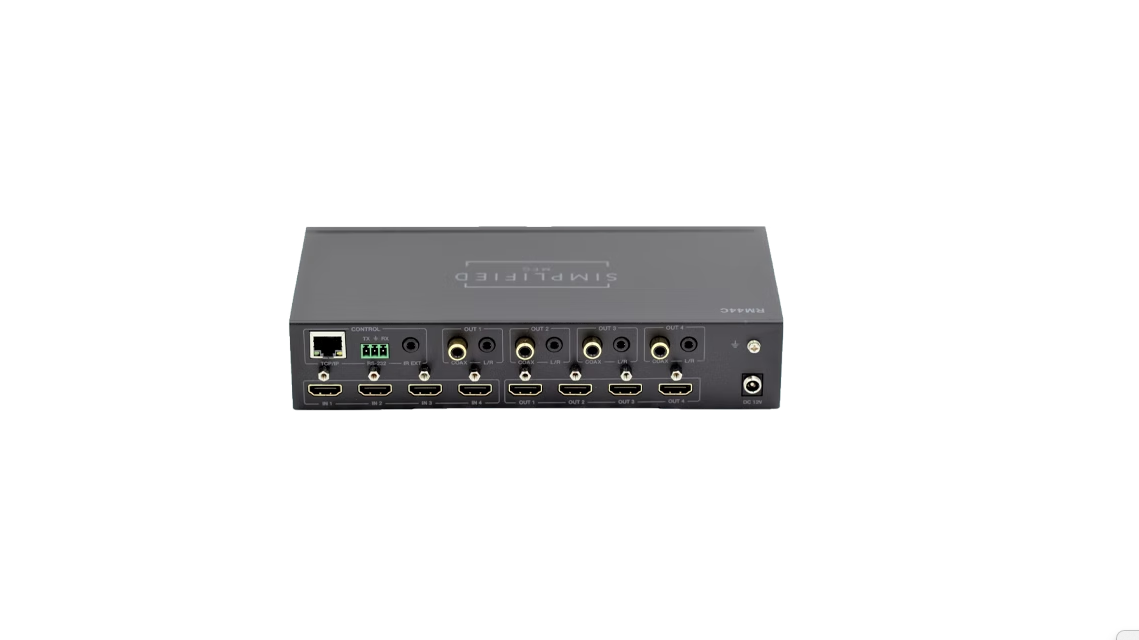

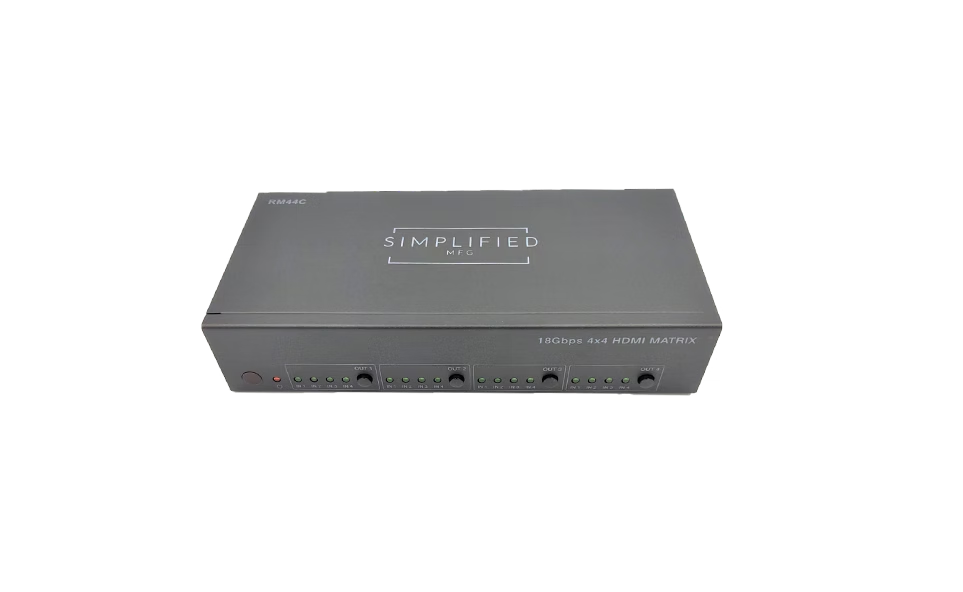

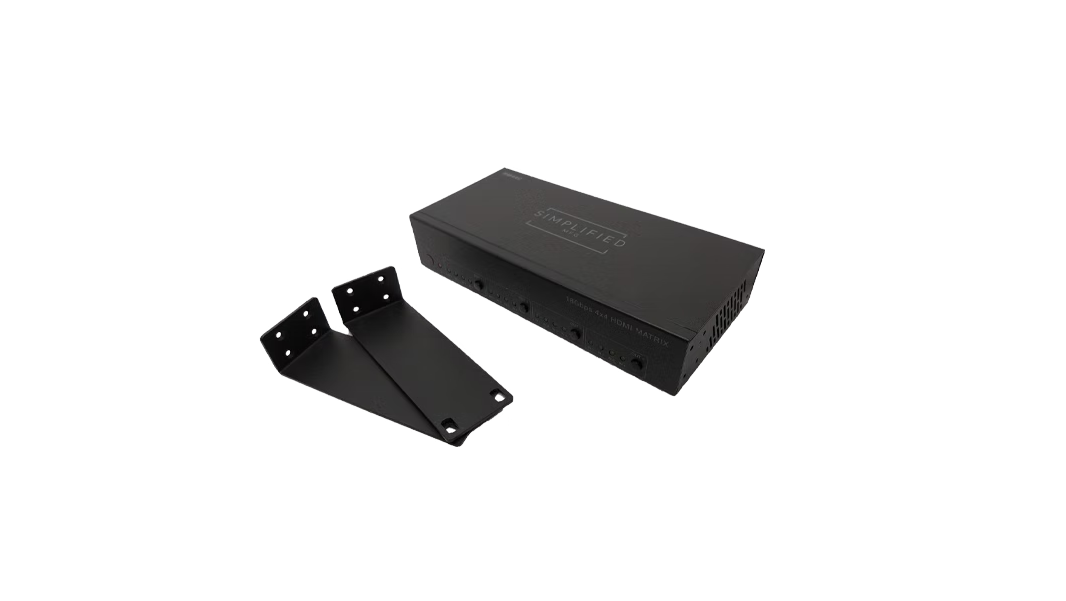

The RM44C is a sub 1 RU HDMI Matrix switch that features four HDMI inputs and four HDMI outputs. It provides true matrix routing for HDMI signals. It supports transmission of video (resolutions up to 2160p@60Hz Ultra HD (4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio. The RM44C will also pass HDR High Dynamic Range information as well (8, 10, 10+, DolbyVision™). Each output has scaling options for easier integration of unlike displays. In addition, there is a CEC control feature allowing the matrix to turn on the displays. Features are adjustable in the Web GUI with both Admin and User login settings. 1 RU mounting kit is included.

Features

• HDMI2.0, HDCP2.2/HDCP1.4 compliant

• Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0

• Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats

• Innovative web GUI

• ARC can be routed to S/PDIF outputs

• Scaling outputs makes integrating 1080p and 4K displays easy

• Supports HDR10+/DolbyVision™

• Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats

• Simultaneous HDMI and COAX S/PDIF (S/PDIF can be assigned to ARC output

• Smart EDID management

• Control of the RM44C can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control)

• 3 Year Warranty
