Simplified SP1:8 HDMI 2.0b (18Gbps) 1x8 HDMI Splitter

Product Details

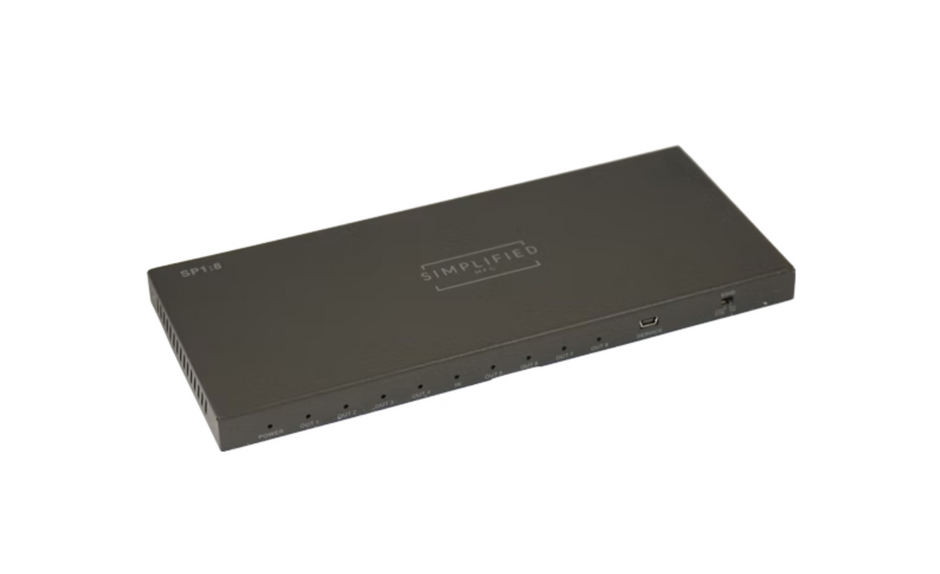

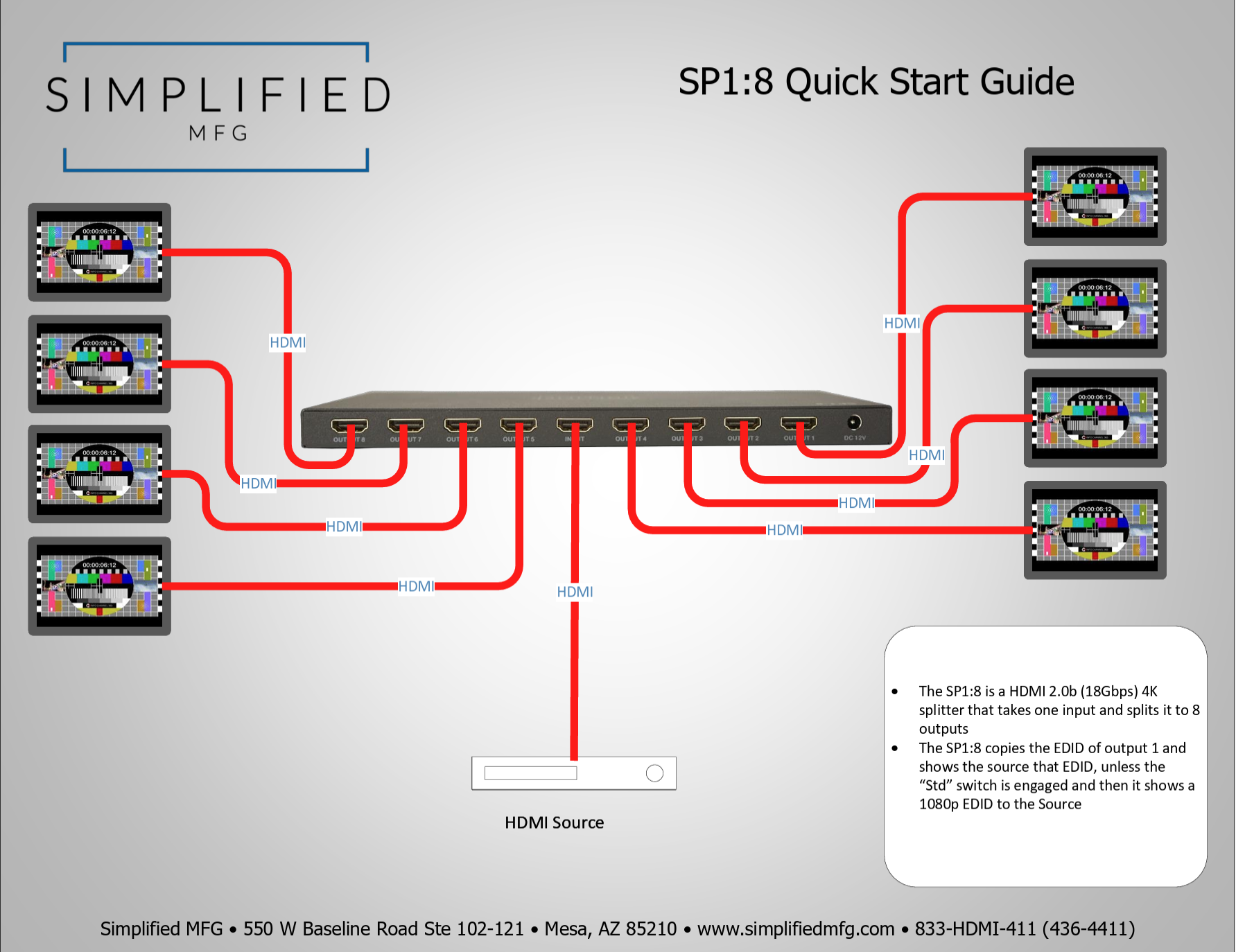

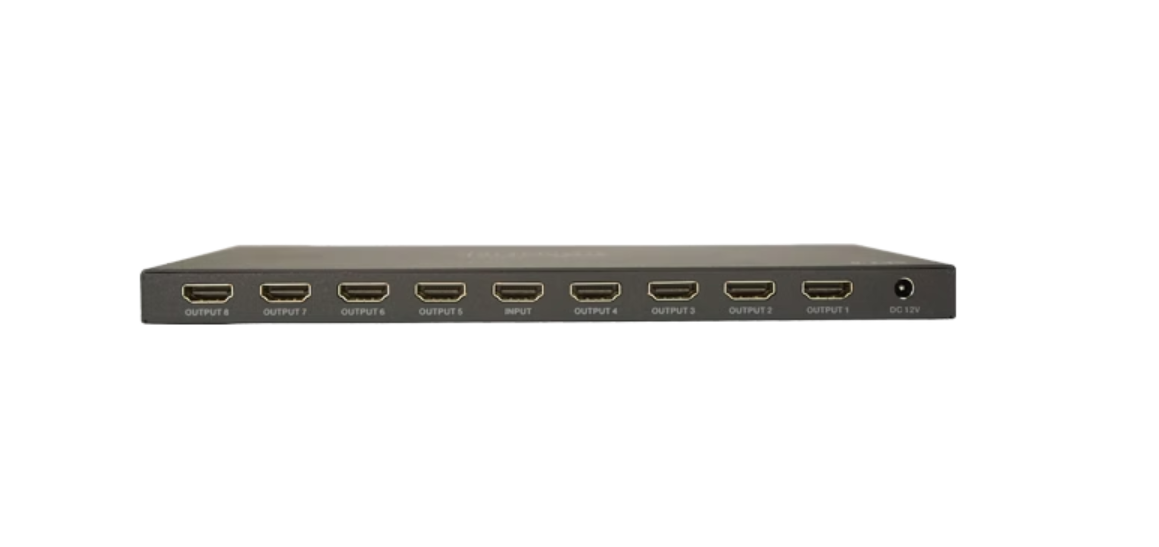

The SP1:8 is 1 by 8 HDMI 18Gbps 4K/UHD Splitter with HDCP 2.2 is a solution for splitting a single HDMI input to eight HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV4:4:4) resolution and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss. Supporting all latest features of the most advanced HDMI 2.0b signals including HDR 10+ and DolbyVision™

Features

• Compliant with HDMI2.0b, HDCP2.2 and DVI 1.0

• Supports video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4

• Supports HDR 10+ and DolbyVision™

• Auto EDID copies output number 1. STD switch engages a 1080p EDID

• Supports LPCM 7.1CH, Dolby TrueHD, and Dolby Atmos

• 3-Year warranty

Downloads

Spec Sheet

Manual
