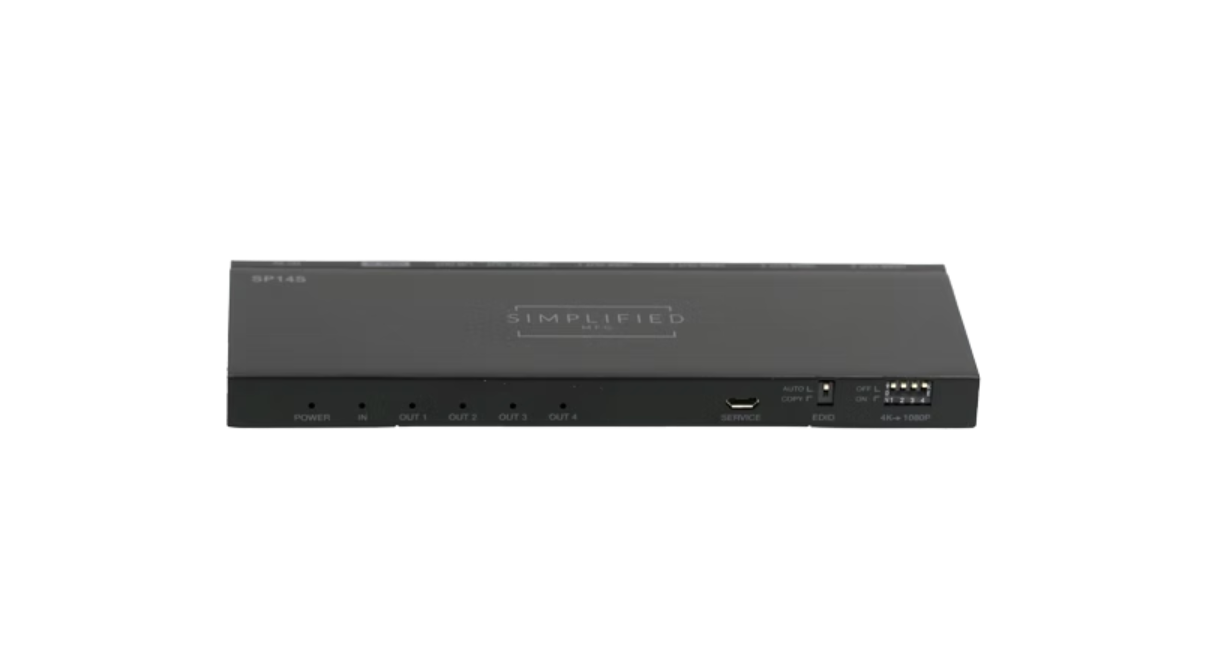

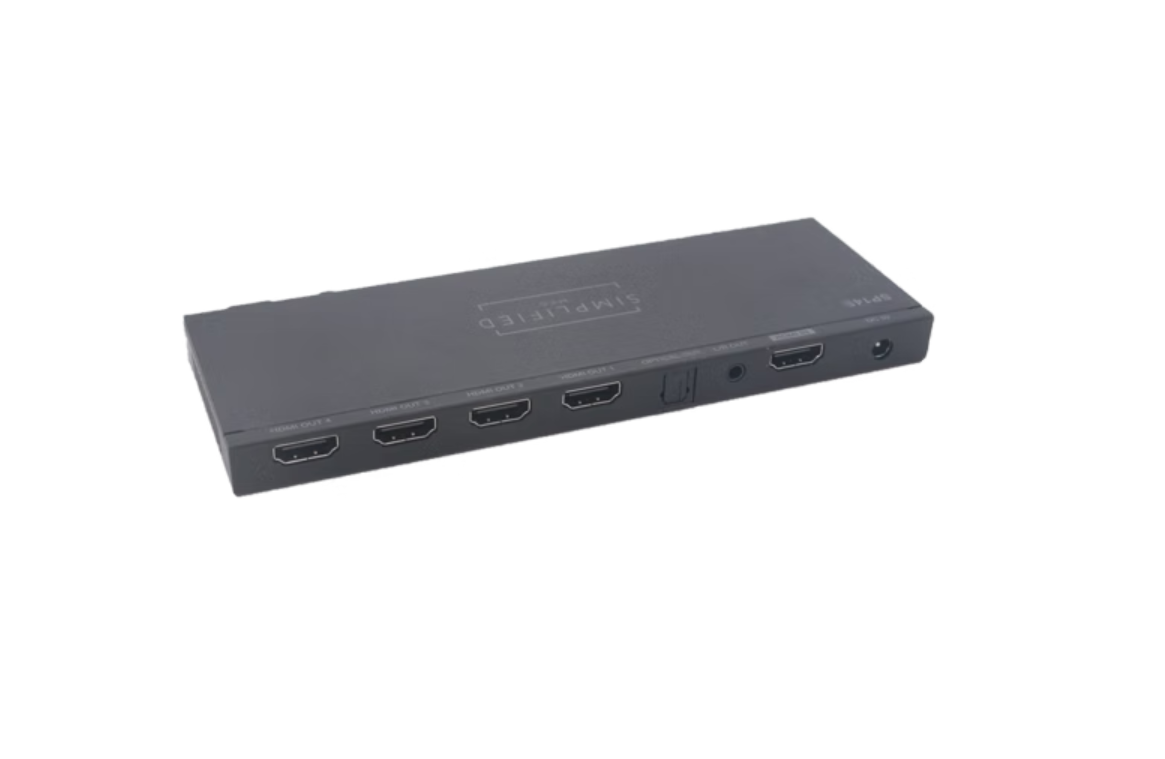

Simplified SP14S HDMI 2.0b (18Gbps) 1x4 HDMI Splitter with Scaling, EDID, and Audio Breakout

Product Details

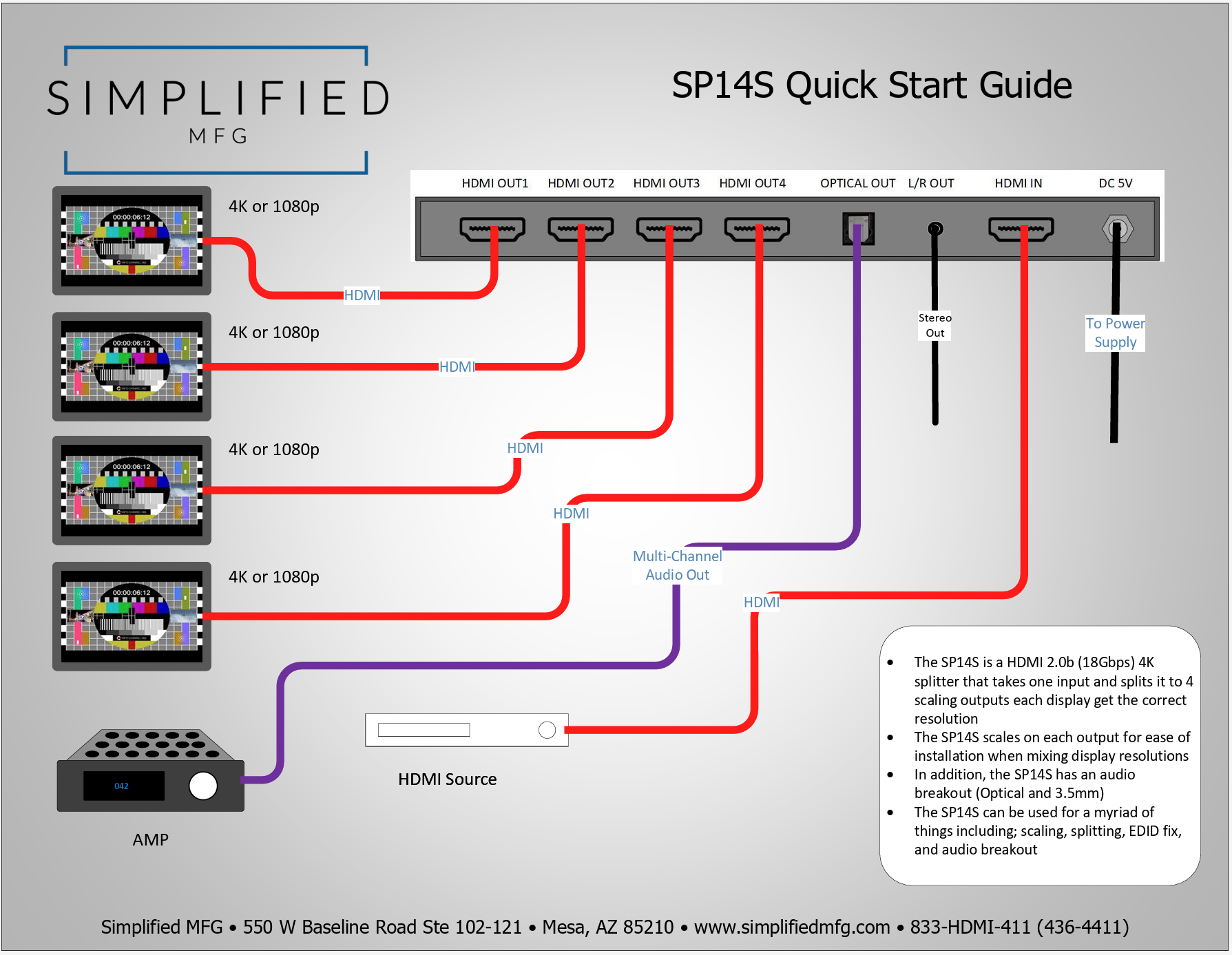

The SP14S is a 1 by 4 HDMI 18Gbps 4K/UHD Splitter with HDCP 2.2, Scaling, EDID, & an audio breakout. It is a solution for splitting a single HDMI input to four HDMI outputs whether they are identical or not. In cases of 1080p and 4K displays, any can receive the appropriate signal needed for each display. EDID can be manipulated to help with multiple displays as well. In addition there is an optical SPDIF/3.5mm mini jack for audio breakout. The SP14S supports the latest features of the most advanced HDMI 2.0b signals including HDR10+ and DolbyVision™

Features

• Compliant with HDMI2.0b, HDCP2.2 and DVI 1.0

• Supports video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4

• Selectable EDID setting (Copy output 1 or Mix)

• Selectable Scaling will allow each output to either follow the EDID setting or scale to 1080p

• Optical S/PDIF and 3.5mm Mini jack audio breakout

• Supports HDR 10+ and DolbyVision™

• Supports LPCM 7.1CH, Dolby TrueHD, and Dolby Atmos

• 3-Year warranty

Downloads

Spec Sheet

Manual
