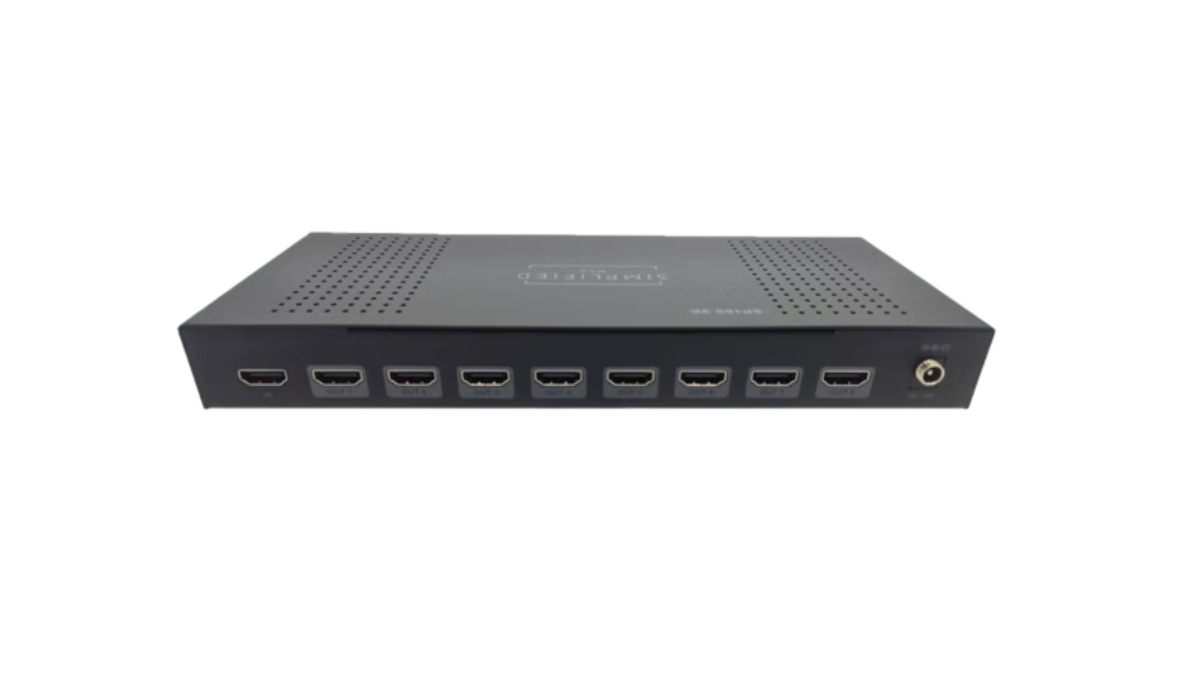

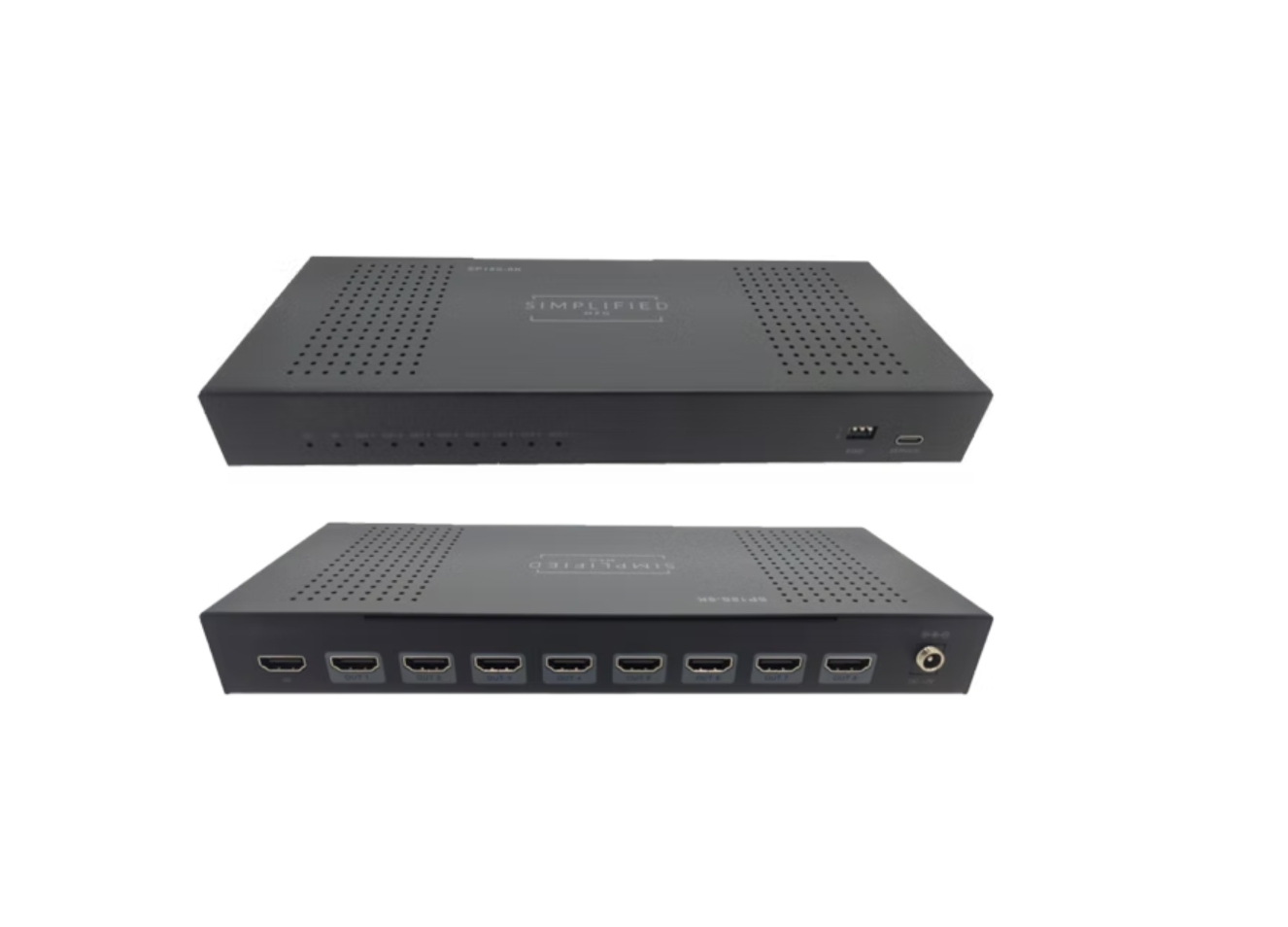

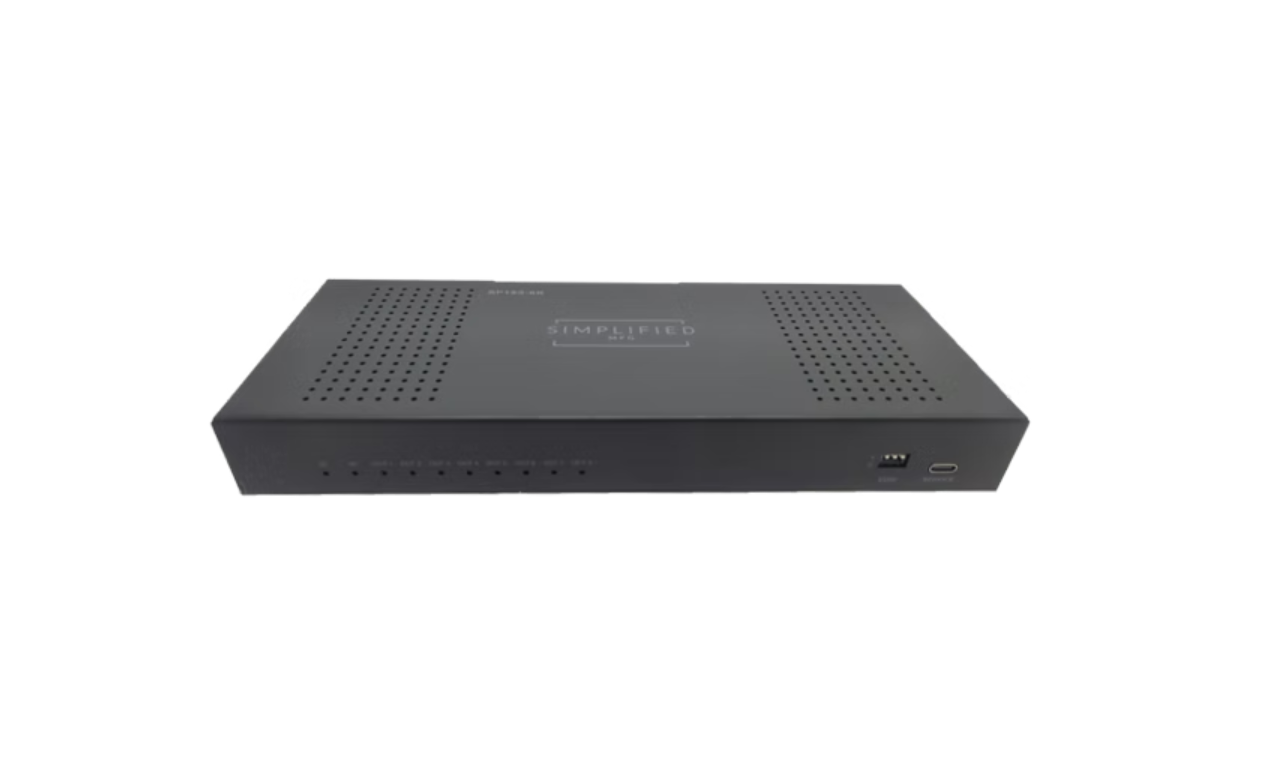

Simplified SP18S-8K HDMI 2.1 (48gbps) 1x8 Scaling HDMI Splitter
Art: SP18S-8K
Call for Availability
Increments of 1
Minimum of 1
Maximum of
Sale price
$449.00
-100%
Regular price
$0.00
Regular price
$449.00
Unit price
per
Couldn't load pickup availability
Description
Product Details
The SP18S-8K is a 1 by 8 autoscaling HDMI 48Gbps 8K/4K/1080p Splitter with HDCP 2.3/2.2/1.4 is a solution for splitting a single HDMI input to eight HDMI outputs. The SP18S-8K will scale from 8K to 4K automatically. It will also scale from 4K to 1080p. The SP18S-8k cannot scale from 8K to 1080p. It provides high-performance audio and video output through HDMI cables up to 8K resolution and is capable of receiving and transmitting up to 48Gbps of bandwidth with no data loss. It supports all of the latest features of the most advanced HDMI 2.1 signals, including QMS, FRL, VRR, ALLM, QFT, SBTM, HDR 10+, and DolbyVisionā¢
Features
ā¢ Compliant with HDMI 2.1 HDMI2.0b, HDCP2.3, HDCP2.2, HDCP1.4 and DVI 1.0
ā¢ Supports video formats up to 8K @60Hz.
ā¢ Supports QMS, FRL, VRR, ALLM, QFT, SBTM, HDR 10+ and DolbyVisionā¢
ā¢ Auto-scaling allows 8K and 4K displays to be intermixed without EDID issues. The SP18S-8K can also do the same with 4K and 1080p displays
ā¢ Supports LPCM 7.1CH, Dolby TrueHD, and Dolby Atmos
ā¢ 3-Year warranty
Specifications
|
Technical |
|
|
Video Bandwidth |
48Gbps |
|
Output Resolution |
480i~1080p 50/60Hz., 4Kx2K 24/25/30/50/60Hz, 8Kx4K 24/25/30/50/60Hz |
|
ESD Protection: Human Body Model |
Ā±8kV (air-gap discharge)Ā |
|
|
Ā±4 kV (contact discharge) |
|
Connections |
|
|
Inputs |
1 HDMI Type A [19 Pin female] |
|
Outputs |
8 HDMI Type A [19 Pin female] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Matte Black |
|
Dimensions |
245 mm/9.65" [W] x 105 mm/4.133" [D] Ć 16 mm/0.63" [H] |
|
Weight |
630g/1lb., 6.2oz. |
|
Power Supply |
12V/2.5A DC (US/EU standards, CE/FCC/UL certified) |
|
Power Consumption |
30W max |
|
Operating Temperature |
-10Ā°C ~ 45Ā°C / 14Ā°F ~ 113Ā°F |
|
Storage Temperature |
-20Ā°C ~ 60Ā°C / -4Ā°F ~ 140Ā°F |
|
Relative Humidity |
20~90% (non-condensing) |
