Simplified SW41e-8K 4×1 8K@60 HDMI 2.1 (48gbps) Switch with eARC
Art: SW41e-8K
Call for Availability
Increments of 1
Minimum of 1
Maximum of
Sale price
$249.99
-100%
Regular price
$0.00
Regular price
$249.99
Unit price
per
Couldn't load pickup availability
Description

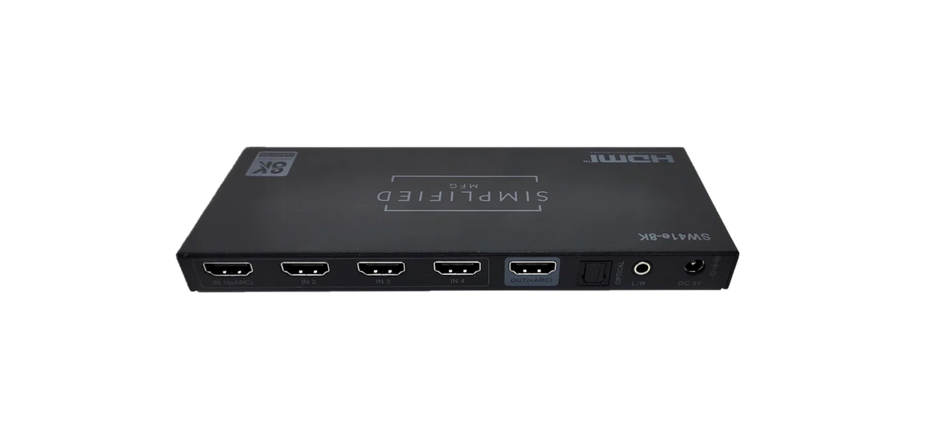

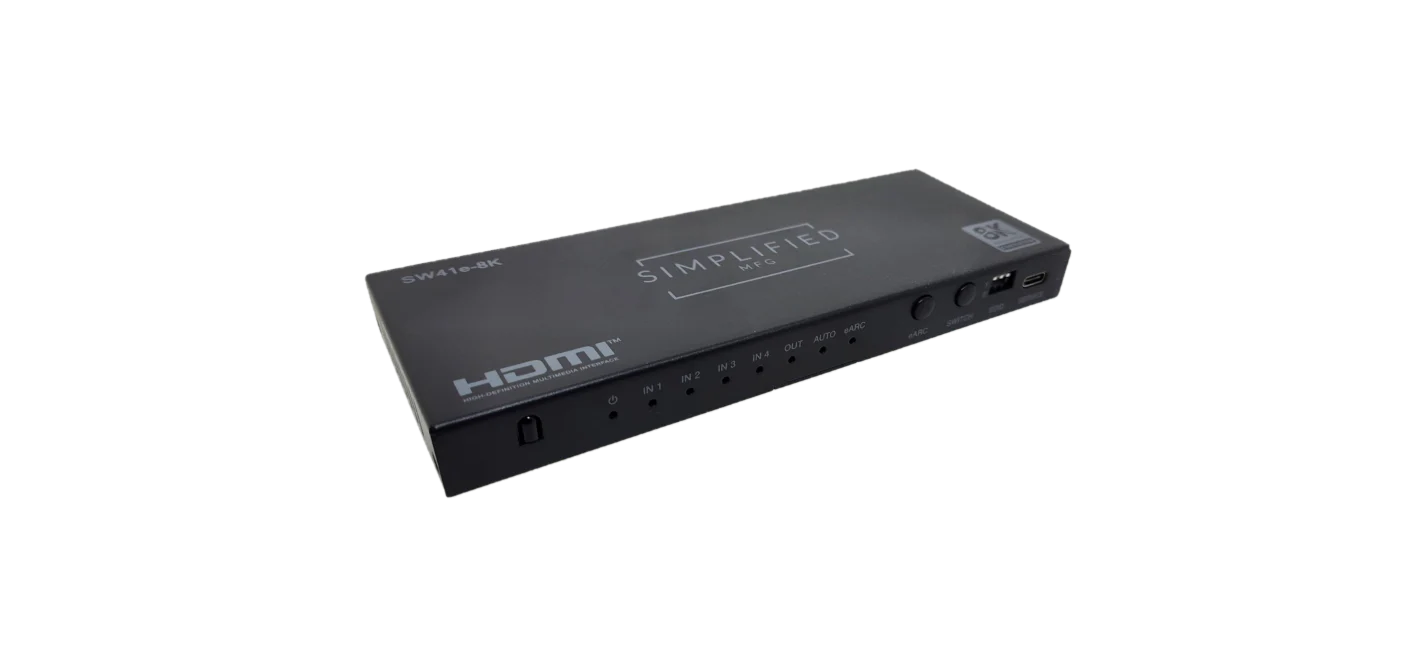

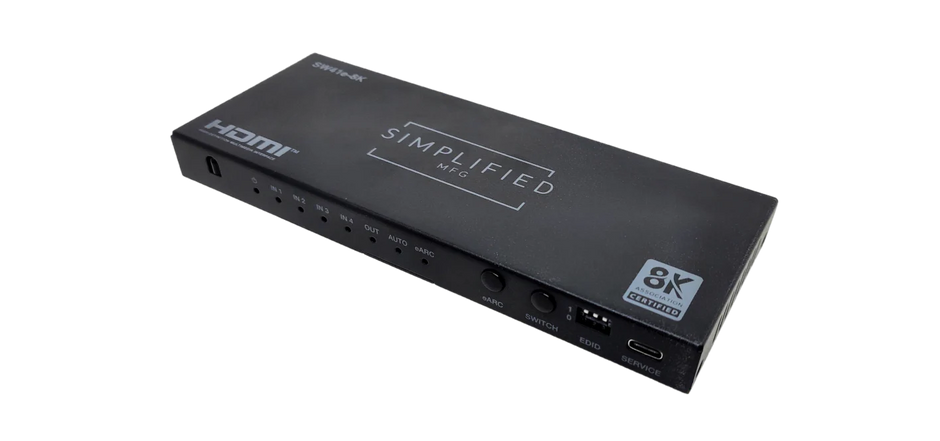

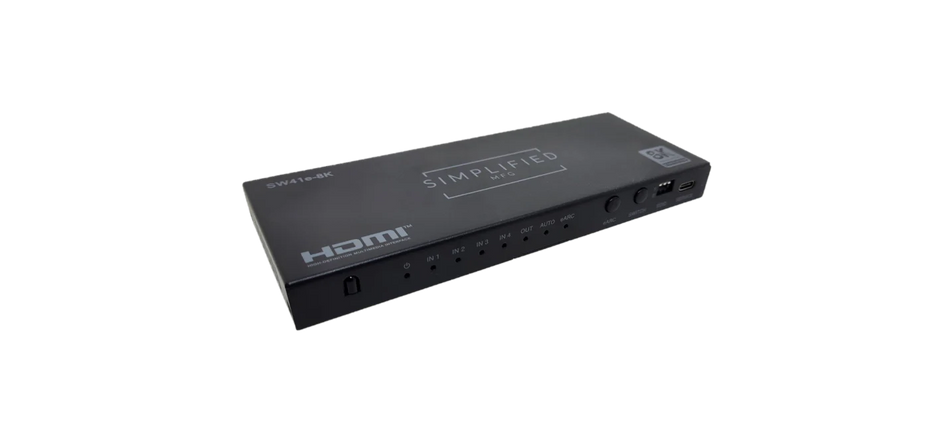

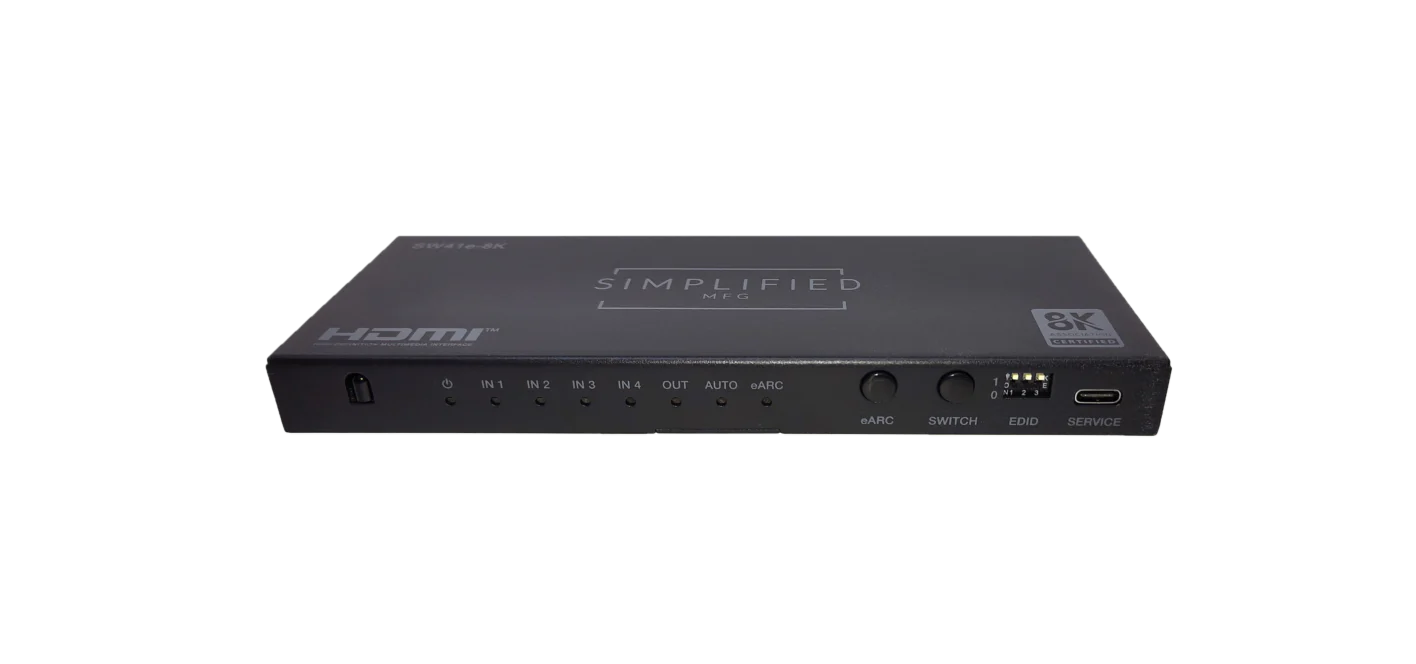

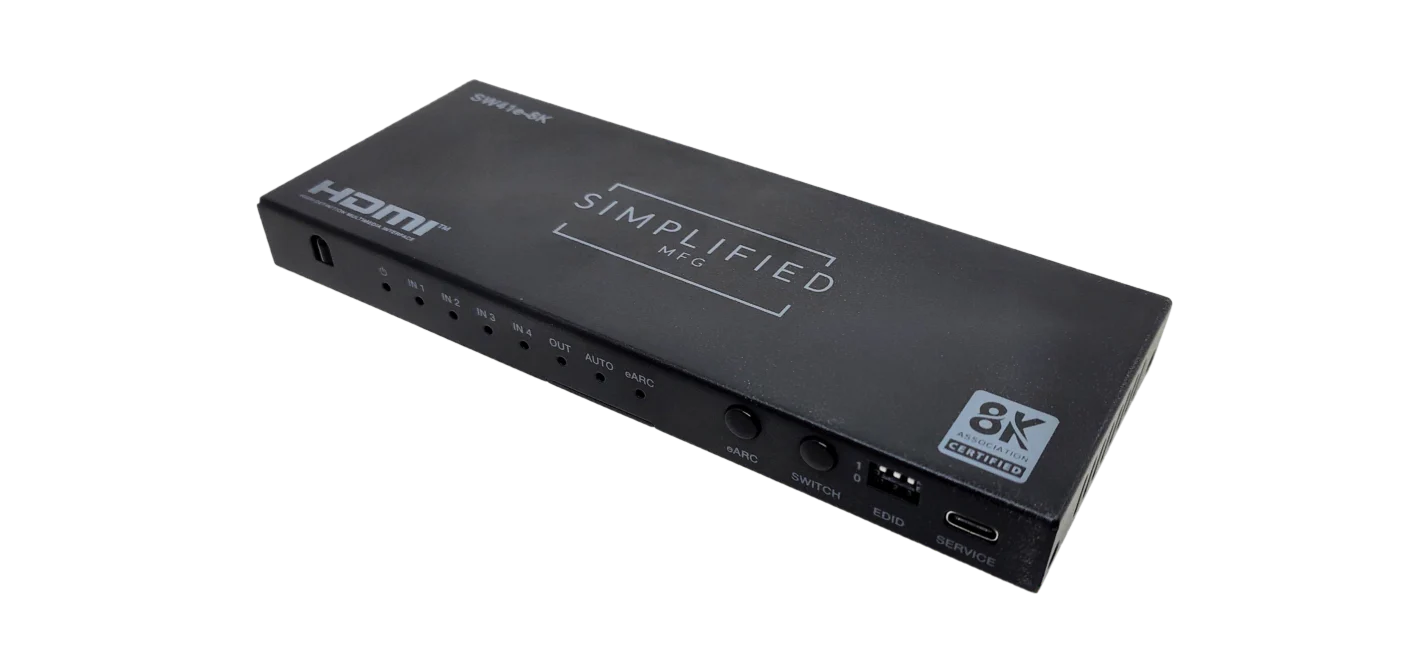

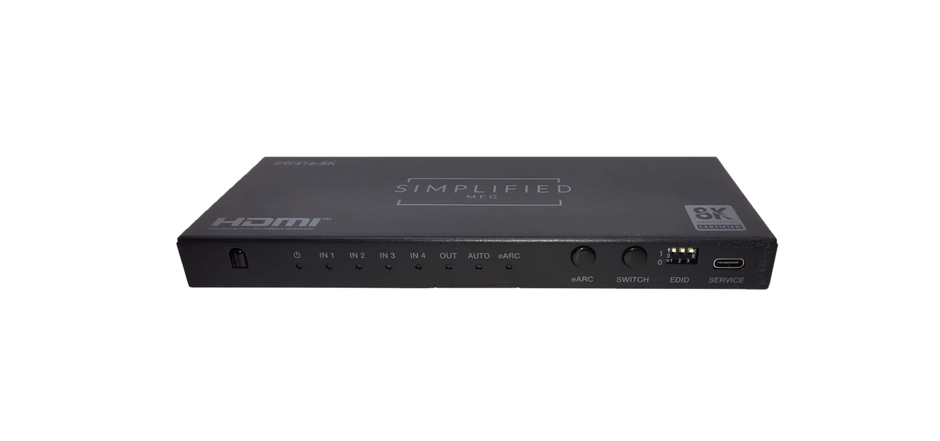

Simplified SW41e-8K 4×1 8K@60 HDMI 2.1 (48gbps) Switch with eARC
Product Details
The SW41e-8K a high-performance HDMI 4x1 switch that supports HDTV formats up to 8Kx4K@60Hz. In addition, it can rout eARC/ARC from display to Input1 for connection to soundbars, AVR's and other devices that support eARC/ARC. This eliminates one input making it a 3:1 switch in this configuration. The SW41e-8K supports all the new features of HDMI 2.1 including QMS, FRL, VRR, ALLM, QFT, & SBTM. Select any of the inputs by front panel button, Auto-Switch, or with supplied IR Remote, Auto-switch mode switches the input to the last source that is powered on. The corresponding LED on the front panel will indicate the selection and status.
Features & Benefits
-
Compliant with HDMI 2.1 (48gbps)
-
HDCP 2.3 Compliant
-
Supports 48Gbps FRL (Fixed Rate Link) & 18Gbps TDMS bandwidths
-
Video resolutions up to 8K@60Hz. (4:2:0) 12-bit, 8K@30Hz. (4:4:4) 12-bit, & 4K@120Hz. (4:4:4) 12-bit
-
Unique audio routing feature, can be used as a traditional HDMI switch with four inputs to one output, as an
ARC/eARC extractor (HDMI and/ or optical, or as a three input switch with audio extraction to a local sound
bar that supports eARC/ARC -
EDID management FRL/TMDS, EDID can be set to use display's EDID for video and soundbar's EDID for audio
-
HDMI 2.1 support including VRR (Variable Refresh Rate), ALLM (Auto Low Latency), QMS (Quick Media Switching),
QFT (Quick Frame Transfer), & SBTM (Source-Based Tone Mapping) -
Supports HDR, HDR10+, HLG and DolbyVision™
-
Supports all high-definition audio formats including Dolby+/Atmos
-
Supports eARC/ARC
-
Supports CEC pass-thru
-
Supports Audio De-embed to S/PDIF (optical/analog)
-
Manual and auto-switching feature
Specifications
| Frequency Bandwidth | 48Gbps |
| Input Ports | 4 HDMI Female ports |
| Output Ports | 1 HDMI Female port |
| HDMI Audio Output | PCM2.1/5.1/7.1CH, Dolby5.1,DTS5.1, Dolby-TrueHD, DTS-HD, Dolby+, Atmos, DTS-X |
| ESD Protection: Human Body Model | ± 8kV (air-gap discharge) |
| ± 4kV (contact discharge) | |
| Dimensions | 176mm/6.93" x 68mm/2.7" x 18mm/0.71" |
| Weight | 315g/11.11oz. |
| Power Consumption | Max 2W |
| Operating Temperature | 0˚C ~ 40˚C / 32˚F ~ 104˚F |
| Storage Temperature | -20˚C ~ 60˚C / -4˚F ~ 140˚F |
