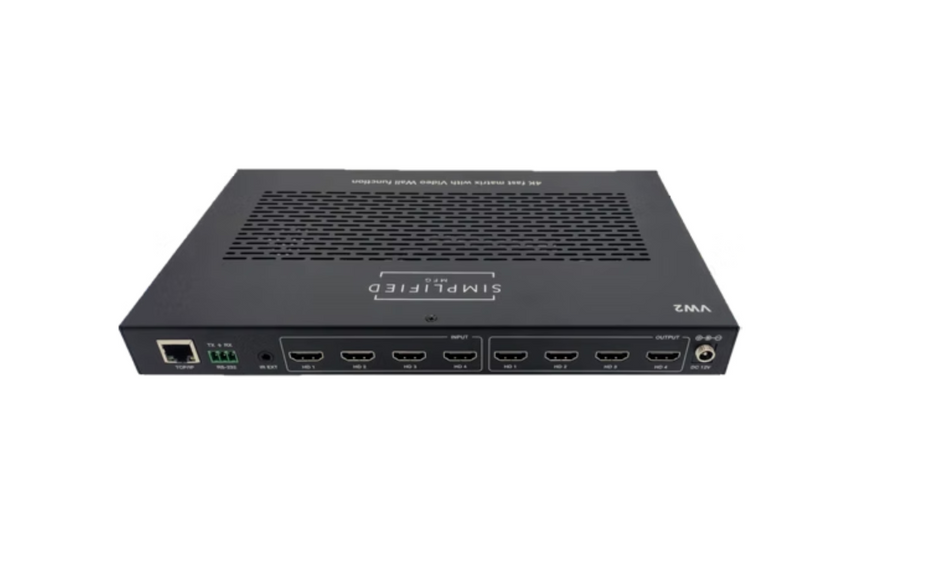

Simplified VW2 4K/UHD Fast Switch Thin Mount Matrix with Video Wall Function

Product Details

The VW2 was designed to be a 2x2 4K/UHD (or a myriad of other resolutions) matrix switch that allows you to put four individual pictures or on single picture across 4 displays. It is thin to accommodate mounting behind displays. The VW2 also has an intuitive web GUI for easy set up and even control of the device. The fast switching speed allows changing sources or functions to be done in a fraction of a second.

Uses include: Sports venues, hospitality, and digital signage.

Features

• Fast switch matrix, instant switching source to souce and to and from Video Wall mode.

• 4K 60Hz. (18Gbps, YUV4:4:4)

• Image flip [vertical and horizontal]

• In a two by 2 configuration, each display can have it's own image or share one across the 4 displays [video wall]

• Seamless switching

• IP, RS-232, IR, and Web GUI controllable

• Thin mount for mounting behind video wall mounts

• Sophisticated Web GUI allows doe set up including EDID, color space, image flip, bezel adjustment, and presets

• 3 Year Warranty
