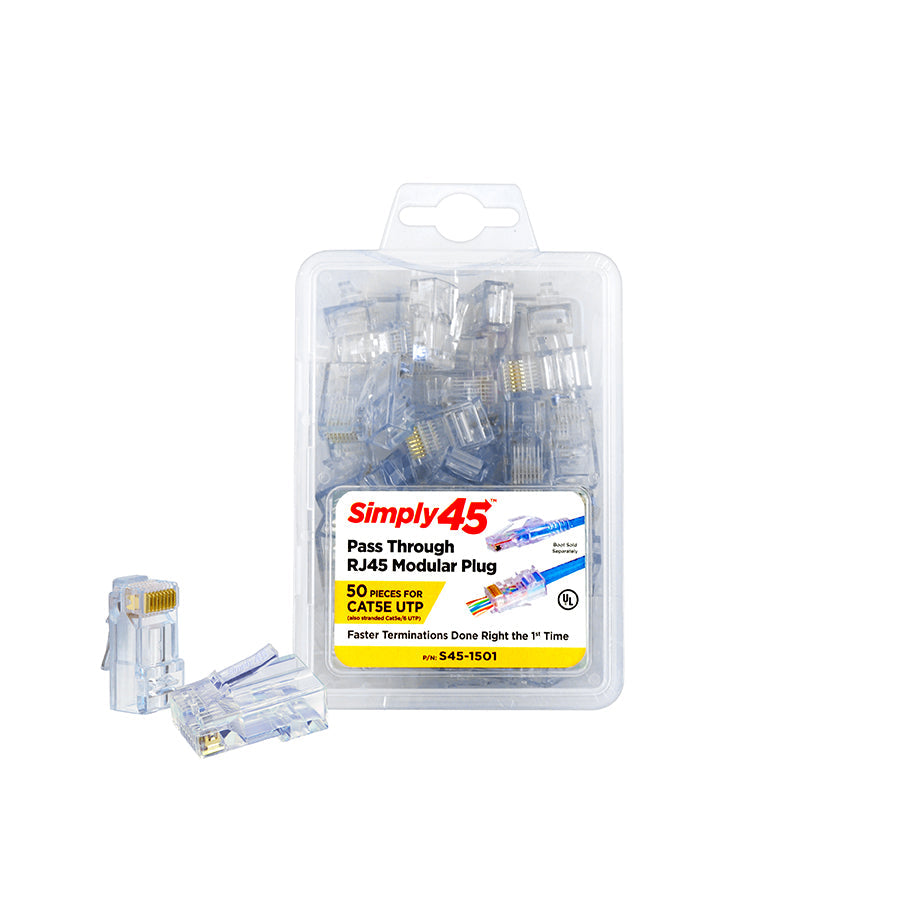

Simply45 S45-1501 Pass Through Blue Tint - Cat5e UTP - 50pc Clamshell
Art: S45-1501
In stock: 6 available
Increments of 1
Minimum of 1
Maximum of
Sale price
$33.50
-100%
Regular price
$0.00
Regular price
$33.50
Unit price
per
Couldn't load pickup availability
Description
Simply45 S45-1501 Pass Through Blue Tint - Cat5e UTP - 50pc Clamshell
Product Details
Simply45® ProSeries hybrid connectors feature patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45® only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. These connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45® ProSeries the most reliable terminations on the market today.
Specifications
| Category Type | Cat5e |
| Connector Style | Pass Through |
| Wire Alignment | Straight Insert |
| Cable Type | UTP |
| AWG | 24AWG Solid , 28-26AWG Stranded. |
| Conductor Range | 0.95 – 1.05mm (0.037″ – 0.041″) |
| Max Cable OD | 6.5mm (0.255″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Blue Tint |
| Patent Number | 9,543,729; 10,116,082; 10,573,990; 11,146,014 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Resealable Clam Pack |
| Connector Quantity | 50 pieces |
Features
- Single Piece Design
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Solid and Stranded LAN Cables
- Straight-Line Wire Insert
- Improved Crosstalk Performance
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Convenient Plastic Clamshell
- UL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
