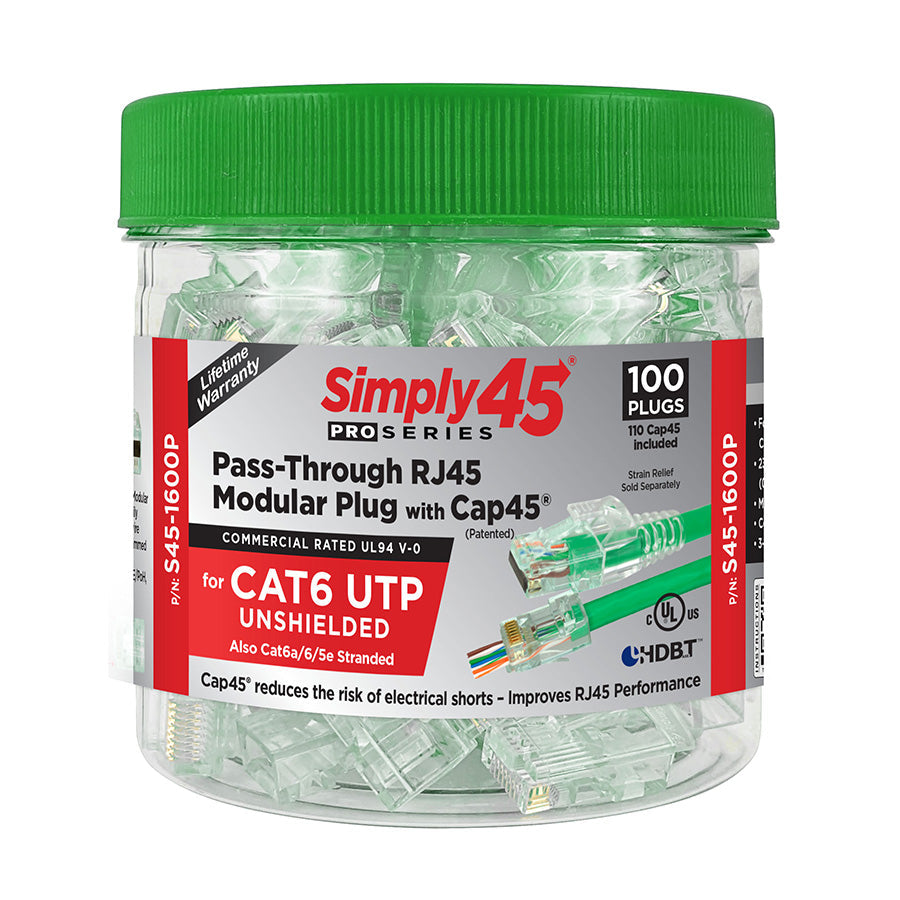

Simply45 S45-1600 Pass Through Green Tint - Cat6 UTP - 100pc Jar
Art: S45-1600
In stock: 12 available
Increments of 1
Minimum of 1
Maximum of
Sale price
$66.95
-100%
Regular price
$0.00
Regular price
$66.95
Unit price
per
Couldn't load pickup availability
Description
Simply45 S45-1600 Pass Through Green Tint - Cat6 UTP - 100pc Jar
Product Details
Simply45 Pass Through connectors feature our reengineered connectors designed for the technology used today. Simply45 only uses the highest quality materials to ensure reliable results that will greatly reduce truck roll backs. Our connectors are commercial rated and feature a 3 prong style contact designed for all PoE application making Simply45 the most reliable Pass Through termination on the market today.
Specifications
| Category Type | Cat6 |
| Connector Style | Pass Through |
| Wire Alignment | Straight Insert |
| Cable Type | UTP |
| AWG | 23AWG Solid, 26-24AWG Stranded |
| Conductor Range | 0.95 – 1.05mm (0.037″ – 0.041″) |
| Max Cable OD | 7.0mm (0.276″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Green Tint |
| Patent Number | 9,543,729; 10,116,082; 10,573,990; 11,146,014 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Jar |
| Connector Quantity | 100 pieces |
Features
- Single Piece Design
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Solid and Stranded LAN Cables
- Straight-Line Wire Insert
- Improved Crosstalk Performance
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
- UL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
- Lifetime Warranty
