Simply45 S45-1600P ProSeries Cat6 Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 100 pc/Jar
Art: S45-1600P
In stock: 36 available
Increments of 1
Minimum of 1
Maximum of
Sale price
$76.95
-100%
Regular price
$0.00
Regular price
$76.95
Unit price
per
Couldn't load pickup availability
Description
Simply45 S45-1600P ProSeries Cat6 Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 100 pc/Jar
Product Details
Simply45® ProSeries hybrid connectors feature patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45® only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. These connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45® ProSeries the most reliable terminations on the market today.
Specifications
| Category Type | Cat6 |
| Connector Style | Pass-Through with Cap45 |
| Wire Alignment | Straight Insert |
| Cable Type | UTP |
| AWG | 23AWG Solid, 26-24AWG Stranded |
| Conductor Range | 0.95 – 1.05mm (0.037″ – 0.041″) |
| Max Cable OD | 7.0mm (0.276″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Green Tint |
| Patent Number | 10,811,831 B1 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |

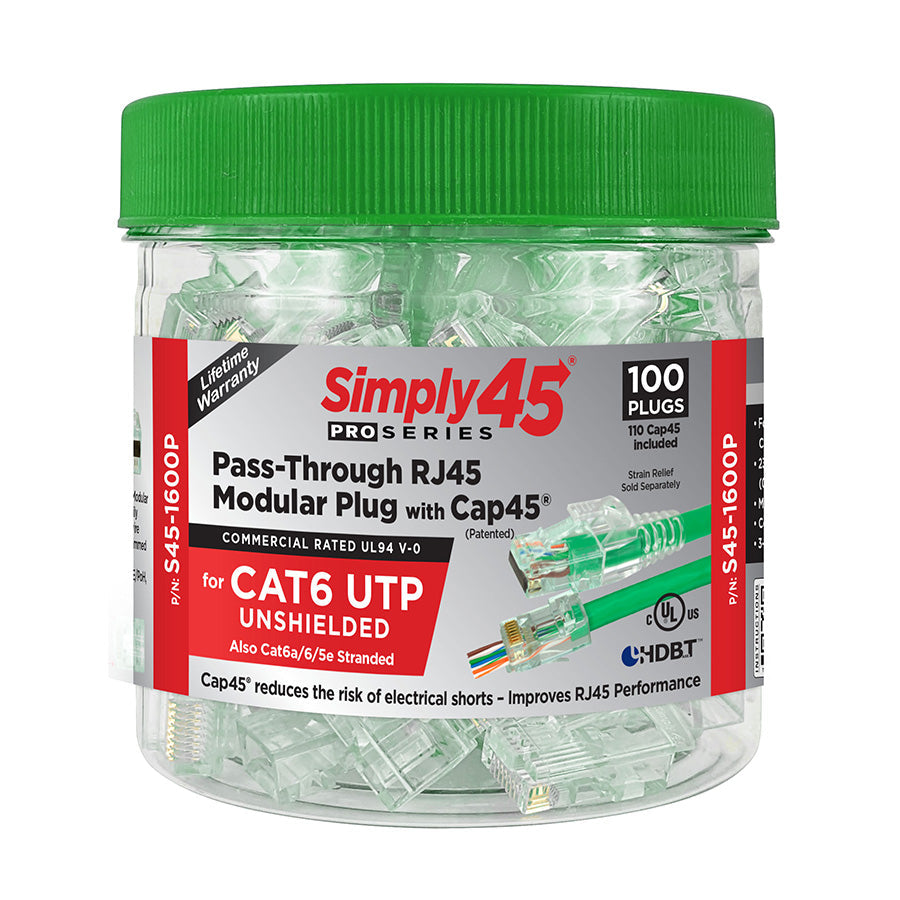

| Packaging Type | Jar |
| Connector Quantity | 100 pieces |
| Cap45 Quantity | 110 pieces |
Features
- Single Piece Design
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Solid and Stranded LAN Cables
- Straight-Line Wire Insert
- Improved Crosstalk Performance
- Crimp Tool Compatibility
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
- cUL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
- Lifetime Warranty
