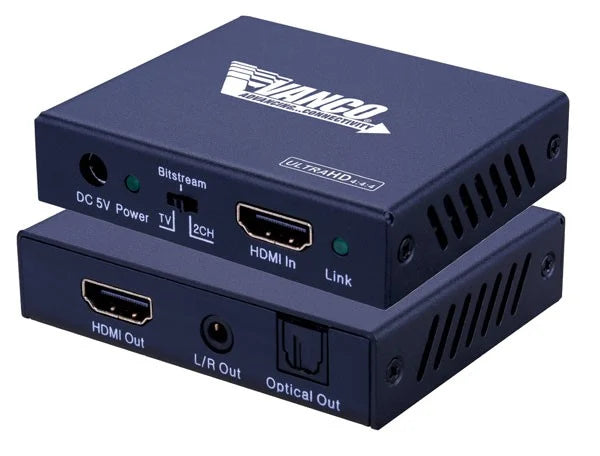

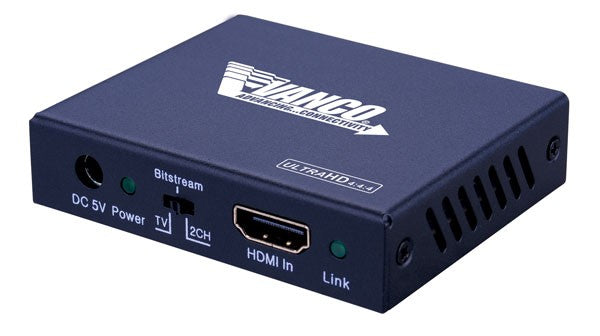

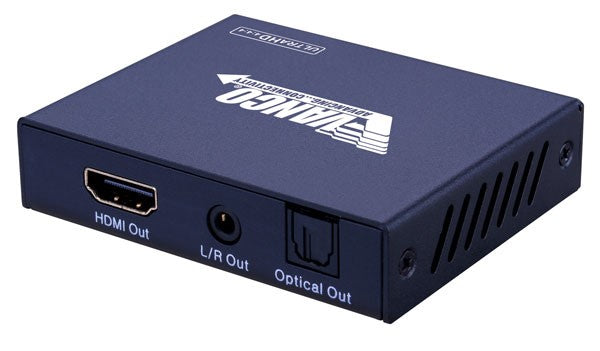

Vanco 4K HDMI® Audio Extractor

Product Details

• Extracts audio signals from an HDMI source
• Passes 4K @ 60Hz and 4:4:4 chroma subsampling
• Supports HDR (High Dynamic Range)
• Supports Full 18 Gpbs Bandwidth
• HDCP 2.2 compliant

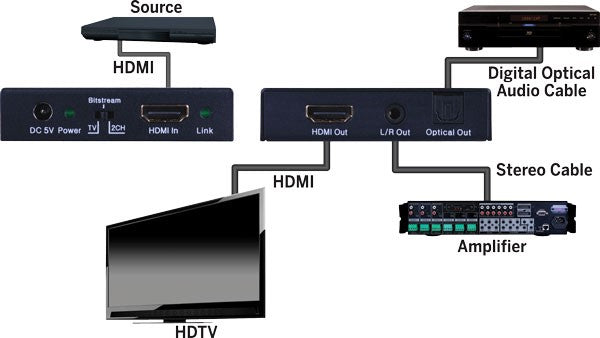

• Allows simultaneous output of HDMI audio- multi-channel optical (SPDIF)- and L/R analog audio in 2CH mode
• Optical audio supports LPCM 2CH- Dolby Digital 2/5.1CH- DTS 2/5.1CH
• Supports uncompressed audio LPCM (Linear Pulse Code Modulation)
• Supports compressed audio DTS Digital- Dolby Digital (DTS-HD and Dolby True HD)
• Power Supply: 5V DC- UL Listed

Package Contents:

Main unit (4K HDMI Audio Extractor)
5V DC Power Supply
User’s Manual
