Vertical Cable Cat6A Plenum Shielded 1000ft 165-500

Product Details

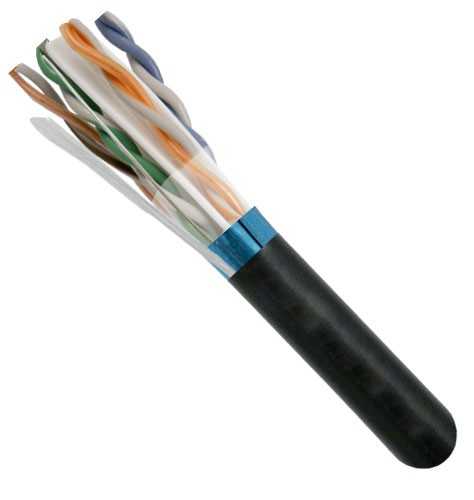

CAT6A Plenum Cable, 23 AWG, F/UTP (Shielded), Solid Bare Copper, Plenum-Rated, 1000 ft Wooden Spool.

Features

• 23 AWG Bare Copper Conductors
• Plenum Fire Safety Rating (CMP)
• Overall Foil-Shielded Twisted-Pair (F/UTP) Construction
• Easy-to-See Vivid-Color Conductor Insulation & Jacket
• Exceeds ANSI/TIA-568-C.2 Transmission Performance Specifications
• Supports PoE+ (Type 2) IEEE 802.3at (25.5W)
• Supports High-Speed Data Applications including Ethernet 10 Gigabit, 100 BASE TX, 100BaseVG AnyLan, 155ATM, 622ATM, NTSC/PAL, Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422
• ETL-Listed, RoHS-Compliant

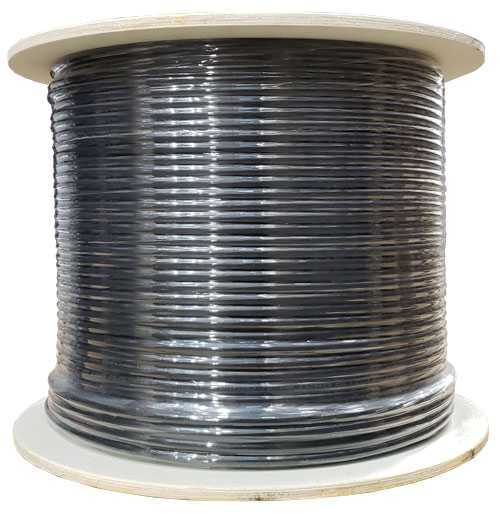

• Packaging: 1000 ft Wooden Spool – 15 in x 11.5 in, 48.4 lb

Downloads

Spec Sheet
