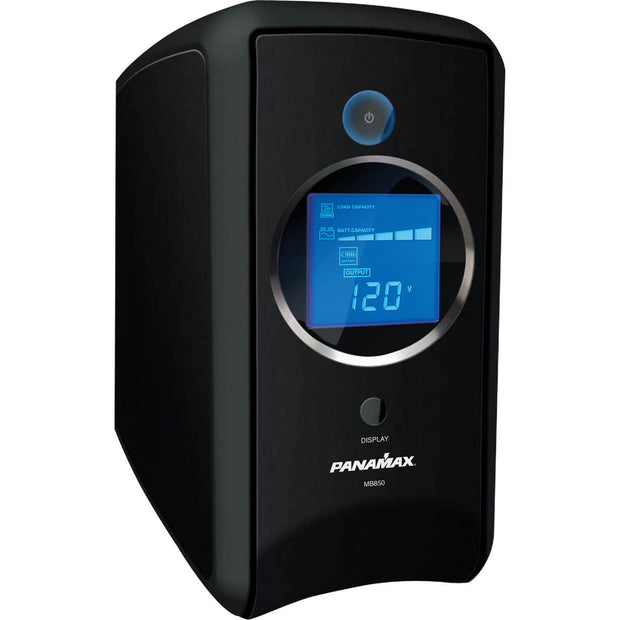

Product Details

During power disruptions the MB850 Battery Backup provides constant power to equipment, such as:

Lamp Based Display

Prevent expensive lamp burnout in lamp based displays (cooling fan can continue to properly cool down lamp).

DVR

Avoid loss of DVR recorded TV programming.

Gaming

Prevent loss of unsaved games during the saving/loading process.

HT System

Avoid the time and hassle rebooting your home theater system.

Features

5 Battery Powered and Surge Protected Outlets
- Provides continuous battery backup when power is interrupted.

4 Fulltime Surge Protected Outlets
- Provides complete surge protection for equipment not requiring battery backup.

USB/Serial Port To PC
- Allows home theater PC to communicate with UPS through USB or serial port.

1 Pair, In/Out Coax / Cable Sat Surge Protection

Wiring Fault Indicator Light
- LED illuminates when wiring problems exist.

Ethernet Protection Ports
- Phone / Modem / DSL / Ethernet protection (Combination Ethernet or phone line protection).

Resettable Circuit Breaker
- Provides overload protection.

Auto-Shutdown Software
- Panamax offers surge protection plus battery backup. The MB850 will safely shut down your home theater PC.

LCD Display Provides:
- Input Voltage Level
- Output Voltage Level
- AVR Status Meter
- Battery Capacity
- Estimated Runtime
- Load Level
- Output Power Frequency interrupted

Icon Indicators Includes:
- On Battery Mode
- Overload Condition
- Fault Condition

AVR
- Automatic Voltage Regulation stabilizes input voltage to an appropriate level for optimal equipment performance by completely eliminating brownouts and overvoltages

Specifications

General

Family: Shelf Mount

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 0

Outlet Descriptions

All 9 outlets are surge protected

Bank 1 has 5battery powered outlets

Rack Mountable: No

Rack Ears Included: No

Front Panel Meter(s): LCD Displays statuses and voltage level

Front Media Light(s): No

Control: Remote control through USB or serial port

Compliance: cULus

AC Power Cord: Captive power cord

Dimensions: 10.25″ L x 4.375″ W x 8.875″ H

Weight: 16 lbs.

Battery Backup

Output Frequency: 60 Hz

UPS Output Capacity: 850VA, 510W

Regulation Output Range: 120 Â± 5% Simulated Sine Wave

Transfer Time: 4ms

AC Protection

AC Protection Technology: Standard MOV based surge protection

Under-Voltage Shutoff: 90V

Over-Voltage Shutoff: 140V

Maximum Current Rating: 12 (Amps)

Filtration

Signal Line Protection: 1 LAN/Tel
1 Cable/Satellite

Shipping Info

Length: 9.4 (Inches)

Width: 6.4 (Inches)

Height: 6.7 (Inches)

Weight: 18.82 (Lbs)

Unit of Measure: Each

UPC: 050616008532

Master Pack Qty: 3
