Product Details

Home Theater Power Management

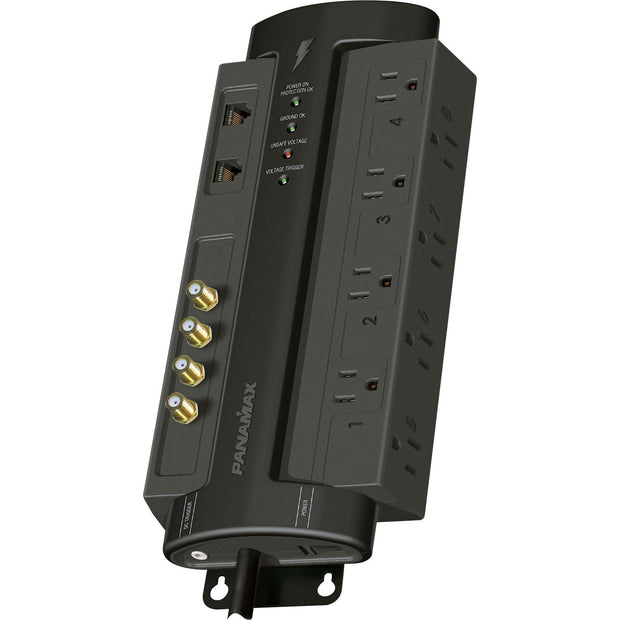

AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. M8-AV-PRO eliminates voltage irregularities & protects your AV system.

Reduces Cross-Contamination Between Components

The M8-AV-PRO is designed to provide noise isolation between the two isolated outlet banks so that any noise created by an A/V component in one bank cannot contaminate the power to the equipment that is plugged into the other outlet bank.

Monitors Incoming Line Voltage

Panamax’s patented AVM circuitry continuously monitors the incoming line voltage and disconnects your equipment in the event of an over voltage or undervoltage (brownout). Power is automatically reconnected when voltage returns to a safe level, eliminating service calls or system downtime

Improves Picture and Sound Quality

The M8-AV-PRO’s Power Cleaning and Premium Filtration eliminate common symptoms of contaminated power (including loss of detail, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

(Max 8 AV Pro – 8 AC; Coax and Tel; AVM, Line Filtration)

Features

Premium Filtration

Improves Picture and Sound. Provides clean power by filtering out noise common to household power.

Coax/Sat Protection

Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.

Telephone/LAN Line Protection

Protects equipment from electrical surges that travel over Telephone and network lines.

AVM (Automatic Voltage Monitoring)

Protects equipment against prolonged over/ under voltages by disconnecting the power and reconnecting it when safe power returns.

Surge Protection

Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment

12 Volt Trigger

Allows source equipment to activate or deactivate outlets 5-8 on the M8-AV-PRO.

8 Outlets

More outlets for all of your power needs

Hi Def Ready

Hi-Def Designed to work with your High Definition system.

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
UL991 Electronic Safety Circuit: Yes
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1875 Joules
Response Time: < 1n
Peak Impulse Current: 65,000 Amps
Patented Power Management Circuit: Yes

LAN Circuits
Wires Protected: Pins 1, 2, 3, & 6
Connectors: RJ-45 Shared with Telco
Connectors: Differential & Common Ground
Compatibility: 10/100bT
Clamping Level: 7V

Telco Protection
Wires Protected: 2 wire, 1 pair (4,5)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-45 Shared with LAN
Clamping Level: 260V
Capacitance: 30pf (approx.)

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range: 5MHz – 2 GHz
Connections: Female “F”, Gold Plated
Clamping Level: 75V
Bidirectional: Yes
