Product Details

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Signal Perfect™ Circuitry

Optimized phone line surge protection circuitry ensures a clean, clear signal. It features solid-state SIDACtor® and autor-resetting PTCR’s for maximum protection and reliability.

$5,000,000 Limited Connected Equipment Protection Warranty

Panamax will protect your equipment or we will repair or replace up to $5,000,000!

Lifetime Product Warranty

The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective unit.

Product Upgrade Offer

See policy for details on upgrade offer to replace damaged units

Features

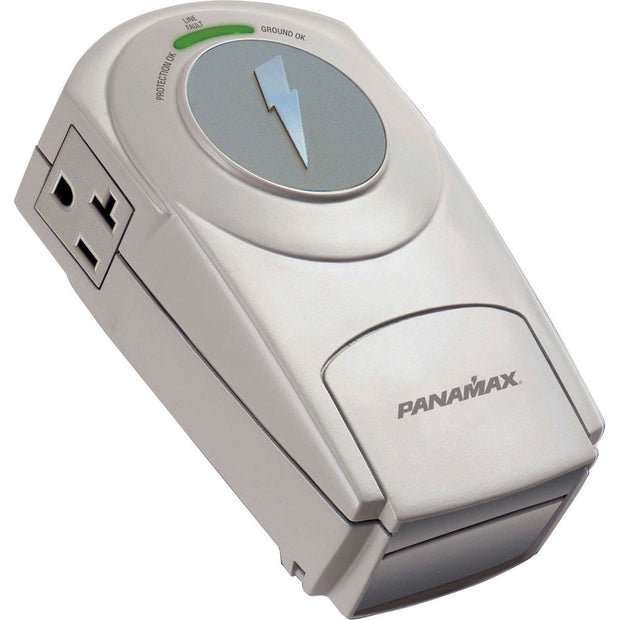

Two 20 Amp AC Outlets
Protect-or-Disconnect™ Circuitry
Convenient security feature; attach the protector to your equipment’s power cords.
Three diagnostic lights indicate wiring integrity and protection status.
Space-saving design plugs directly into wall outlet.
Convenient security feature; attach the protector to your equipment’s power cords.
Versatile outlet orientation accommodates the widest range of plug styles including transformers and right angle plugs

Specifications

AC Power

UL 1449 Suppression Rating	330V
Thermal Fusing	Yes
Single Pulse Energy Dissipation	1350 Joules
Response Time	<1 ns
Protection Modes	L-N, L-G, N-G
Protect or Disconnect™ Circuitry	Yes
Peak Impulse Current	52,000 A
Maximum Current Rating	20A (2400 W)

Line Voltage	120 VAC, 50/60 Hz
Initial Clamping Level	200V
EMI/RFI Noise Filtration	50 dB (100 kHz – 1 MHz)
Catastrophic Surge Circuit	Yes

General

Weight	.75 lb.
Dimensions	3.12 in. W X 5.5 in. D X 2 in. H

Agency Approvals & Warranty

UL® 1449 Rating	330V
Product Warranty	Lifetime
Lightning Protection	Yes
Connected Equipment Protection Policy	Up to $5,000,000

Downloads

User Manual

Datasheet
